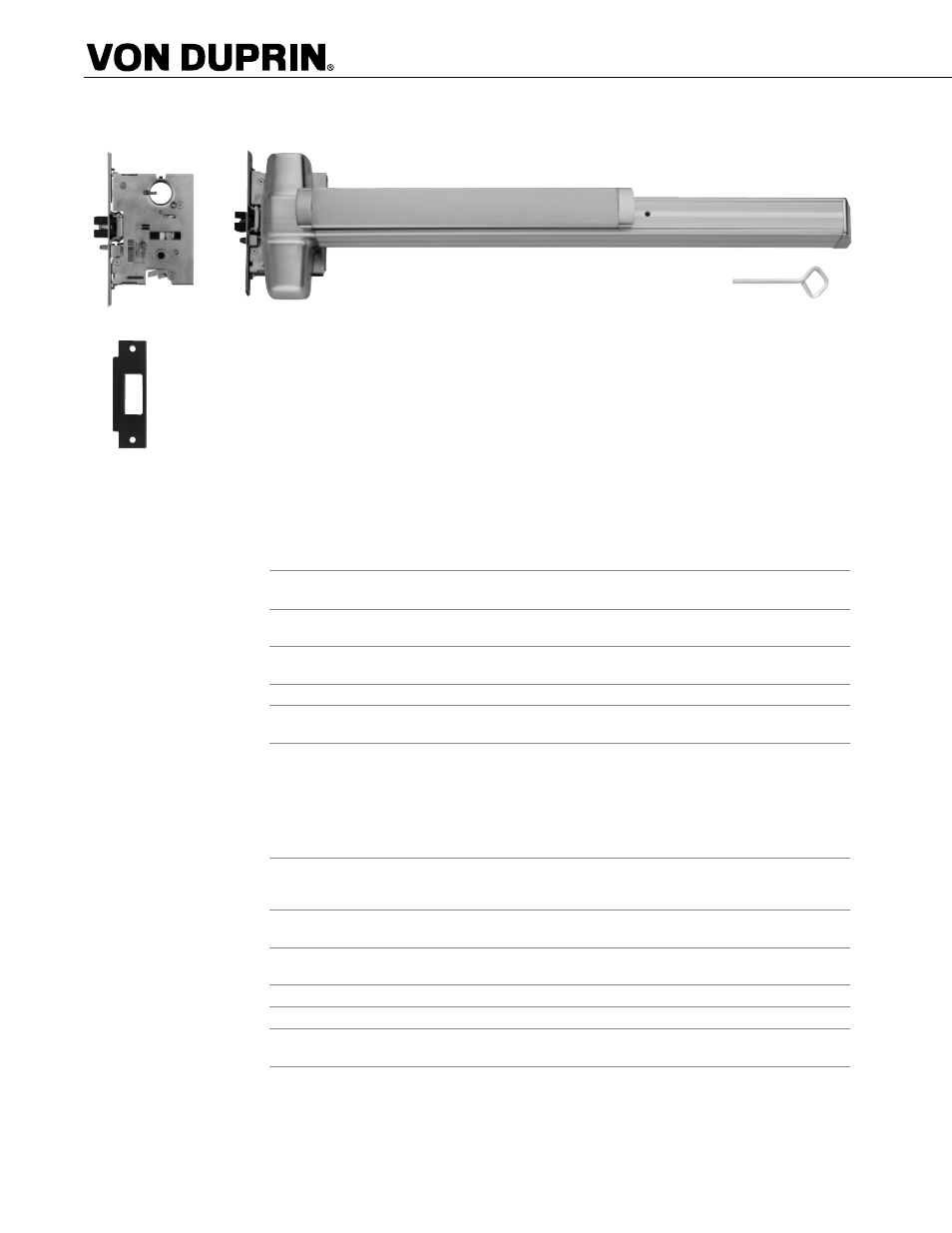

9875/9975 Mortise Lock Device

8

© 2004 Ingersoll-Rand. May be copied for use with specification submittal.

9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as
narrow as 4

³ ₄" (121mm). The 9875 device has a smooth mechanism case and the 9975 device has a grooved

case. The mortise lock device is non-handed except when the following device options are used: -2 (Double
Cylinder) or SS (Signal Switch). See Opposite page for available outside trim and device functions.

The 9875/9975 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 9875 device only. See page 52 for component finishes and the inside cover for
finish chips.

The 7500 Mortise lock is equipped with a

³ ₄" (19mm) anti-friction latch bolt which is field reversible without

removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an
adjustable bevel.

575 Strike

Specifications

Device Functions

Device ships EO/DT/NL. Field selectable. For TP,K,or L adjust NL drive
screw in mortise lock

Device Lengths

3’

2’4" to 3’ (711mm to 914 mm) Door Size

4’

2’10" to 4’ (864 mm to 1219 mm) Door Size

Strikes

575 – Dull Black
Optional Strikes – see page 39

Dogging Feature

Hex key dogging standard

Dogging Options

CD

Cylinder Dogging

see page 48

LD

Less Dogging

see page 48

Electric Option

RX

Pushpad Monitor Switch

see page 42

RX2 Double Pushpad Monitor Switch

see page 42

E

Electric Locking & Unlocking

see page 44

EL

Electric Latch Retraction

see page 43

SS

Signal Switch

see page 43

CX

Chexit Delayed Exit

see page 45

ALK Alarm Exit Kit

see page 42

Miscellaneous Options

PN

Pneumatic Latch Retraction

see page 48

-2

Double Cylinder

see page 48

GBK Glass Bead Kit

see page 49

Fasteners &

Includes 1

³ ₄" (19mm) – 2 ¹ ₄" (57mm) Wood & Metal Doors

Sex Bolts (SNB)

Optional SNB available for device, see next page for quantities

Device Centerline from

39

⁵ ₈" (1006 mm)

Finished Floor

Center Case Dimensions

8" x 2

³ ₄" x 2 ³ ₈" (203mm x 70mm x 60mm)

Mechanism Case Dimensions

2

¹ ₄" x 2 ¹ ₄" (57mm x 57mm)

Projection

Pushbar Neutral – 3

¹³ ₁₆" (97 mm)

Pushbar Depressed – 3

¹ ₁₆" (78 mm)

See page 53 for How to Order specification
