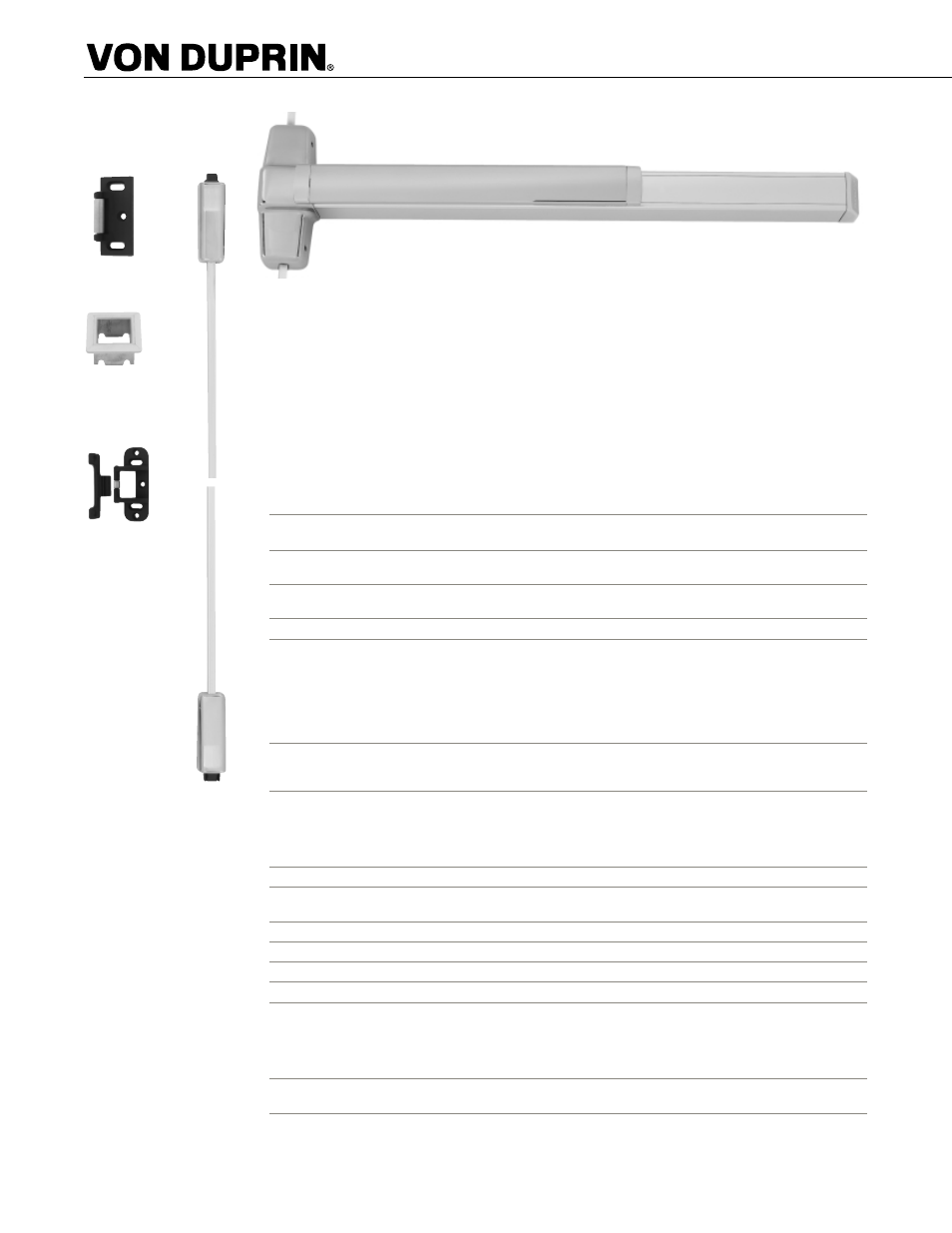

9827-F/9927-F Surface Mounted Vertical Rod Fire Device

14

© 2004 Ingersoll-Rand. May be copied for use with specification submittal.

9827-F/9927-F fire exit surface mounted vertical rod device pairs of doors up to 8´ x 10´ (2438mm x
3048mm)
, UL listed for Fire Exit Hardware.See page 41 for detailed information on UL listed fire exit
hardware label and door opening size information.
Devices are ANSI A156.3 – 2001 Grade 1. The 9827-F device has
a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except
when the following device options are used: SS (Signal Switch). See Opposite page for available outside trim and device
functions.

The 9827-F/9927-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN, 315AN and
US32D for the 9827-F device only. See page 52 for component finishes and the inside cover for finish chips.

Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts
of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad
composite fire doors. Refer to page 49

299F

Top Strike

Top Latch

Bottom Latch

304L

Bottom Strike

499F

Top Strike - LBR

Specifications

Device Functions

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
screw from device

Device Lengths

3’

2’4" to 3’ (711mm to 914 mm) Door Size

4’

2’10" to 4’ (864 mm to 1219 mm) Door Size

Strikes

Top – 299F (499F LBR) – Dull Black, Bottom – 304L - Unfinished
Optional Strikes – see page 39

Dogging Feature

No Mechanical Dogging, EL option available

Electric Options

LX

Latchbolt Monitor Switch

see page 42

RX

Pushpad Monitor Switch

see page 42

RX2 Double Pushpad Monitor Switch

see page 42

EL

Electric Latch Retraction

see page 43

SS

Signal Switch

see page 43

CX

Chexit Delayed Exit

see page 45

ALK Alarm Exit Kit

see page 42

Miscellaneous Options

PN

Pneumatic Latch Retraction

see page 48

LBR Less Bottom Rod

see page 49

GBK Glass Bead Kit

see page 49

Fasteners &

Includes 1

³ ₄" (19mm) – 2 ¹ ₄" (57mm) Wood & Metal Doors

Sex Bolts (SNB)

SNB furnished for top & bottom latches
Optional SNB available for device, see next page for quantities
Optional SLM Blocking Pkg for wood doors with SLM blocking
SNB required for wood doors, unless SLM Blocking Pkg specified

Latch Bolt

Deadlocking Anti-friction Top & Bottom Bolt,

⁵ ₈ " (16mm) throw

Device Centerline from

39

⁵ ₈" (1006 mm)

Finished Floor

Door Undercut

¹ ₄" (7mm)

Center Case Dimensions

8" x 2

³ ₄" x 2 ³ ₈" (203mm x 70mm x 60mm)

Mechanism Case Dimensions

2

¹ ₄" x 2 ¹ ₄" (57mm x 57mm)

Top & Bottom Latch Case

4

¹ ₂" x 2 ¹ ₈" x 1 ¹ ₂" (114mm x 54mm x 38mm)

Vertical Rods

¹ ₂" square tubing, standard rods accommodate 7’ (2134mm) door

Top rod length is 34

¹⁵ ₁₆" (887mm)

Bottom rod length is 31

¹ ₄" (794mm)

Extension rods available, 1’ (205mm) or 3’ (914mm) for doors over 7’
One piece top rod available for 8’ (2438mm) – 10’ (3048mm) door

Projection

Pushbar Neutral – 3

¹³ ₁₆" (97 mm)

Pushbar Depressed – 3

¹ ₁₆" (78 mm)

See page 53 for How to Order specification
