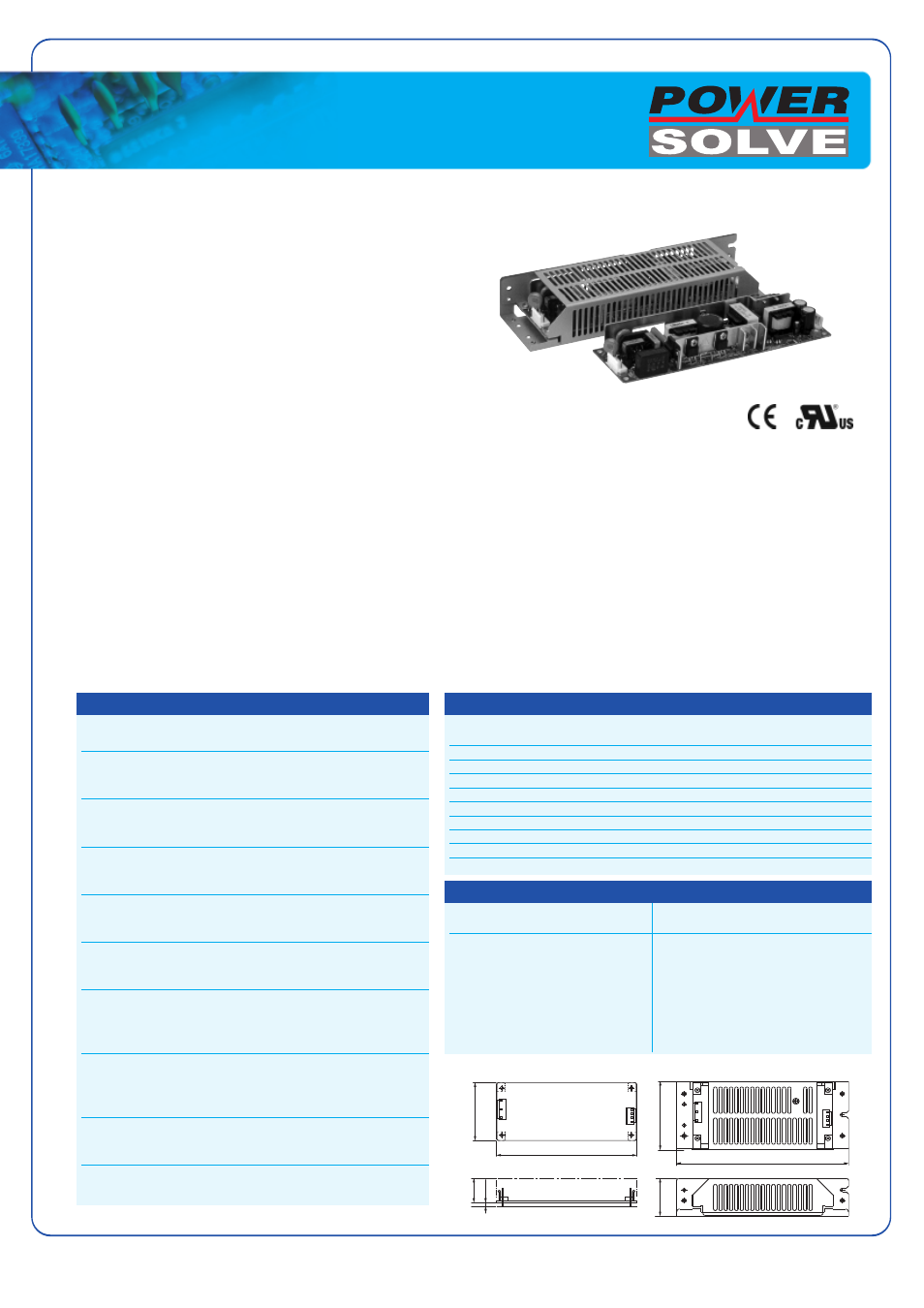

Powersolve TOL Series User Manual
Ac/dc power modules, Models, Dimensions
Input voltage range:
85–264 VAC, 50/60 Hz
Line regulation:
±0.5% max.
Load regulation:
±0.8% max.
Outputvoltage adjustment:
±10% of Vout nom. with potentiometer
Ripple & Noise:
5 VDC output models: <100 mVpk-pk (20 MHz BW)
12/24 VDC output models: <180 mVpk-pk (20 MHz BW)
48 VDC output models: <300 mVpk-pk (20 MHz BW)
EMI suppression:
EN 55011 class B, EN 55022, class B and FCC, level B, EN 61000-3-2
EMC immunity:
EN61000-6-1
Output current limitation:
at 105–140% of Inom. (except for F-models), constant current
Over voltage protection:
at 115–135% of Vout nom.
Efficiency:
75% typ.
Operating temperature:
–10°C … +60°C above 50°C derating 2.5%/°C
Safety standards / approvals:
cUL/UL 60950, EN 60950
Connection:
Pin connector (screw terminal block for TOL 300 models)
Options:
– Chassis & cover kit (stainless steel)
– Mating connectors with pre-wired flying leads of 500 mm length
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order code
Output power
Output voltage
Output current
max.
max.
TOL 10-05
5 VDC
2 A
TOL 10-12
10 Watt
12 VDC
0.9 A
TOL 10-24
24 VDC
0.5 A
TOL 15-05
5 VDC
3 A
TOL 15-12
15 Watt
12 VDC
1.3 A
TOL 15-24
24 VDC
0.7 A
TOL 30-05
5 VDC
6 A
TOL 30-12
30 Watt
12 VDC
2.5 A
TOL 30-24
24 VDC
1.3 A
TOL 50-05
5 VDC
10 A
TOL 50-12
50 Watt
12 VDC
4.3 A
TOL 50-24F
24 VDC
2.2 A (3.0 A)*
TOL 75-05
5 VDC
15 A
TOL 75-12
75 Watt
12 VDC
6.3 A
TOL 75-24F
24 VDC
3.2 A (4.5 A)*
TOL 100-05
5 VDC
20 A
TOL 100-12
100 Watt
12 VDC
8.5 A
TOL 100-24F
24 VDC
4.5 A (6.3 A)*
TOL 100-48
48 VDC
2.1 A
TOL 150-05
5 VDC
30 A
TOL 150-12
150 Watt
12 VDC
13 A
TOL 150-24F
24 VDC
6.5 A (9.1 A)*
TOL 150-48
48 VDC
3.3 A
TOL 300-12
12 VDC
27 A
TOL 300-24
300 Watt
24 VDC
14 A
TOL 300-48
48 VDC
6.3 A
* Peak current for max. 10 sec.
=
Compact Open Frame Design
=
Optional with Chassis and Cover
=
Pin Connector Termination
=
Universal Input 85–264 VAC
=
Output Voltage adjustable
=
EMI meets EN 55022, Class B and FCC, Level B
=
Compliance to EN 61000-3-2 (PFHC)
=
Short Circuit and Overvoltage Protection
=
Highest Industrial Quality Standard
AC/DC Power Modules
TOL Series, 10 – 300 Watt
Models
W1
L1
H1
3 max.
W2
L2
H2
(0.12 max.)
() = Inches
Open Frame (Standard)With Chassis and Cover (Optional Accessory)
Type
Length
Width
Height
Length
Width
Height
L1
B1
H1
L2
B2
H2
TOL 10
105 (4.13)
50 (1.97)
18 (0.71)
125 (4.92)
57 (2.24)
32 (1.26)
TOL 15
125 (4.92)
50 (1.97)
18 (0.71)
145 (4.92)
57 (2.24)
32 (1.26)
TOL 30
133 (5.24)
55 (2.17)
23 (0.91)
163 (6.42)
65 (2.56)
36 (1.42)
TOL 50
195 (7.68)
55 (2.17)
23 (0.91)
225 (8.86)
65 (2.56)
36 (1.42)
TOL 75
222 (8.74)
55 (2.17)
29 (1.14)
252 (9.92)
65 (2.56)
42 (1.65)
TOL 100
222 (8.74)
62 (2.44)
32 (1.26)
252 (9.92)
72 (2.83)
45 (1.77)
TOL 150
222 (8.74)
75 (2.95)
37 (1.46)
252 (9.92)
85 (3.35)
51 (2.00)
TOL 300
255 (10.04) 108 (4.25)
47 (1.85)
285 (11.22)
118 (4.65)
61 (2.40)
Dimensions
Mating connectors with
Chassis / cover kit
pre-wired flying leads (500 mm)
TOL-C31
input cable for all models
TOL 10-MC
for TOL 10 series
TOL-C41
TOL 10/15 output cable
TOL 15-MC
for TOL 15 series
TOL-C42
TOL 30/50 output cable
TOL 30-MC
for TOL 30 series
TOL-C61
TOL 75 output cable
TOL 50-MC
for TOL 50 series
TOL-C62
TOL 150 output cable+
TOL 75-MC
for TOL 75 series
TOL-C71
TOL 150 output cable–
TOL 100-MC
for TOL 100 series
TOL-C81
TOL 100 output cable
TOL 150-MC
for TOL 150 series
TOL 300-MC
for TOL 300 series
Accessories
