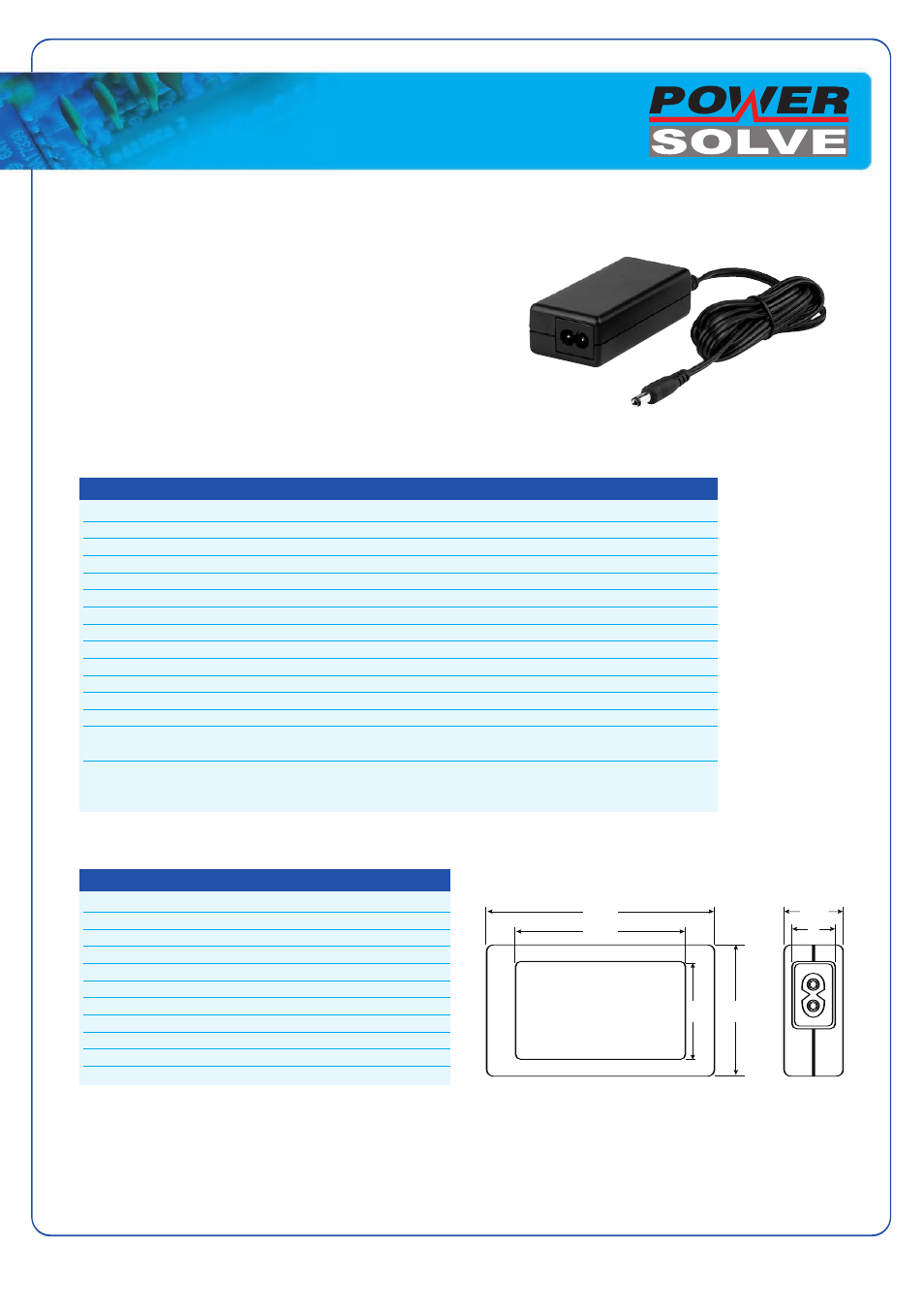

Desk Top Power Supplies
PSD30C, 45C, 48C, 50C, 60C & 65C Series
30-65 Watts Switch Mode
Universal AC Input
The NEW PSD series is a range of 30-65 Watt switch mode desk
top power supplies in a very compact enclosure measuring only
102.25mmx 45mm x 35.25mm.
They are ideal for applications where a small low cost external
power supply is required for powering equipment such as LCD
monitors, Notebook Computers, Printers, POS, Modems etc.
AC Input:
90–264 VAC, 47-63Hz
Input Current:
Max 1.7A @ 90V AC input
Input Frequency:
47–63Hz
Efficiency:
70% minimum, at full load with 115V I/P
DC Outputs:
See table
Output Ripple & Noise:
50mV or 1% whichever is greater
Protection:
Overload and Short Circuit
Hold Up Time:
8 ms minimum
Operating Temperature:
0 to 40°C Operating Ambient
Storage Temperature:
–40 to +85°C
Humidity:
10–90% non-condensing (operating)
Vibration & Shock:
2G at 20–30Hz, 50G for 20mS in all 3 orthogonal planes.
EMI:
EN55022’B’ & FCC’B’
Safety: UL/cUL/TUV/GS(EN60950),
CE
Class II insulation
Output Connector:
Standard stock items - 02 version with 2.5 x 5.5 x 9.5 mm barrel connector.
Other connectors available - consult sales office.
Specification
Model
Output V
Output I
PSD30C-05-02
5 V
6.0A
PSD45C-09-02
9 V
5.0A
PSD45C-10-02
10 V
4.5A
PSD48C-12-02
12 V
4.0A
PSD45C-15-02
15 V
3.0A
PSD50C-16-02
16 V
3.3A
PSD60C-18-02
18 V
3.2A
PSD60C-19-02
19 V
3.0A
PSD65C-24-02
24 V
2.7A
Output Voltage/Current Rating Chart - PSD Series
102.25
35.25
19
32
45
72
MECHANICAL DIMENSIONS (mm)
