Powersolve HSEUreg07201 Series - Manual (Page 2)

Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
www.powersolve.co.uk [email protected] p.2/5 03.12B
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

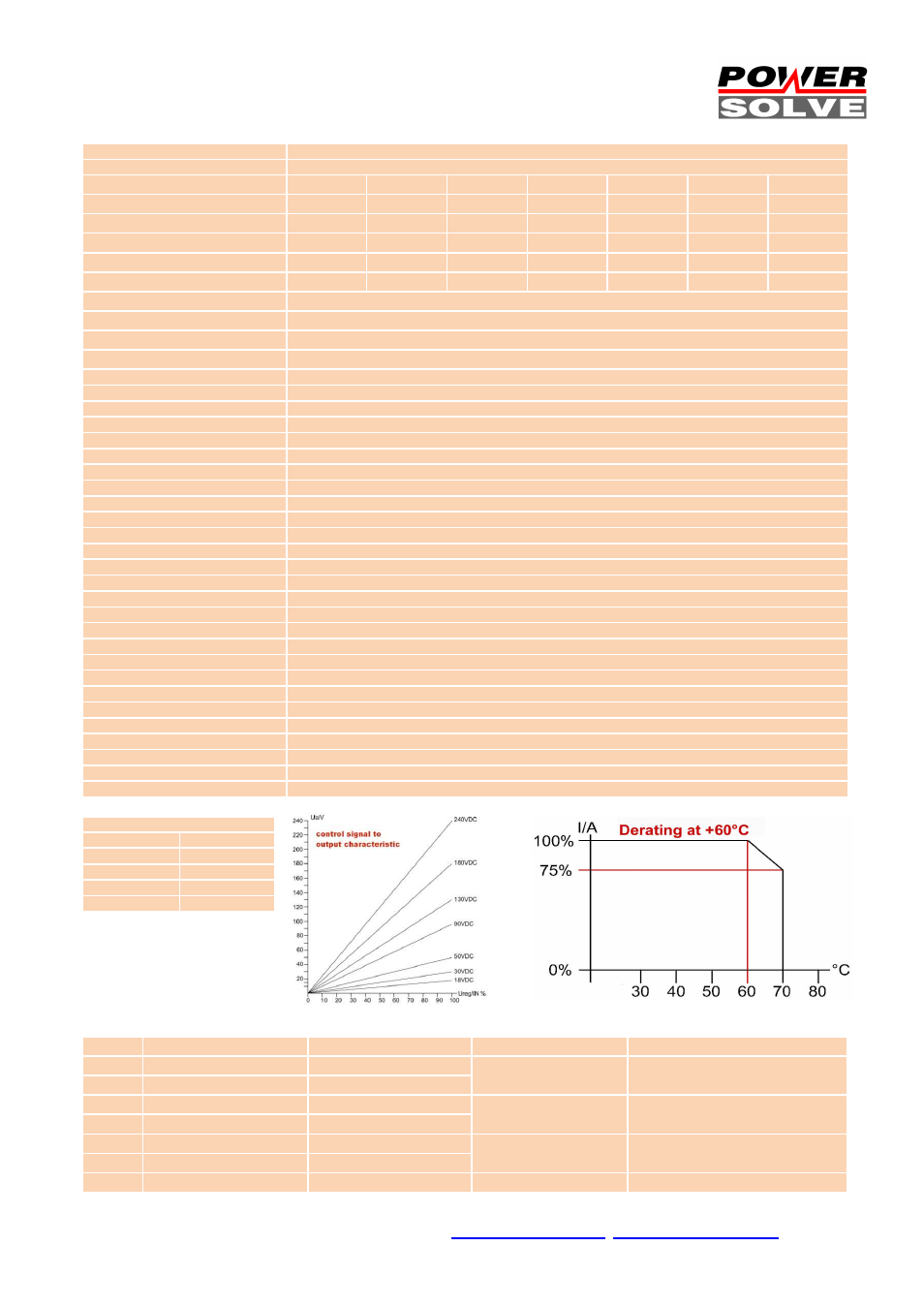

AC Input 90..132Vac / 184..265Vac , 47…63Hz , 250…375Vdc
AC Input Rating 115Vac<13.2A 230Vac<6.5A 250Vdc<3.6A 375Vdc<2.4A
Rated DC Voltage 0...15V 0...30V 0...50V 0...90V 0...130V 0...180V 0...240V
Overvoltage Protection 18Vdc 35Vdc 59Vdc 105Vdc 150Vdc 210Vdc 280V
Rated DC Current 35A 24A 15A 8.0A 5.5A 4.0A 3.0A
Power Boost -25...+60°C <1min. 28.5A 26.4A 16.5A 8.8A 6.1A 4.4A 3.3A
Max. DC Current +70°C 26.3A 18A 11.3A 6.0A 4.1A 3.0A 2.2A
Ripple Peak 230Vac 20MHz 40mVpp 50mVpp 100mVpp 150mVpp 200mVpp 300mVpp 400mVpp
Sense function Compensation 2V per lead load, protective electrical separation ≤ 60Vdc
Remote Shutdown protective electrical separation ≤ 60Vdc
Analogue Interface see table, 4-20mA available option, protective electrical separation ≤ 60Vdc, work.res.=500 Ω
Pmax 720W continuous
Derating +60°C...+70°C 2.5%/°C
Accurancy < ± 1.5%
Latency Interface t.b.d.
Load regulation < ± 0.2% 0-100%
Response Load Change <1ms 10-100%, 100-10%
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time > 40ms 230Vac
Inrush Current < 162A (230Vac)
Softstart 100ms typical
Cooling Natural convection
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
EMI EN55022 class B
EMS EN61000-6-2,3
Safety cUL60950, EN60950-1
Safety class 1(A) VDE0805, VDE0100
Isolation Path > 8mm
Input / Output Galvanic insulated
Meantime By Failure (MTBF) 400000h (IEC61709)
Dimensions (HxWxD) 130x200x114,5mm
Weight 2900g
Screw Terminals (In/Out) AWG20...AWG6 , 0.5...16mm² (76A @ 40°C)
Interface
Progamme [V] 0...10Vdc
Progamme [A] 0...20mA
Progamme [A] 4...20mA ¹)
Shutdown
external
Sensing 2V lead load
¹) option
Ordering Information:
Output Type (DIN-Rail standard) Part Number Option Part Number
0...18V HSEUreg07201.18T 304.1052.001CA Backplate kit
(wallmount) 220.1002.001CA
0...30V HSEUreg07201.30T 304.1052.002CA
0...50V HSEUreg07201.50T 304.1052.003CA ADTW201
DC-repeater
304.1090.001CA
0...90V HSEUreg07201.90T 304.1052.004CA
0...130V HSEUreg07201.130T 304.1052.005CA 4..20mA option
Ad 420 to the type number example:
HSEUreg04801.15T420
0...180V HSEUreg07201.180T 304.1052.006CA
0...240V HSEUreg07201.240T 304.1052.007CA Screw terminal plug 3520037 2pol. LS5,08 (package=10pcs)
