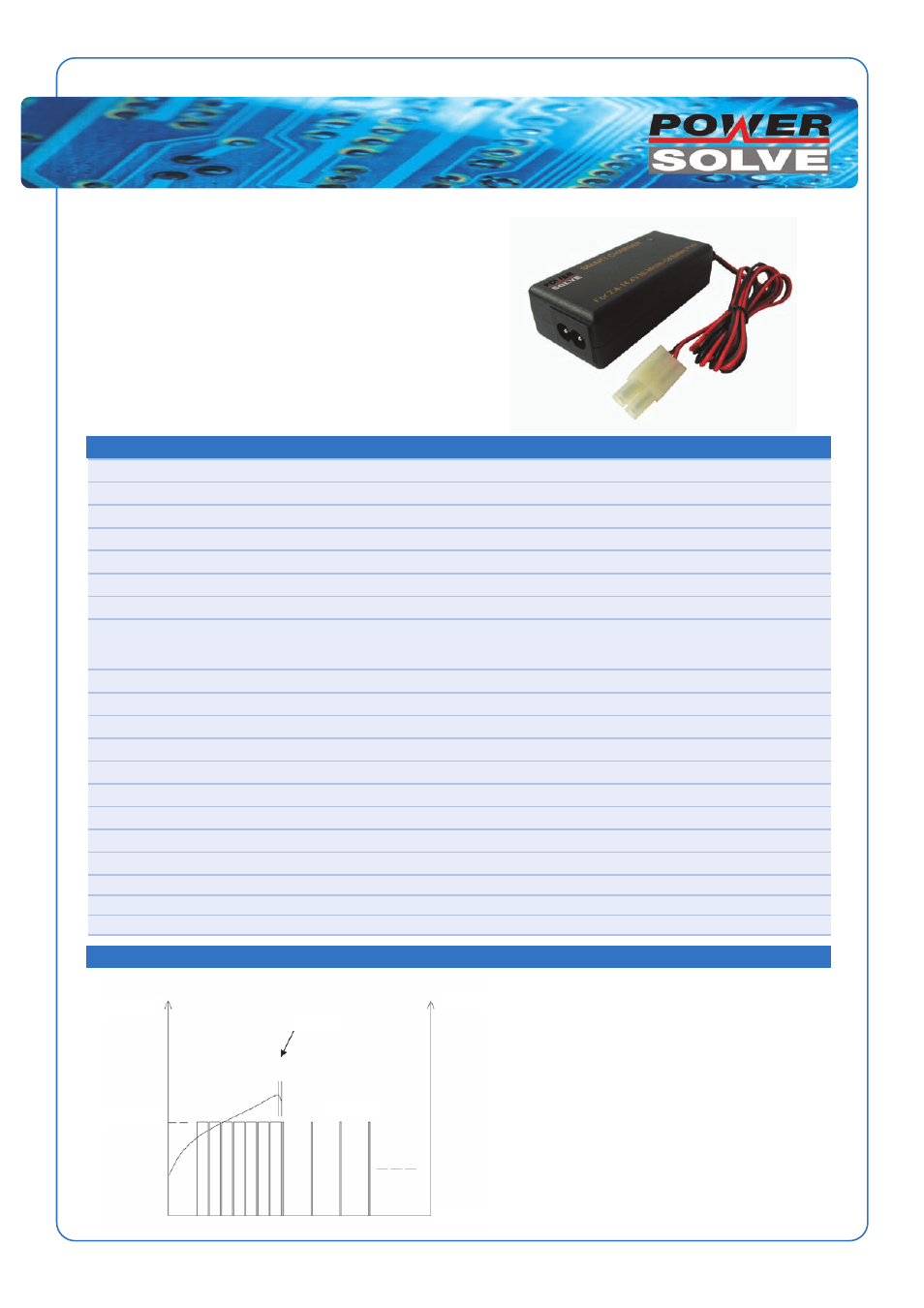

Powersolve PSCH15 Smart Charger - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
Universal Battery Charger
PSCH15
NiMH/NiCD Smart Charger
Features
• Universal 90-264VAC Input
• IEC320 C8 2 pin AC Input Connector
• Auto detect output can charge 2 to12 NiMH or NiCD cells in series
• Automatic cut off when batteries fully charged
• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’
• Compact Desk Top Plastic Enclosure
• Optional DC Output Connectors
Electrical Specification
INPUT
Input Voltage 90-264VAC 1A max
Input Frequency 47-63Hz
Safety Ground Leakage Current <0.5mA
OUTPUT
Output Voltage Varies to charge 2.4V to 14.4V DC battery pack
Charging Current 500mA to 1A
LED Charge Status Indicator LED flashes Red then Green twice after power on then switches off in standby
LED is Red when charging and turns Green when battery fully charged.
LED will flash on and off RED for error status
Over Voltage Protection Sense level 18V, OVP at 24V max
Short Circuit Protection Short circuit with auto recovery
Reverse Polarity Protection Reverse polarity of battery on output will not damage charger
Efficiency 75% minimum at full load and 115VAC input
ENVIRONMENTAL
Operating Temperature 0 to 40ºC, ambient
Storage Temperature -40ºC to +70ºC
Relative Humidity 20-85% max operating
SAFETY & EMC
Safety
UL/cUL1310 Class 2, EN60335-2-29:2004, EN60335-1, CE
EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’
MECHANICAL UL94V-1 plastic enclosure, dimensions 96 x 44 x 30mm, output cable 1.2 metre
Charge Curve
This charger can charge between 2 and 12 NiMH or NiCd
cells connected in series and will detect and provide the
correct output voltage and current to suit.
End charge is by -Δ V (about 5mV for each cell) detection,
after -Δ V. It will turn to trickle-off charge, it’s charger
current is fast charging current of 1/20.
Warning: This charger should only be used to charge
NiMH or NiCD batteries with a capacity of more than
1000mHA
Charge
Current (A)
1.0A
-ΔV
D=1/20
Voltage (V)
Time
