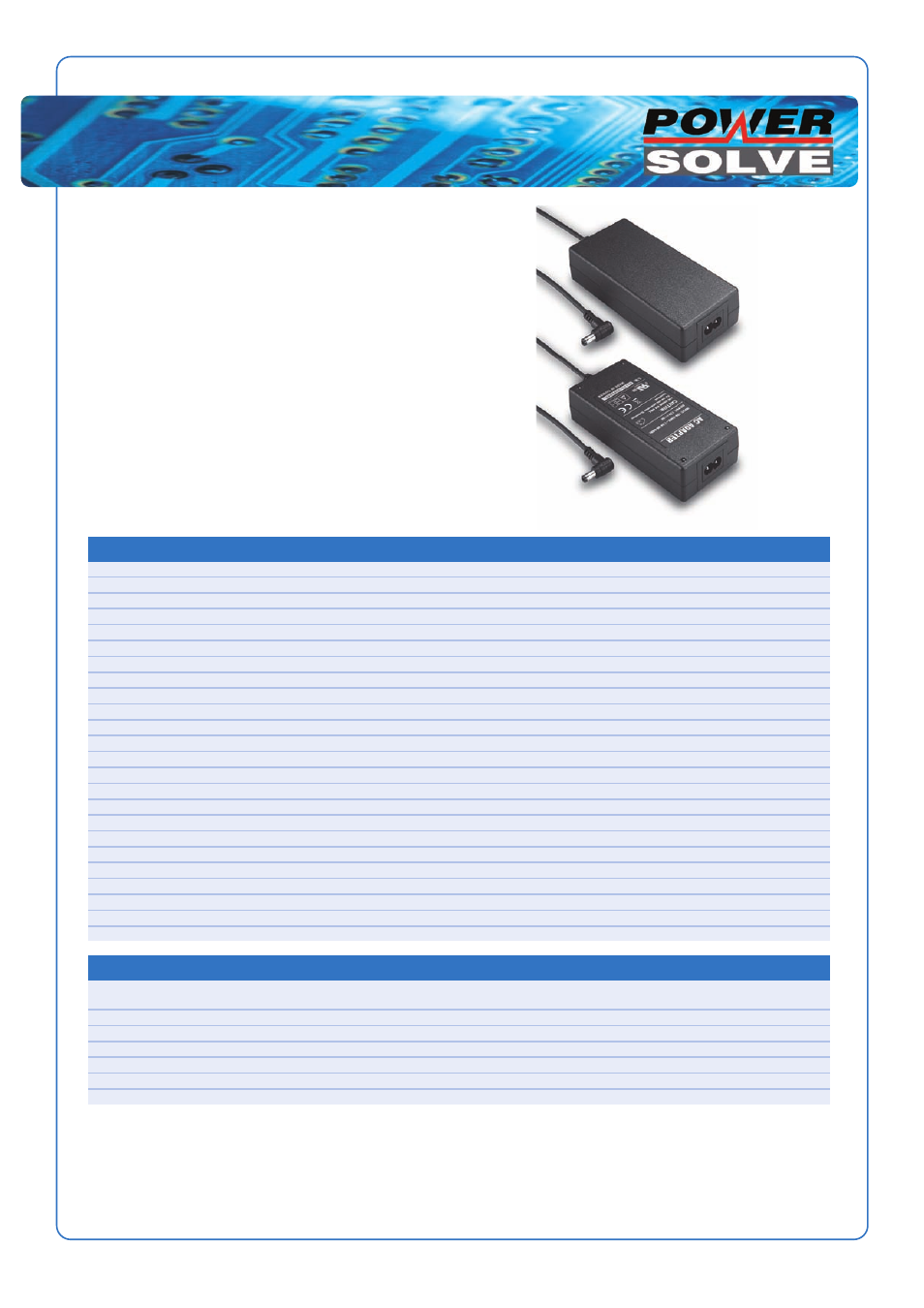

Powersolve PS60ME Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Medical Desk Top Power Supplies
PS60ME Series
30-60 Watt Switch Mode
Universal AC Input
INPUT
Input Voltage Range
90 - 264Vac
Frequency 47 - 63Hz
Inrush Current 80A max. @ 240Vac
Conducted EMI CISPR/FCC Class B
Isolation - Input/Output 5,656VDC
Leakage Current 0.1mA max.
OUTPUT
Hold-up Time
8mS typ. @ 115Vac
Short Circuit Protection Continuous (Auto Recovery)
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range
0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals
EN60601-1
Dimensions 132.0 x 58.0 x 30.5 mm
5.197 x 2.283 x 1.201 inches
Weight 345g
AC Inlet IEC320/C8
Electrical Specification
Typical at 25°C, nominal line and 75% load unless otherwise stated.
Features
• Universal Input Range 90-264VAC
• Continuous Short Circuit Protection
• Over Voltage Protection
• Meets EN60601-1 & EN55011 Class B
• CEC Level IV Compliant (Output cable length ≤1800mm)
(PS60ME050 Non-compliant)
(PS60ME120: Output cable ≤1200mm, 16AWG)
• Optional Output Connectors
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT RIPPLE & VOLTAGE LINE LOAD % EFF.
VOLTAGE CURRENT NOISE SETPOINT REG. REG.
PS60ME050 5V 6A 50mV pk-pk ±4% ±1% ±6% 71%
PS60ME120 12V 5A 120mV pk-pk ±2% ±1% ±5% 83%
PS60ME150 15V 4A 150mV pk-pk ±2% ±1% ±3% 84%
PS60ME180 18V 3.33A 180mV pk-pk ±2% ±1% ±2% 84%
PS60ME190 19V 3.15A 190mV pk-pk ±2% ±1% ±2% 85%
PS60ME240 24V 2.5A 240mV pk-pk ±2% ±1% ±2% 85%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
