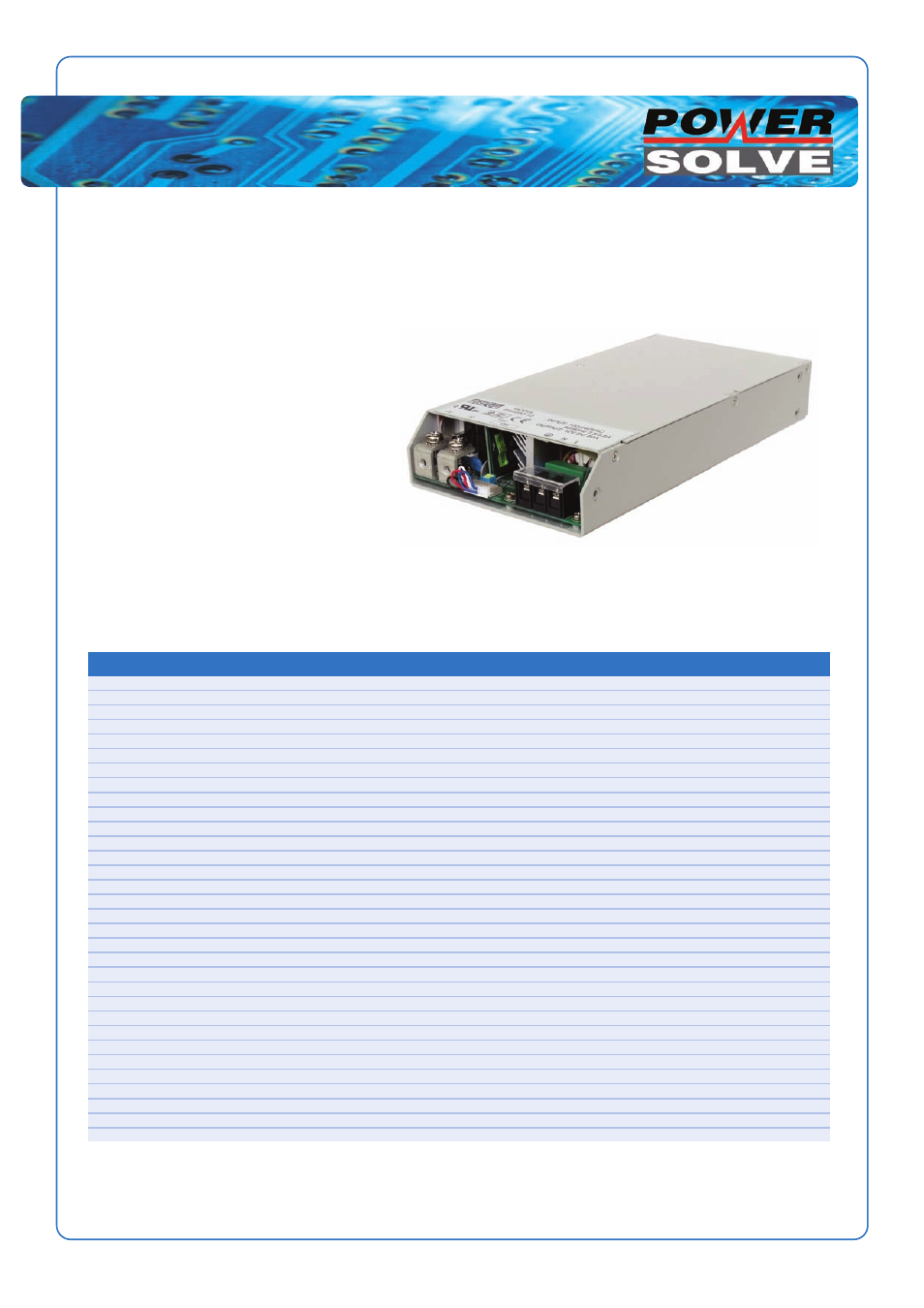

Powersolve PAE800 Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Converter
Input Voltage 90-264VAC full range, 47-63Hz / 127-370VDC. Below 100VAC, derate load linearly to 90% at 90VAC.
Power Factor 0.95 at 230VAC / 0.98 at 115VAC at full load
AC Input Current (typ.) 9.3A at 100VAC / 4.7A at 230VAC
Inrush Current 30A at 115VAC / 60A at 230VAC
Leakage Current <1mA at 240VAC
Output Voltage See Table
Output Current See Table
Voltage Tolerance ±2%
Voltage Adjust Range ±5.0% typical adjustment by potentiometer
Overload Protection >105% of rated output power. Protection type: Constant current limiting
Overvoltage Protection Variable OVP, 125% ±7% of Vout. Output latches off, recycle AC input to recover or inhibit
Over Temperature Protection Shuts down output, recovers automatically (85°C ±5°C detect on heatsink on secondary side)
Auxiliary Power +5V/0.5A or +8V/0.3A auxiliary output selected by user
Remote ON/OFF Control External switch or NPN transistor to turn on/off
Power OK Signal Open drain signal low when PSU turns on. Max. sink current 20mA, max drain voltage 40V
Output Voltage Programming Adjustment of output voltage between 0-105% of rated output
Output Current Programming Adjustment of output current between 0-105% of rated output
Operating Temperature Range -20°C to +60°C. Above 50°C, derate linearly to 60% load at 60°C
Operating Humidity 20-90% RH non-condensing
Storage Temperature Range -40°C to +85°C
Storage Humidity 10-95% RH non-condensing
Temperature Coefficient ±0.02%/°C (0-50°C)
Vibration Compliance to IEC68-2-6, IEC68-2-64
Safety Standards UL60950-1 2nd edition, TUV EN60950-1: 2006+A11 approved
Withstand Voltage I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC
EMI Conduction & Radiation EN55022: 2006+A1: 2007 Class B, EN61204-3: 2000, EN61000-6-3: 2007
Harmonic Current EN61000-3-2: 2006+A2: 2009 Class A, EN61000-3-3 : 2008
EMS Immunity EN55024 : 1998+A1: 2001+A2 : 2003 light industry level criteria A, EN61204-3: 2000, EN61000-6-1: 2007
Cooling Internal fan controlled by power rating & temperature, allow 50mm clearance at each end for airflow
Dimensions 249(L) x 127(W) x 41(H) mm
Weight 1.7Kg
Electrical Specification
Notes:
1. All parameters NOT specifically mentioned are measured at 230Vac input, rated load and 25°C ambient temperature
2. Ripple and noise are measured at 20MHz bandwidth by using a 12” twisted pair wire terminated with a 0.1µF ceramic & 47µF electrolytic capacitors across the output
3. Derating is required at low input voltages. Below 100Vac, derate linearly to 90% load at 90Vac
4. When parallel connected, only one unit may operate if the total output load is less than 5% of rated load
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC Directives
PAE800 Series
800W Active PFC
Single Output
Features
• Universal AC Input with active PFC
• Programmable Output Voltage (0%-105%)
• Programmable Output Current (0%-105%)
• High Efficiency up to 93%
• +5V/0.5A or +8V/0.3A Auxiliary Output
• Intelligent LED Indicators
• 1U profile, High Power Density
• Forced current sharing for parallel operation
• Power OK signal (Power good, logic low)
• Remote ON/OFF, Remote Sense function
• OVP, OLP, OTP, SCP, Fan Failure Protections
• Constant Current Limiting
• Optional RS232 Function
• Built-in I 2 C Serial Data Bus
