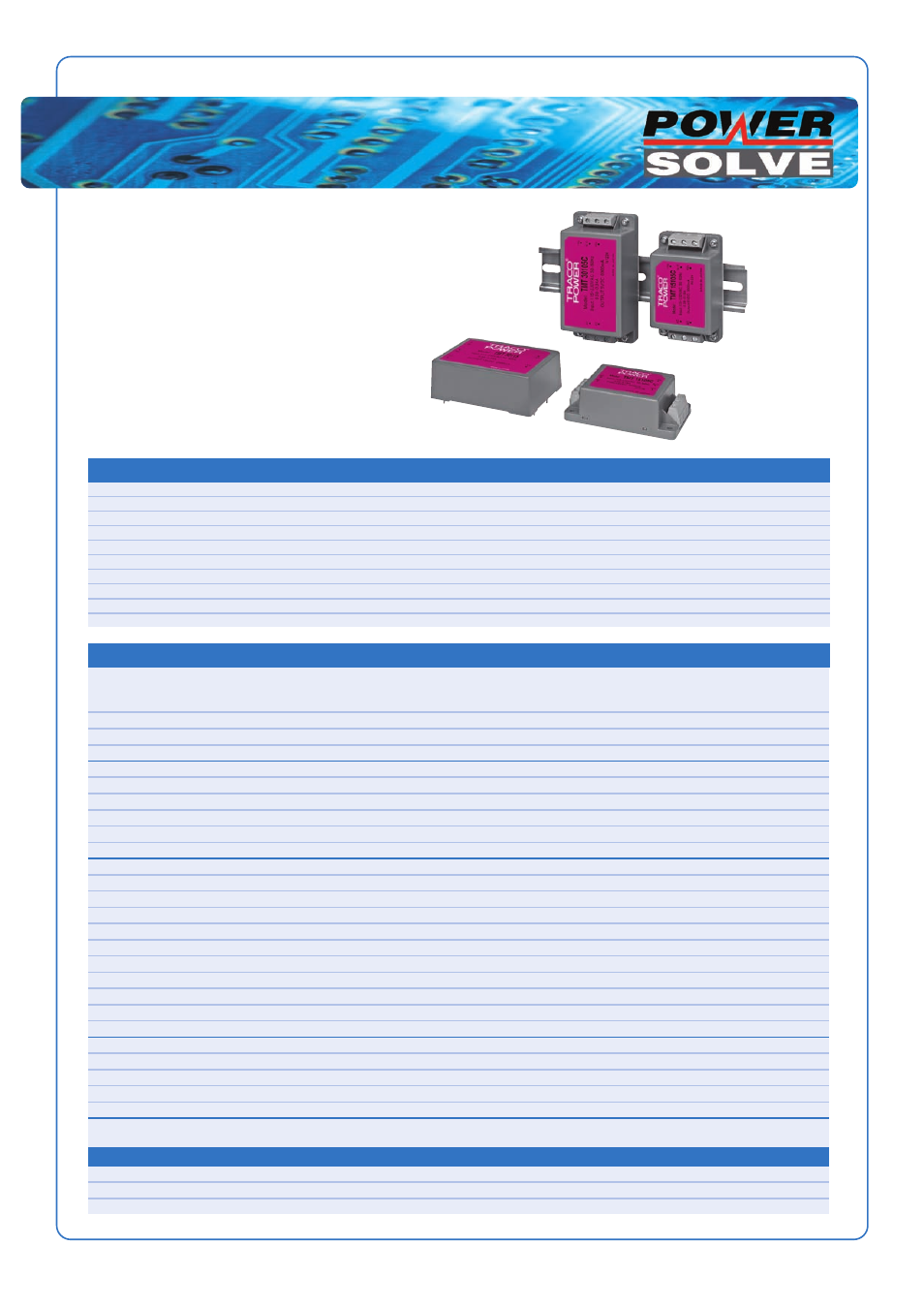

AC-DC Power Modules
TMT Series, 10 - 50 Watt
Electrical Specification
Input voltage range
85 - 264Vac universal input 47-63Hz
EMI suppression
EN 55011 class B, EN 55022 class B, FCC level B
EMC immunity
EN 60601-1-2
Output current limitation
>105% Inom. foldback, automatic recovery
Efficiency
83% typical
Operating Temperature Range
-25°C to +60°C (derate at 2.5%/°C above 50°C)
Safety Approvals
cUL/UL 60950-1, EN 60950-1, UL 60601-1, IEC/EN 60601-1, CB report, UL 508 listed (chassis mount modules)
Degree of protection
class II prepared
Case
plastic (UL94V-0 rated)
Option
DIN rail mounting adapter
Output Voltage and Current Ratings
MODEL
OUTPUT
OUTPUT 1
OUTPUT 2
OUTPUT 3
RIPPLE &
LINE
LOAD
POWER
NOISE
REG.
REG.
TMT10105
5VDC / 2000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT10112
10W
12VDC / 840mA
150mV pk-pk max.
20mV max.
50mV max.
TMT10115
15VDC / 670mA
150mV pk-pk max.
20mV max.
50mV max.
TMT10124
24VDC / 420mA
150mV pk-pk max.
20mV max.
50mV max.
TMT15105
5VDC / 3000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT15112
12VDC / 1250mA
150mV pk-pk max.
20mV max.
50mV max.
TMT15115
15W
15VDC / 1000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT15124
24VDC / 625mA
150mV pk-pk max.
20mV max.
50mV max.
TMT15212
+12VDC / 625mA
-12VDC / 625mA
150mV pk-pk max.
20mV max.
500mV max.
TMT15215
+15VDC / 500mA
-15VDC / 500mA
150mV pk-pk max.
20mV max.
500mV max.
TMT30105
5VDC / 6000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT30112
12VDC / 2500mA
150mV pk-pk max.
20mV max.
50mV max.
TMT30115
15VDC / 2000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT30124
24VDC / 1250mA
150mV pk-pk max.
20mV max.
50mV max.
TMT30212
+12VDC / 1250mA
-12VDC / 1250mA
150mV pk-pk max.
20mV max.
500mV max.
TMT30215
30W
+15VDC / 1000mA
-15VDC / 1000mA
150mV pk-pk max.
20mV max.
500mV max.
TMT30252
+5VDC / 3000mA
1
+12VDC / 1200mA
4
150mV pk-pk max.
20mV max.
500mV max.
TMT30512
+5VDC / 3000mA
1
+12VDC / 1000mA
5
-12VDC / 250mA
7
150mV pk-pk max.
20mV max.
500mV max.
TMT30515
+5VDC / 3000mA
1
+15VDC / 500mA
-15VDC / 500mA
150mV pk-pk max.
20mV max.
500mV max.
TMT30503
+3.3VDC / 6000mA
2
+5VDC / 1500mA
5
+12VDC / 250mA
7
150mV pk-pk max.
20mV max.
500mV max.
TMT30505
+5VDC / 5000mA
3
+3.3VDC / 1000mA
6
+12VDC / 250mA
7
150mV pk-pk max.
20mV max.
500mV max.
TMT50105
5VDC / 9000mA
150mV pk-pk max.
20mV max.
50mV max.
TMT50112
12VDC / 4200mA
150mV pk-pk max.
20mV max.
50mV max.
TMT50115
50W
15VDC / 3400mA
150mV pk-pk max.
20mV max.
50mV max.
TMT50124
24VDC / 2300mA
150mV pk-pk max.
20mV max.
50mV max.
TMT50148
48VDC / 1150mA
150mV pk-pk max.
20mV max.
50mV max.
Peak Currents
1
4500mA
2
7500mA
3
6000mA
4
1800mA
5
2000mA
6
1500mA
7
500mA <30sec 10% duty cycle max, total load not to exceed 30Watts
For chassis mount version add suffix C
DIN rail mount adapter
TMT-MK1
for 15W models
TMT-MK2
for 30W models
TMT-MK3
for 50W models
www.powersolve.co.uk
Features
•
Industrial (UL508) & medical safety approvals
•
PCB (solder pins) & chassis (screw terminals) mounting
•
Adapter for DIN rail mounting
•
Single, dual and triple outputs
•
Universal input 85 - 264Vac
•
Safety class II
•
Short circuit and overload protection
