Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]

Plug Top Power Adaptors

PPT15E Series
15 Watt Switch Mode
Universal AC Input

INPUT
Input Voltage Range

90 - 264Vac

Frequency

47 - 63Hz

Input Current

0.4A max.

Inrush Current

50A max. @ 240Vac

Conducted EMI

EN55022 Class B

Isolation - Input/Output

4,242VDC

Leakage Current

0.25mA max.

OUTPUT
Hold-up Time

10mS typ. @ 115Vac

Short Circuit Protection

Continuous (Auto Recovery)

Over Voltage Protection

Yes

ENVIRONMENTAL
Operating Temperature Range

0°C to +40°C

Storage Temperature Range

-20°C to +85°C

Cooling

Natural convection

GENERAL
Safety Approvals

cUL/UL 60950, TUV EN60950

Dimensions

80.60 x 47.90 x 43.30 mm
3.173 x 1.885 x 1.705 inches

Weight

150g

Electrical Specification

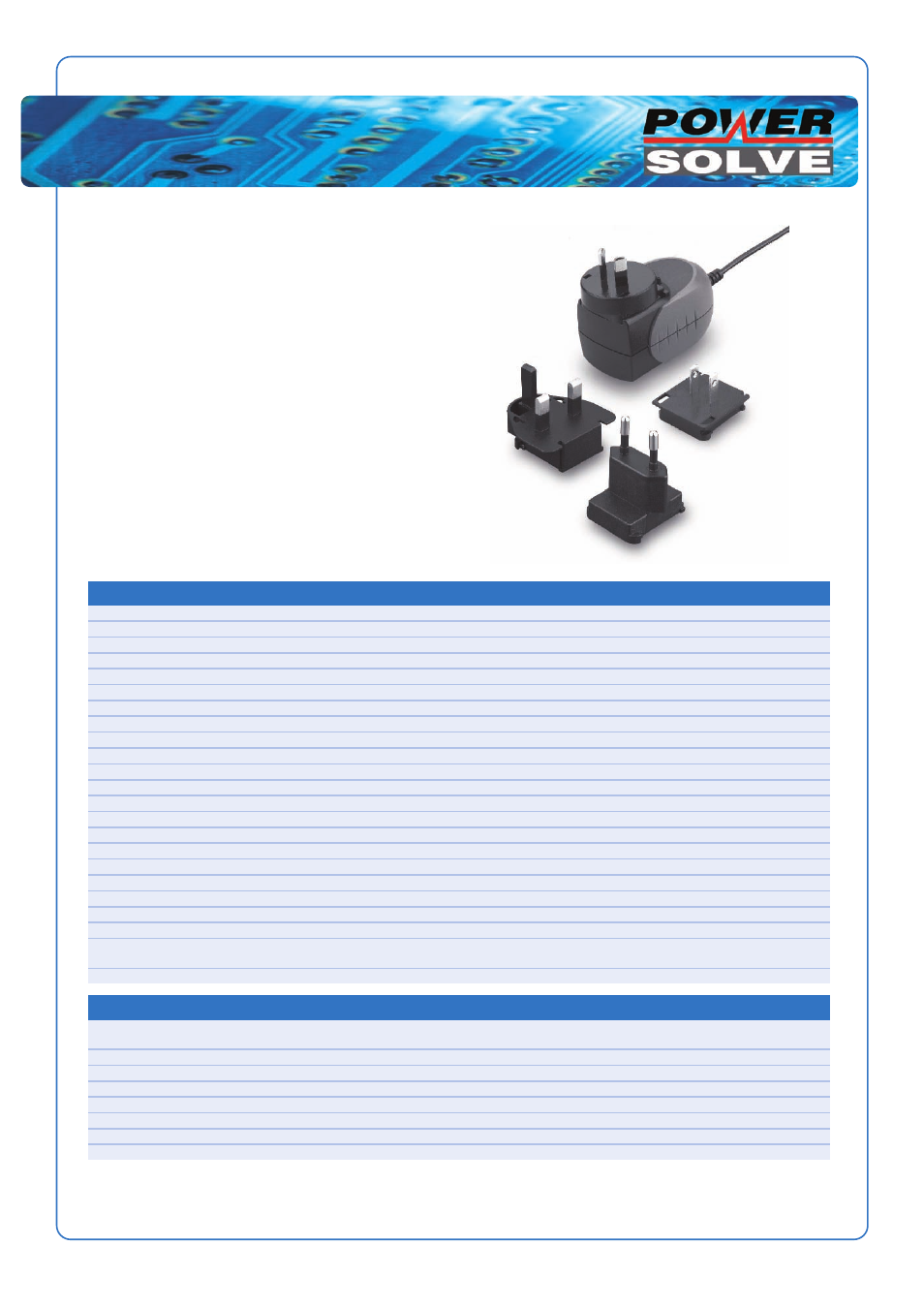

The PPT15E series of CEC level IV compliant AC-DC
Power Adaptors offer user interchangeable AC input
plugs to enable operation in many different countries.
Adaptors can be ordered with up to 4 different
interchangeable plugs to meet the power socket
requirements of most countries.

Features

Universal input range 90-264VAC

Over Current & Continuous Short Circuit Protection

Meets EN55022 Class B

CEC Level IV Compliant (Output Cable Length ≤1800mm)

Optional Output Connector

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL

OUTPUT

OUTPUT CURRENT

RIPPLE &

VOLTAGE

LINE

LOAD

% EFF.

VOLTAGE

Min.

Max.

NOISE

ACCURACY

REG.

REG.

PPT15E-050

5V

0A

2000mA

1%

±3%

±1%

±4%

70%

PPT15E-060

6V

0A

1700mA

1%

±2%

±1%

±3%

71%

PPT15E-090

9V

0A

1400mA

1%

±2%

±1%

±2%

76%

PPT15E-120

12V

0A

1100mA

1%

±2%

±1%

±2%

78%

PPT15E-150

15V

0A

1000mA

1%

±2%

±1%

±2%

77%

PPT15E-180

18V

0A

830mA

1%

±2%

±1%

±2%

79%

PPT15E-240

24V

0A

625mA

1%

±2%

±1%

±2%

80%

NOTE:

1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
