Powersolve CFM40T Series - Manual (Page 2)

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Converters

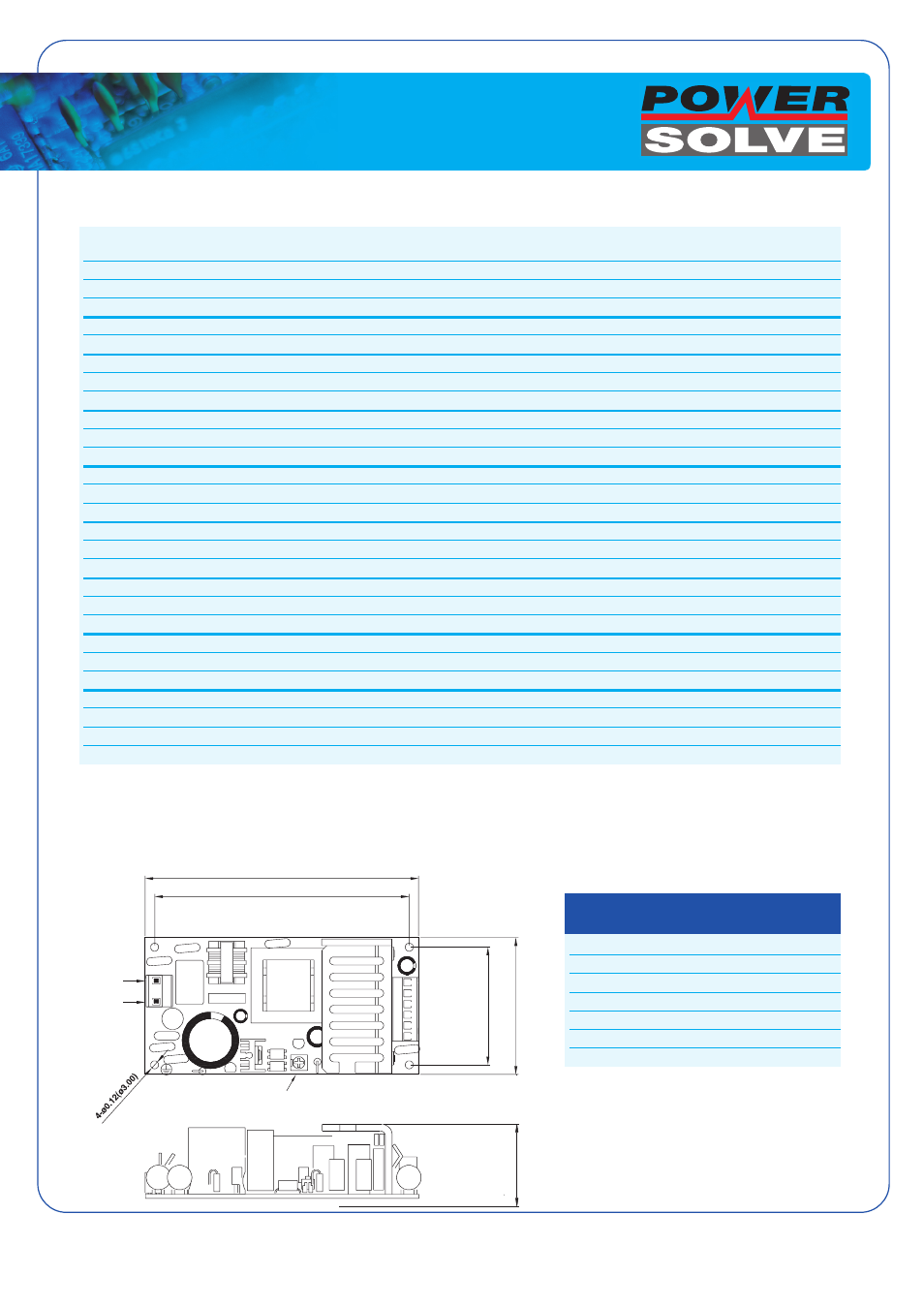

MODEL OUTPUT OUTPUT CURRENT (A) RIPPLE VOLTAGE LINE LOAD O/P POWER EFF.
VOLTAGE Min. Rated Max (mVp-p) ACCURACY REG. REG. MAX (Typ.)
5V(V1) 0.4 3.2 5.0 50 ±3% ±1% ±3%
12V(V2) 0.2 2.0 2.5 120 ±4% ±2% ±5% 40.0W 77%
5V(V1) 0.4 3.2 5.0 50 ±3% ±1% ±3%
24V(V2) 0.2 1.0 1.5 240 ±4% ±2% ±5% 40.0W 78%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
12V(V2) 0.2 2.0 2.5 120 ±4% ±2% ±5%
-5V(V3) 0 0.3 0.5 50 ±3% ±1% ±1% 40.5W 75%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
12V(V2) 0.2 2.0 2.5 120 ±4% ±2% ±5%
-12V(V3) 0 0.3 0.5 120 ±3% ±1% ±1% 42.6W 75%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
15V(V2) 0.2 1.5 2.3 150 ±4% ±2% ±5%
-15V(V3) 0 0.3 0.5 150 ±3% ±1% ±1% 42.0W 75%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
24V(V2) 0.2 1.0 1.5 240 ±4% ±2% ±5%
-12V(V3) 0 0.3 0.5 120 ±3% ±1% ±1% 42.6W 75%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
24V(V2) 0.2 1.0 1.5 240 ±4% ±2% ±5%
-5V(V3) 0 0.3 0.5 50 ±3% ±1% ±1% 40.5W 75%
5V(V1) 0.4 3.0 5.0 50 ±3% ±1% ±3%
24V(V2) 0.2 1.0 1.5 240 ±4% ±2% ±5%
12V(V3) 0 0.3 0.5 120 ±3% ±1% ±1% 42.6W 75%
3.3V(V1) 0.4 5.0 7.0 100 ±3% ±1% ±3%
5V(V2) 0.2 2.0 3.5 100 ±4% ±3% ±5%
-12V(V3) 0 0.3 0.5 120 ±3% ±1% ±1% 30.0W 70%
Note:
1. Voltage accuracy is set at full load.
2. Add a 0.1 µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to 100% full load and from 60% to 20% load (60% +/- 40% load)
CFM40D-01
CFM40D-02
CFM40T-01
CFM40T-02
CFM40T-03
CFM40T-04
CFM40T-05
CFM40T-06
CFM40T-07
1.
20
(3
0.4
8)
VR
4.00 (101.60)
3.75 (95.3)
1
2
3
4
5
6
1.75 (
44.5)
2.00 (
50.80)
ACL
ACN
1 V2
2 V1
3 V1
4 COM
5 COM
6 V3
Pin Connection
Pin CFM40D/T
