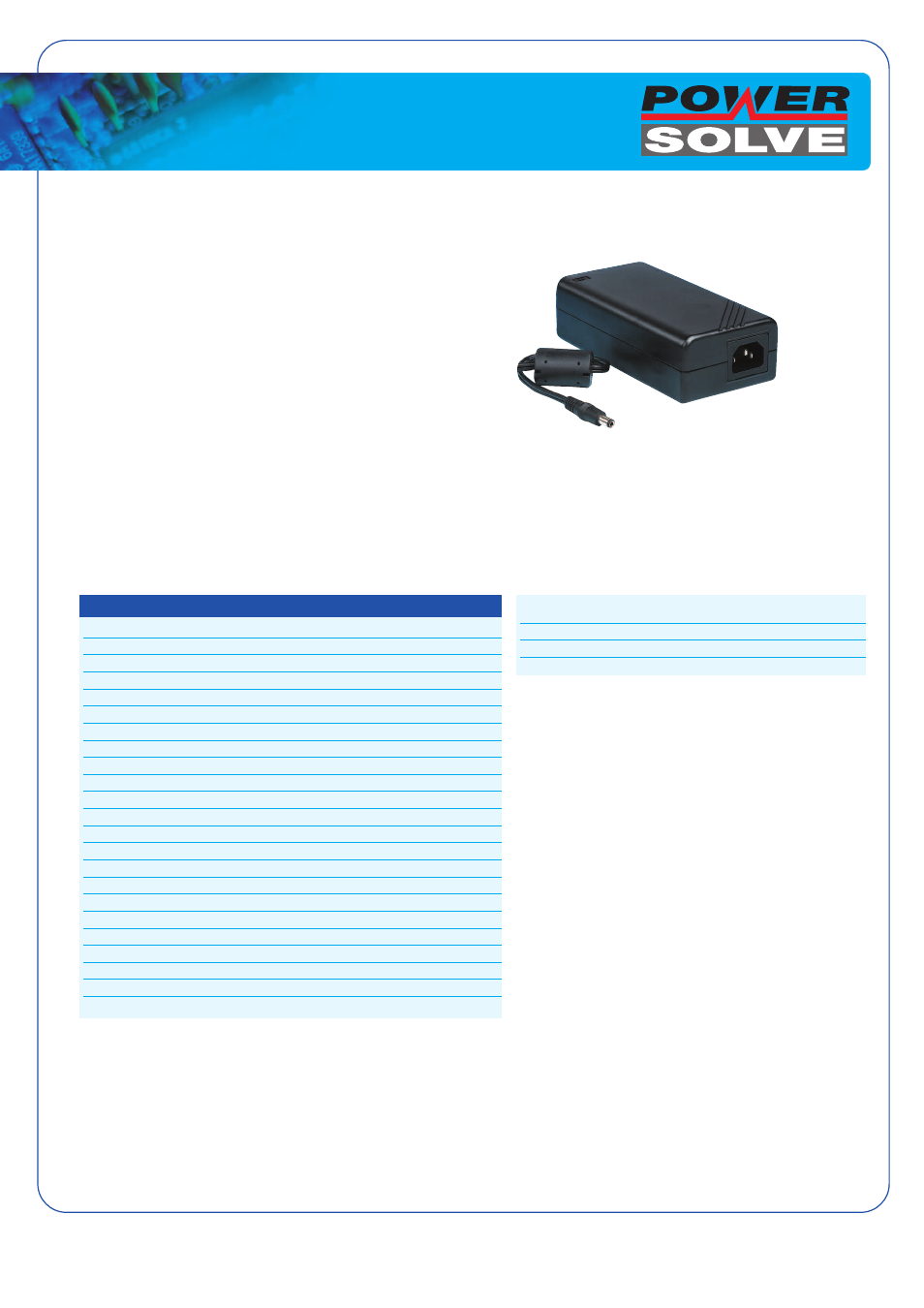

Lead Acid Battery Chargers
ED1048 Series
60 Watts 3 Stage Charger
Universal AC Input
Features
• Universal AC Input of 90-264VAC, 50/60Hz
• 3 pin IEC320-C14 Inlet Connector
• 3 Stage Charging with tri-colour LED indicator
• Ideal for charging 12V or 24V Lead Acid Batteries
• 60 Watts maximum output power
• Fully sealed plastic case
• EMC meets EN55022’B’
• Optional output connector
• EN60950 Safety Standards, 12V version has
EN60601 medical safety approvals
Input Voltage: 90-264VAC
Input Frequency: 47-63Hz
Input Current: 1.4A Max
Inrush Current: 50A Max
Turn On Delay: 3 seconds Max @ 100VAC
Efficiency: 72% Min at nominal input Max Load
Operating Temperature: 0 to 40 °C
Storage Temperature: -20 to +85 °C
Output Voltage: See table
Ripple & Noise: 12V charger 100mV max
24V charger 240mV max
Max Output Power: 60 Watts
Charging Voltage (12V): 14.7V Fast Charge
13.8V Trickle Charge
Charging Voltage (24V): 29.4V Fast Charge
27.6V Trickle Charge
Indication: RED – Constant Current
YELLOW – Constant Voltage Timer
GREEN – Constant Voltage Stand-by
Timer: 2 Hours +/-30 Minutes
Safety: EN60950 safety standards
12V version EN60601 medical
Electrical Specification
MODEL NOMINAL VOLTAGE MIN LOAD MAX LOAD
ED1048-12M 12V DC 0.1A 4A
ED1048-24 24V DC 0.1A 2A
