Line regulation: ±0.1% max.
Load regulation: ±0.2% max.
Ripple & Noise: <1% Vout + 30 mVpk-pk (20 MHz BW)
Conducted EMI: EN 55022, Class A
Short circuit protection: continuous, automatic recovery
Overvoltage protection: 105% of Vout
Efficiency: 85% typ.
Operating temperature range: –20°C ... +75°C
I/O isolation voltage: 2100 VDC (Vin < 60 VDC)
3500 VDC (Vin > 60 VDC & VAC input models)
Safety standards: IEC/EN 60950
Input voltage range Output power Output voltage range
10 – 16 VDC
18 – 36 VDC
36 – 75 VDC
80 – 160 VDC
160 – 320 VDC
320 – 640 VDC
450 – 800 VDC
Options: - Inrush current limiting
- Input voltage: 115/230 VAC, single phase or
200/400/480 VAC, three phase
- Input polarity protection
- Output decoupling diode for redundant /
parallel operation
- Active current sharing for parallel operation
- Remote On/Off (inhibit)
- Output programmable via analogue signal
- Monitoring of input and output voltage
- RS232 or IEEE488 interface
- Wall mounting
- Increased mechanical strength
- Tropical protection
For model selection contact sales office.
= Plug-in Modules for 19¨-Subracks
= Robust mechanical Design for Industrial Applications
= Input Voltages: from 10 to 800 VDC
= Also AC-Input 115/230 VAC or 400/480 VAC 3P
= Standard Models with Output Voltages up to 400 VDC
= EMI complies with EN 55022, Class A
= Available with many Standard Options

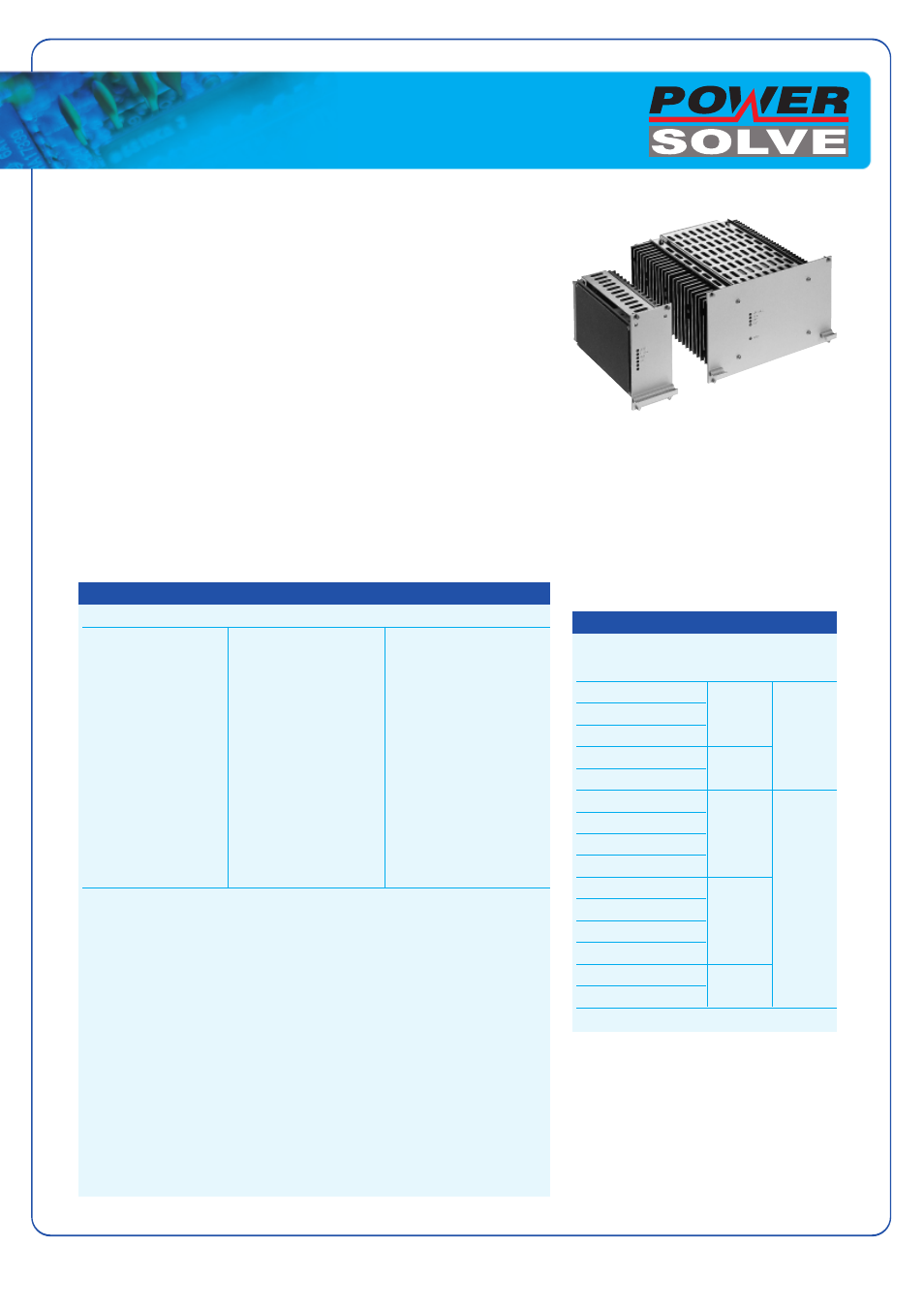

DC/DC Converters,
TSC Series, 150W–5000W
Models
Power Width Depth Height
[Watts] [mm] [mm] [mm]
150 71
250 107 160
500 213
133
400 107
3(U)
800 213
220
200 51
400 71
600 107
160
1200 213
850 107 267
1250 142 6(U)
1700 213
220
2500 284
2500 142
5000 284
300
Dimensions
Models with
150W – 5000W
available
4.5 – 5.5 VDC
8 – 10 VDC
11 – 13 VDC
14 – 16 VDC
23 – 26 VDC
26 – 30 VDC
45 – 55 VDC
58 – 68 VDC
100 – 130 VDC
200 – 250 VDC
380 – 400 VDC
570 – 600 VDC
760 – 800 VDC
High Power
