Powersolve PS150W Series - Manual (Page 2)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk

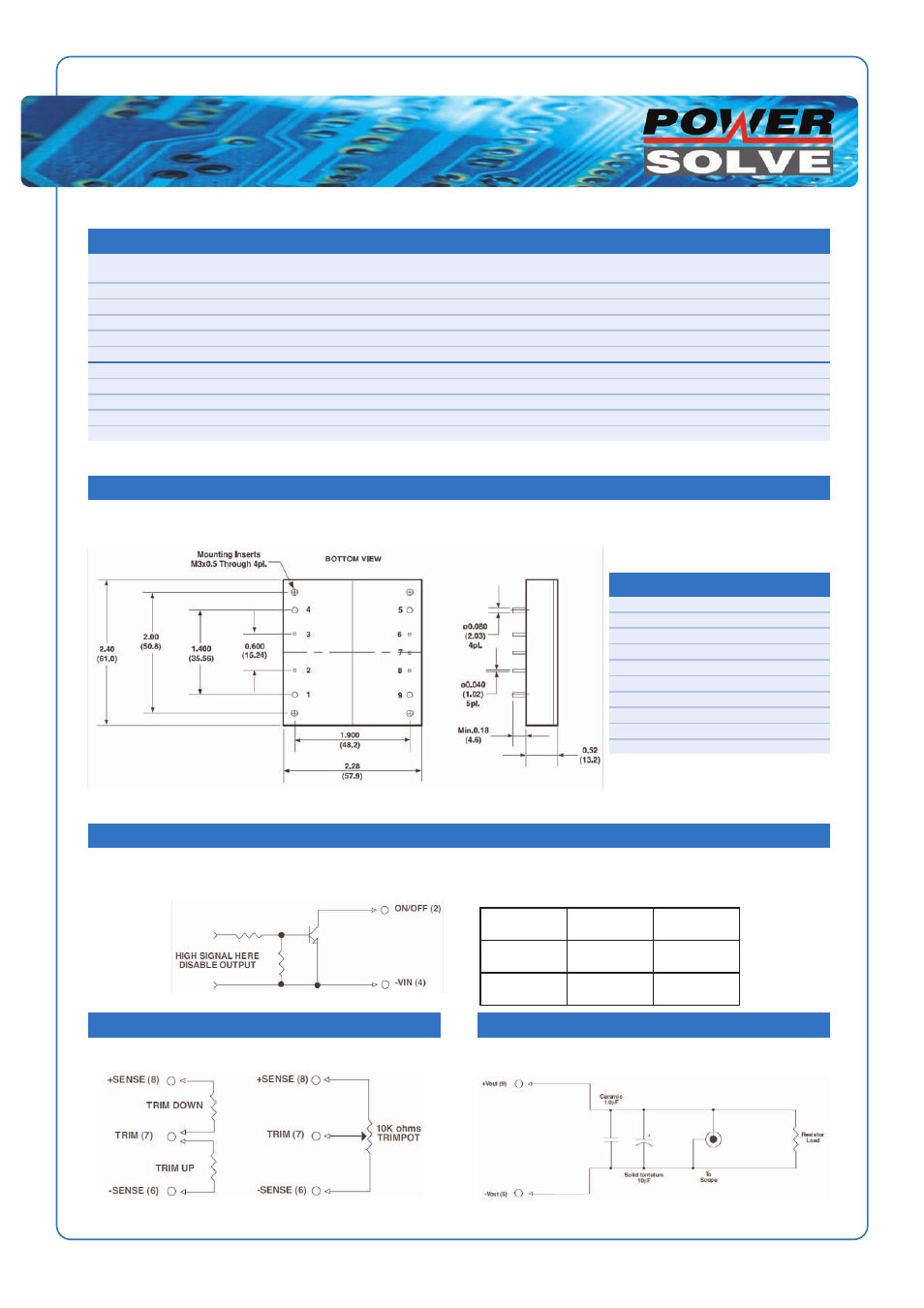

High Density DC-DC Modules
Output Voltage and Current Ratings
Pin Function
1 +Vin
2 ON/OFF
3 CASE
4 -Vin
5 -Vout
6 -Sense
7 Trim
8 +Sense
9 +Vout
All specifications typical at nominal line, full load and 25°C unless otherwise stated.
Pin Connection
All dimensions in inches (mm)
Tolerances
Inches x.xx ±0.02 x.xxx ±0.010
Millimeters x.x ±0.5 x.xx ±0.25
MODEL INPUT OUTPUT OUTPUT INPUT CURRENT % EFF.
VOLTAGE VOLTAGE CURRENT NO LOAD FULL LOAD
PS150W-24S3V3 9-36 VDC 3.3 VDC 30A 200mA 4741mA 85
PS150W-24S05 9-36 VDC 5 VDC 30A 200mA 7022mA 87
PS150W-24S12 9-36 VDC 12 VDC 12.5A 100mA 6944mA 88
PS150W-24S15 9-36 VDC 15 VDC 10A 100mA 6944mA 88
PS150W-24S24 9-36 VDC 24 VDC 6.5A 100mA 7022mA 88
PS150W-48S3V3 18-75VDC 3.3VDC 30A 100mA 2371mA 87
PS150W-48S05 18-75VDC 5VDC 30A 100mA 3511mA 89
PS150W-48S12 18-75VDC 12VDC 12.5A 50mA 3472mA 90
PS150W-48S15 18-75VDC 15VDC 10A 50mA 3472mA 90
PS150W-48S24 18-75VDC 24VDC 6.5A 50mA 3511mA 89
NOTE: Nominal Input Voltage 24 or 48VDC
Mechanical and Connection Details
Remote ON/OFF Control
The PS150W Series allows the user to switch the module on and off electronically with the remote on/off feature.
The PS150W Series are available with “positive logic” or “negative logic” (option).
Logic Table
Logic State
(Pin 2)
Negative
Logic
Positive
Logic
Logic low-
Switch closed
Module on Module off
Logic high-
Switch open
Module off Module on
External Output Trim
The output can be trimmed externally (±10%) using a fixed resistor or
a trimpot as shown.
Output Noise
The output noise is measured with a 10µF tantalum and a 1.0µF
ceramic capacitor across the output.
