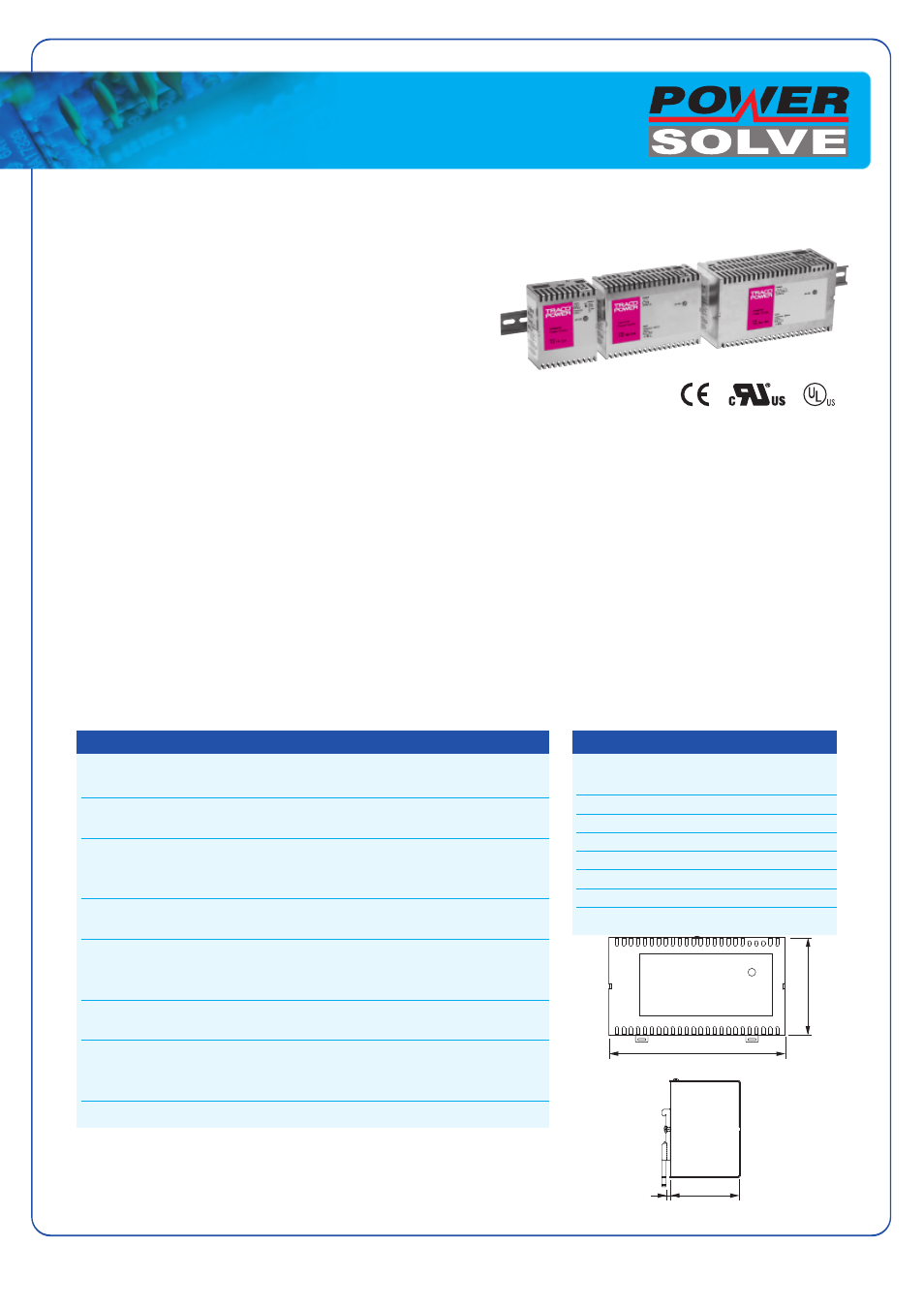

Powersolve TIS Series - Manual

Input voltage range: – 93–132 VAC / 187–264 VAC (user selectable) 50/60 Hz
– TIS 50 models: 93–264 VAC (universal input) 50/60 Hz
– TIS 500-124-230: 187–264 VAC 50 Hz
– TIS 500-124-115: 93–132 VAC 60 Hz
Line regulation: ±0.2% max.
Load regulation: ±1.0% max.
Ripple & Noise: <50 mVpk-pk (20 MHz BW)
EMI suppression: EN 55011, class B, EN 55022, class B and FCC, level B
EMC immunity: EN 61000-6-2
Output current limitation: at 110% of Iout max. (constant current)
Overvoltage protection: at 140% of Vout nom.
Efficiency: 90% typ.
Operating temperature: –25°C … +70°C above 50°C derating 2%/°C
Safety standard / approvals: cUL/UL 60950, UL 508C listed, UL 1604 listed
(except for models with options), IEC/EN 60950, CB-report
Connection: plugable screw terminals (plugs included)
(TIS 600 models: screw terminal blocks)
Case: stainless steel, aluminium
Mounting: snap-on mounting on 35 mm DIN-Rail or chassis mounting
Note: Output current characteristics suitable for battery charging applications
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order code Output power Output voltage Output current
max. (adjustable range) max.
TIS 50-112 50 Watt 12 VDC (12–14 VDC) 3.5 A
TIS 50-124 24 VDC (24–28 VDC) 2 A
TIS 75-112 12 VDC (12–14 VDC) 6 A
TIS 75-124 75 Watt 24 VDC (24–28 VDC) 3 A
TIS 75-148 48 VDC (48–52 VDC) 1.5 A
TIS 150-124 150 Watt 24 VDC (24–28 VDC) 6 A
TIS 150-148 48 VDC (48–52 VDC) 3 A
TIS 300-124 24 VDC (24–28 VDC) 12 A
TIS 300-148 300 Watt 48 VDC (48–52 VDC) 6 A
TIS 300-172 72 VDC (60–76 VDC) 4.2 A
TIS 500-124-230 500 Watt 24 VDC (24–28 VDC) 20 A
TIS 500-124-115 24 VDC (24–28 VDC) 20 A
TIS 600-124 24 VDC (24–28 VDC) 24 A
TIS 600-148 600 Watt 48 VDC (48–52 VDC) 12 A
TIS 600-172 72 VDC (60–76 VDC) 8.5 A
= Low Profile Metal Case for DIN-Rail Mounting
= Standard Models with 12, 24, 48 and 72 VDC
= For System Applications expandable with built-in Function Modules
= Adjustable Output
= Overload Protection
= Conducted Emission to EN 55011, Class B
= Worldwide Safety Approvals
Industrial Power Supplies
TIS Series, 50 – 600 Watt
Models
Type Width Heigth Depth
w h d
TIS 50 75 (2.95) 100 (3.94) 56.7 (2.23)
TIS 75 90 (3.54) 114.6 (4.51) 56.7 (2.23)
TIS 150 157 (6.18) 114.6 (4.51) 56.7 (2.23)
TIS 300 207 (8.15) 114.6 (4.51) 83.0 (3.27)
TIS 500 220 (8.66) 130 (8.66) 83.0 (3.27)
TIS 600 243 (9.57) 177.2 (6.98) 83.0 (3.27
Dimensions
w
h
Output OK
5 (0.2) d
() = Inches
