Powersolve PPT30E Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk

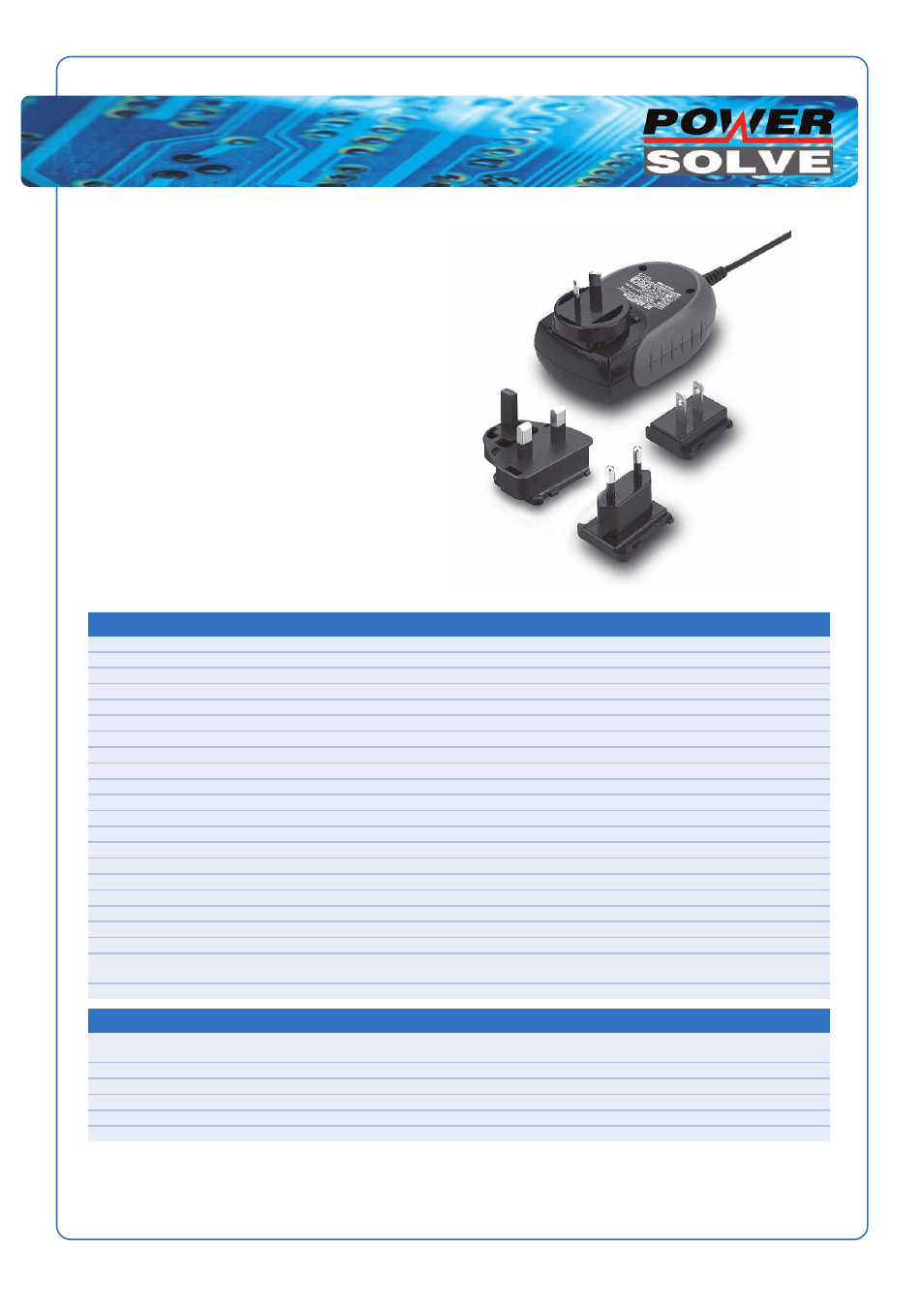

Plug Top Power Adaptors
PPT30E Series
30 Watt Switch Mode
Universal AC Input
INPUT
Input Voltage Range
90 - 264Vac
Frequency 47 - 63Hz
Input Current 0.8A max.
Inrush Current 50A max. @ 240Vac
Isolation - Input/Output 4242VDC
Leakage Current 0.25mA max.
OUTPUT
Hold-up Time
10mS typ. @ 115Vac
Short Circuit Protection Continuous (Auto Recovery)
Over Voltage Protection Yes
ENVIRONMENTAL
Operating Temperature Range
0°C to +40°C
Storage Temperature Range -20°C to +85°C
Cooling Natural convection
GENERAL
Safety Approvals
cUL/UL 60950, TUV EN60950
Dimensions 107.77 x 57.60 x 33.50 mm
4.234 x 2.267 x 1.319 inches
Weight 300g
Electrical Specification
The PPT30E series of CEC level IV compliant AC-DC
Power Adaptors offer user interchangeable AC input
plugs to enable operation in many different countries.
Adaptors can be ordered with up to 4 different
interchangeable plugs to meet the power socket
requirements of most countries.
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT CURRENT RIPPLE VOLTAGE LINE LOAD % EFF.
VOLTAGE Min. Max. (mV pk-pk) ACCURACY REG. REG.
PPT30E-090 9V 0A 3300mA 1% ±2% ±1% ±3% 78%
PPT30E-120 12V 0A 2500mA 1% ±2% ±1% ±2% 79%
PPT30E-150 15V 0A 2000mA 1% ±2% ±1% ±2% 81%
PPT30E-180 18V 0A 1650mA 1% ±2% ±1% ±2% 81%
PPT30E-240 24V 0A 1250mA 1% ±2% ±1% ±2% 83%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
3. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
Features
• Universal input range 90-264VAC
• Over Current & Continuous Short Circuit Protection
• Conductive EMI Meets CISPR/FCC Class B
• CEC Level IV Compliant (Output Cable Length ≤1800mm)
(PPT30E-090: Output Cable Length ≤1220mm)
(PPT30E-120: Output Cable Length ≤1500mm)
• Optional Output Connector
