Plug Top Power Adaptors
PPT10E Series
10 Watt Switch Mode
Universal AC Input
INPUT
Input Voltage Range
90 - 264Vac
Frequency
47 - 63Hz
Input Current
0.4A max.
Inrush Current
40A max. @ 240Vac
Isolation - Input/Output
4242VDC
Leakage Current
0.25mA max.
OUTPUT
Hold-up Time
10mS typ. @ 115Vac
Short Circuit Protection
Continuous (Auto Recovery)
Over Current Protection
Constant Current type
Over Voltage Protection
Yes
ENVIRONMENTAL
Operating Temperature Range
0°C to +40°C
Storage Temperature Range
-20°C to +85°C
Cooling
Natural convection
GENERAL
Safety Approvals
cUL/UL 60950, TUV EN60950
Dimensions
72.0 x 46.0 x 35.0 mm
2.835 x 1.811 x 1.378 inches
Weight
130g
Electrical Specification

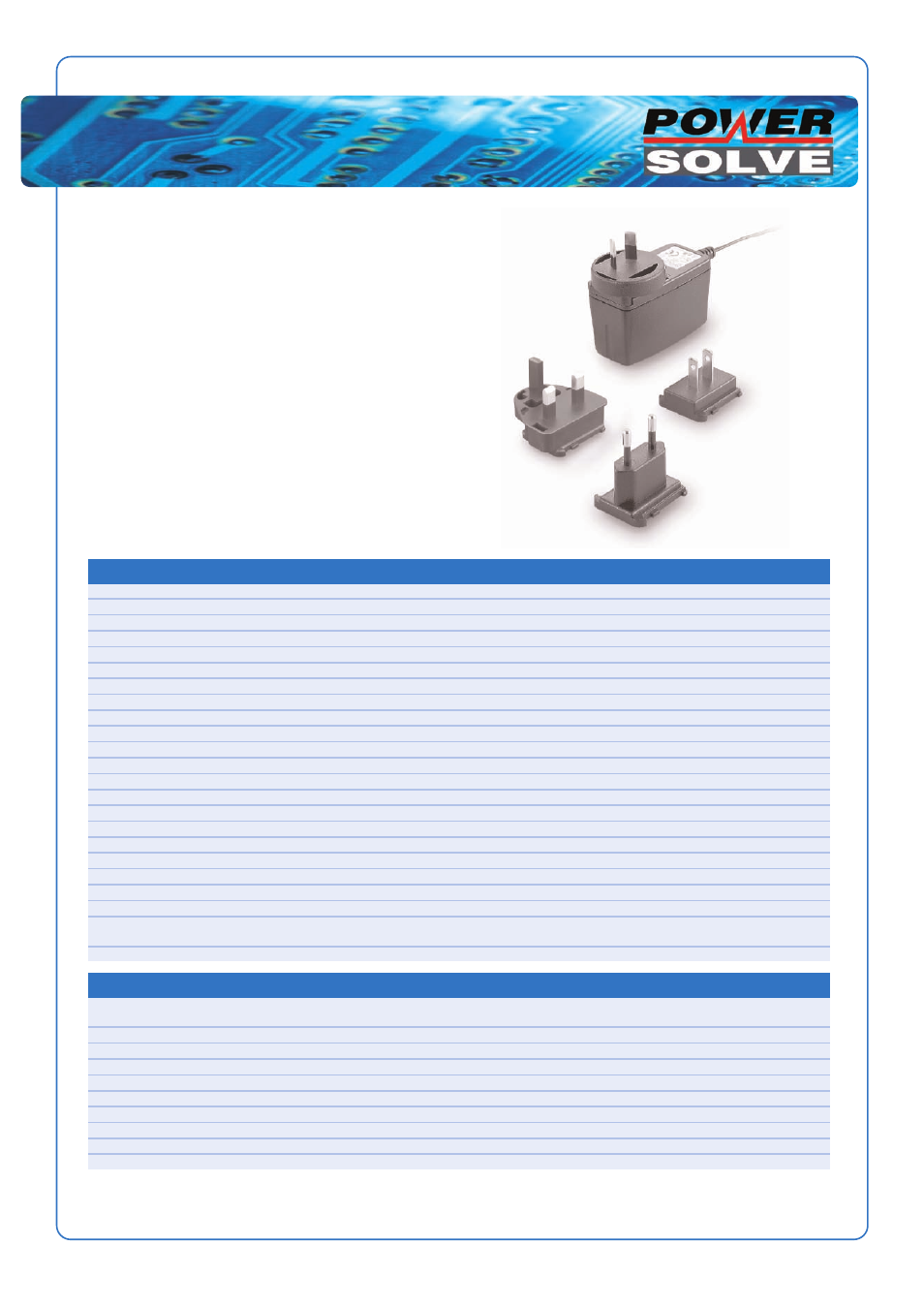

The PPT10E series of CEC level IV compliant AC-DC Power
Adaptors offer user interchangeable AC input plugs to enable
operation in many different countries. Adaptors can be
ordered with up to 4 different interchangeable plugs to meet
the power socket requirements of most countries.
Features
•
Universal Input Range 90-264VAC
•
Over Current & Continuous Short Circuit Protection
•
Conductive EMI Meets CISPR/FCC Class B
•
CEC Level IV Compliant (Output cable length ≤1800mm)
•
Optional Output Connector
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL
OUTPUT
OUTPUT CURRENT
RIPPLE &
VOLTAGE
LINE
LOAD
% EFF.
VOLTAGE
Min.
Max.
NOISE
ACCURACY
REG.
REG.
PPT10E-050
5V
0A
1600mA
50mV pk-pk
±2%
±1%
±4%
73%
PPT10E-060
6V
0A
1500mA
1%
±2%
±1%
±3%
73%
PPT10E-075
7.5V
0A
1200mA
1%
±2%
±1%
±3%
73%
PPT10E-090
9V
0A
1100mA
1%
±2%
±1%
±2%
74%
PPT10E-120
12V
0A
850mA
1%
±2%
±1%
±2%
74%
PPT10E-136
13.6V
0A
750mA
1%
±2%
±1%
±2%
74%
PPT10E-150
15V
0A
700mA
1%
±2%
±1%
±2%
75%
PPT10E-180
18V
0A
550mA
1%
±2%
±1%
±2%
75%
PPT10E-240
24V
0A
400mA
1%
±2%
±1%
±2%
75%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
