Powersolve ESP Series User Manual

Enclosed power supplies, Models, Dimensions

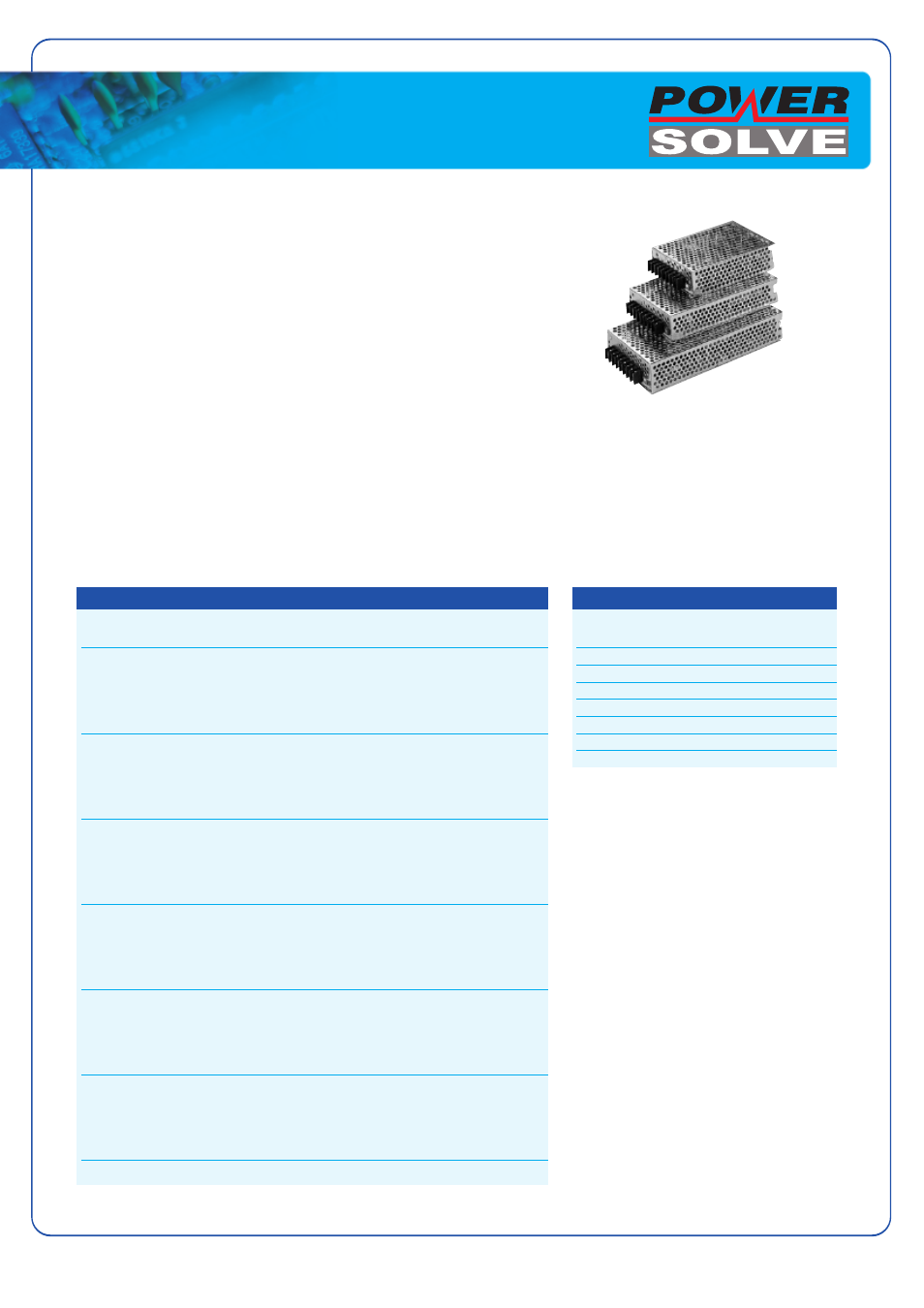

background image

www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

Order code

Output power

Output voltage

Output current

max.

max.

ESP 18-05SN

5 VDC

3.6 A

ESP 18-12SN

12 VDC

1.5 A

ESP 18-15SN

18 Watt

15 VDC

1.2 A

ESP 18-24SN

24 VDC

0.8 A

ESP 18-48SN

48 VDC

0.4 A

ESP 36-05SN

5 VDC

6 A

ESP 36-12SN

12 VDC

3 A

ESP 36-15SN

36 Watt

15 VDC

2.5 A

ESP 36-24SN

24 VDC

1.5 A

ESP 36-48SN

48 VDC

0.8 A

ESP 60-05SN

5 VDC

10 A

ESP 60-12SN

12 VDC

5 A

ESP 60-15SN

60 Watt

15 VDC

4 A

ESP 60-24SN

24 VDC

2.5 A

ESP 60-48SN

48 VDC

1.2 A

ESP 75-05S

5 VDC

15 A

ESP 75-12S

12 VDC

6.5 A

ESP 75-15S

75 Watt

15 VDC

5.2 A

ESP 75-24S

24 VDC

3.2 A

ESP 75-48S

48 VDC

1.6 A

ESP 100-05S

5 VDC

20 A

ESP 100-12S

12 VDC

8.6 A

ESP 100-15S

100 Watt

15 VDC

7 A

ESP 100-24S

24 VDC

4.4 A

ESP 100-48S

48 VDC

2.2 A

ESP 150-05S

5 VDC

30 A

ESP 150-12S

12 VDC

13 A

ESP 150-15S

150 Watt

15 VDC

10 A

ESP 150-24S

24 VDC

6.5 A

ESP 150-48S

48 VDC

3.3 A

=

Compact Metal Case with Screw Terminals Block

=

Universal Input 85–264 VAC

=

Adjustable Output

=

EMI/EMC Compliance with EN 61000-6-3/EN 61000-6-1

=

Compliance to EN 61000-3-2 (PFHC)

=

Short Circuit and Overvoltage Protection

=

Highest Industrial Quality Standard

Enclosed Power Supplies

ESP Series, 18 – 150 Watt

Models

Input voltage range:

85–264 VAC, 50/60 Hz

Line regulation:

±0.2% max.

Load regulation:

±1.0% max.

Output voltage adjustment:

±10% of Vout nom. with potentiometer

Ripple & Noise:

<75 mVpk-pk (20 MHz BW)

EMI suppression:

EN 55011, class B, EN 55022, class B and FCC, level B, EN 61000-3-2, class D

EMC immunity:

EN 61000-6-1

Output current limitation:

at 105–120% of Inom. (constant current)

Over voltage protection:

at 110–130% of Vout nom.

Efficiency:

80% typ.

Operating temperature:

–10°C … +60°C above 50°C derating 2.0%/C

Safety standards / approvals:

cUL/UL 60950, IEC/EN 60950, CB-Report

Connection:

screw terminal block

Case

stainless steel

x

Type

Length

Width

Height

l

w

h

ESP18

87 (3.41)

71 (2.80)

32 (1.26)

ESP36

115 (4.53)

75 (2.95)

32 (1.26)

ESP60

135 (5.31)

81 (3.15)

37 (1.46)

ESP75

162 (6.38)

88 (3.46)

38 (1.50)

ESP100

187 (7.36)

93 (3.66)

39 (1.54)

ESP150

196 (7.72)

107 (4.21)

45 (1.77)

Dimensions
