Powersolve PAK350 Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
AC-DC Converter
Input Voltage 90-264VAC full range, 47-63Hz / 127-370VDC
Power Factor 0.98 at 230VAC / 0.99 at 115VAC at full load
AC Input Current (typ.) 4A at 115VAC / 2A at 230VAC
Inrush Current 27A at 115VAC / 54A at 230VAC
Leakage Current <1mA at 230VAC
Output Voltage See Table
Output Current See Table
Voltage Adjust Range ±10% typical adjustment by potentiometer
Voltage Tolerance ±1%
Set Up, Rise Time 800ms, 60ms at full load
Hold Up Time (typ.) 16ms at 230VAC, full load
Overload Protection >105-150% of rated output power for more than 3 seconds, shutdown output with auto recovery
>150% of rated output power or short circuit then constant current limiting. If output drops to 40% of
rated output voltage then shutdown and auto recover for 5 times attempts. If fault remains for more
than 5 attempts then latch off output and re-power on to recover.
Overvoltage Protection See Table for values. Output latches off, recycle AC input to recover
Over Temperature Protection Shuts down output, recovers automatically when temperature goes down
Auxiliary Power
+5V/0.3A (±3%)
Remote ON/OFF Control External switch or NPN transistor to turn on/off
Power OK Signal Open drain signal low when PSU turns on. Max. sink current 20mA, max drain voltage 40V
Operating Temp. Range -25°C to +70°C. Above 50°C, derate linearly to 50% load at 70°C
Operating Humidity 20-90% RH non-condensing
Storage Temp. Range -40°C to +85°C
Storage Humidity 10-95% RH non-condensing
Temperature Coefficient ±0.02%/°C (0-50°C)
Vibration Compliance to IEC 68-2-6, IEC 68-2-64
Safety Standards UL60950-1 2nd edition, TUV EN60950-1: 2006+A11 approved
Withstand Voltage I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC
EMI Conduction & Radiation EN55022: 1998+A1 : 2000+A2 : 2003 Class B
Harmonic Current
EN61000-3-2: 2000+A2 : 2005 Class A, EN61000-3-3 : 1995+A1 : 2001
EMS Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11
Cooling Internal fan
Dimensions 199(L) x 105(W) x 41(H) mm
Weight 1.05Kg
Electrical Specification
Notes:
1. All parameters NOT specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature
2. Ripple and noise are measured at 20MHz bandwidth by using a 12” twisted pair wire terminated with a 0.1µF ceramic & 47µF electrolytic capacitors across the output
3. Derating is required at low input voltages. Below 100VAC, derate linearly to 80% load at 90VAC
4. Tolerance: includes set up tolerance, line regulation and load regulation
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC Directives

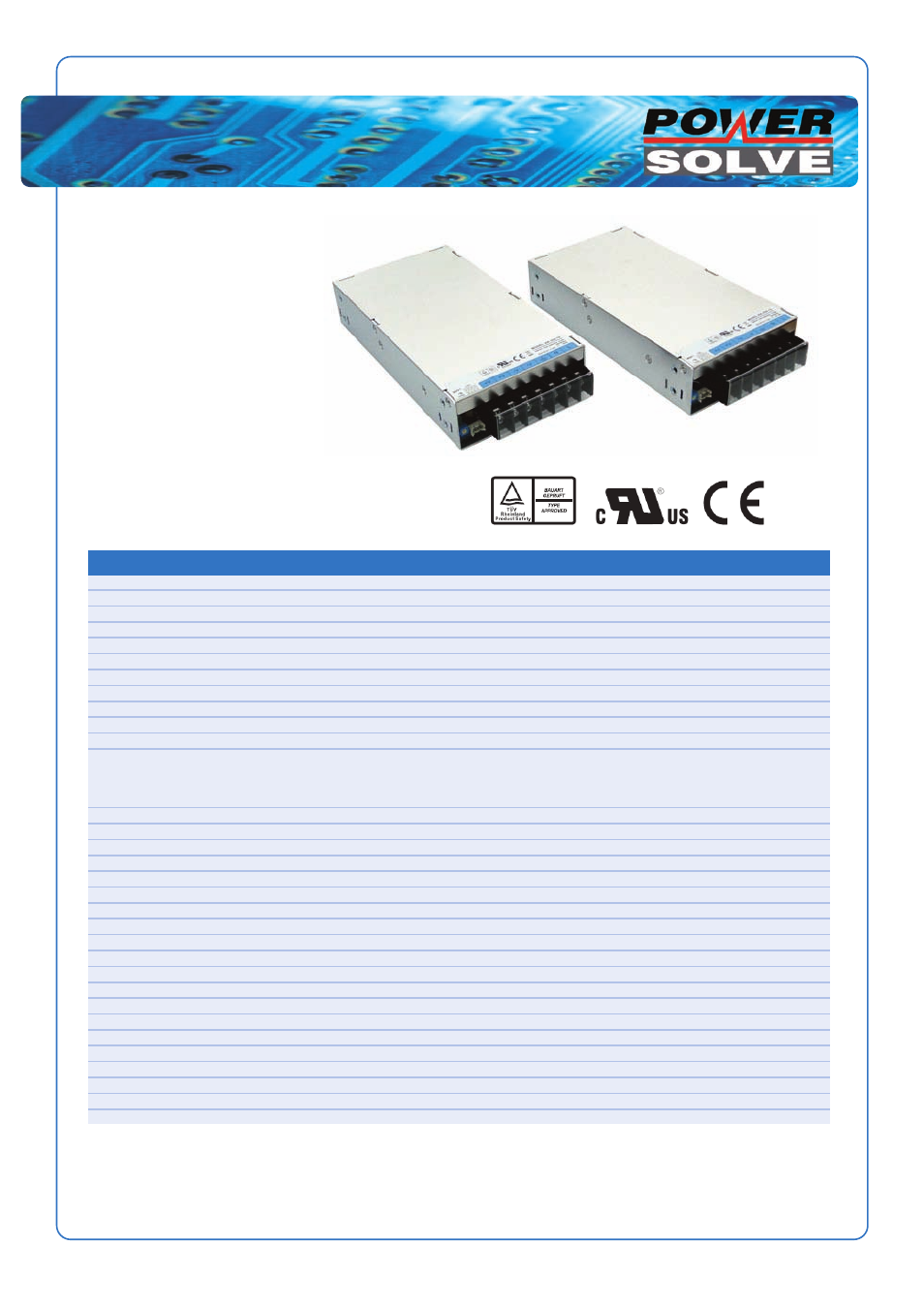

PAK350 Series
350W Active PFC
Single Output
Features
• Universal AC Input with active PFC
• High Efficiency up to 93%
• +5V/0.3A Auxiliary Output
• 150% Peak Load Capability
• 1U profile, High Power Density
• Built-in Constant Current Limiting Circuit
• Power OK signal (Power good, logic low)
• Remote ON/OFF, Remote Sense function
• OVP, OLP, OTP, SCP, Fan Failure Protections
www.powersolve.co.uk
