A AC C--D DC C C Co on nv ve errtte errs s

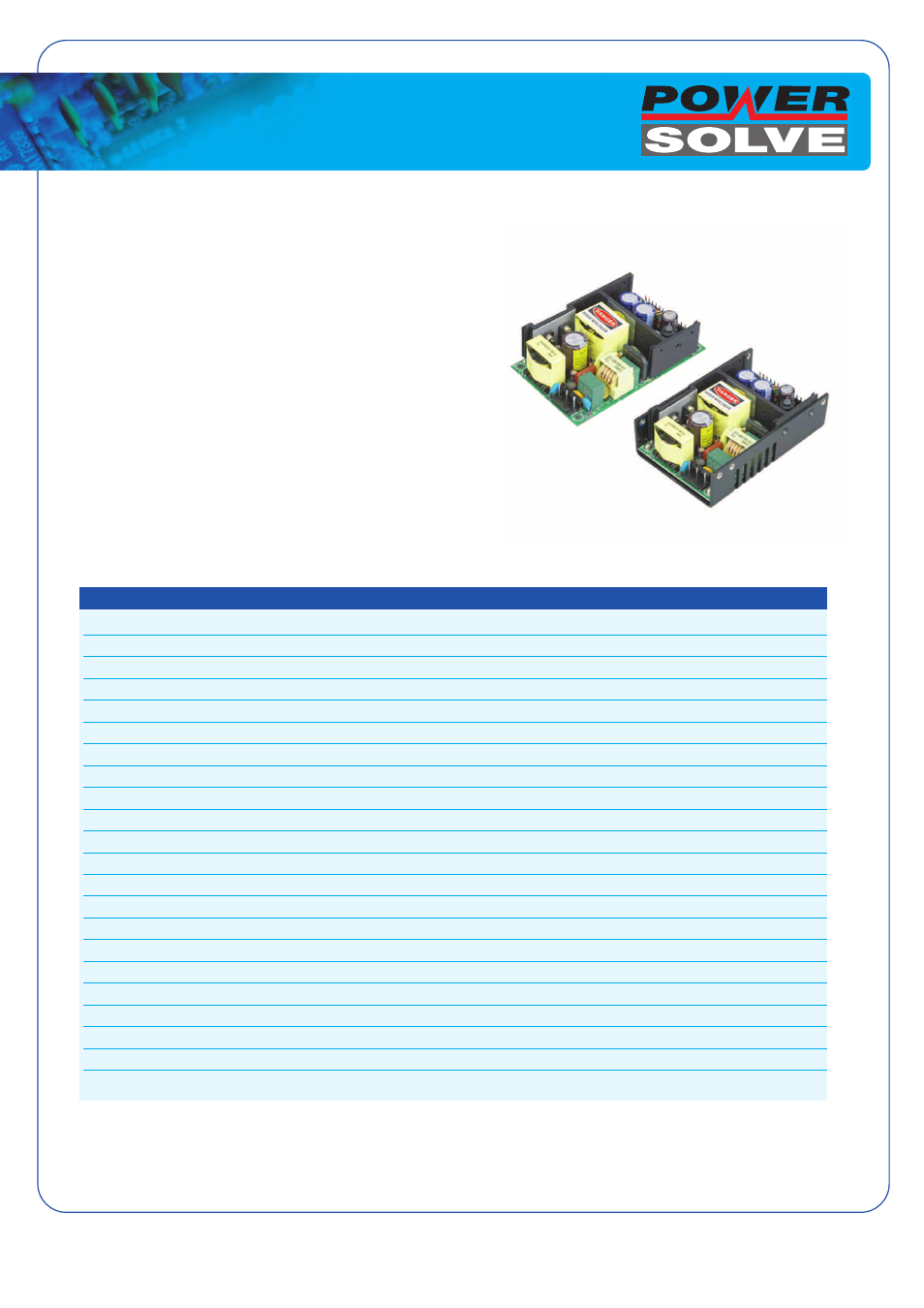

PSO120/PSU120 Series
Single, Dual & Triple Outputs
Up to 120 Watts
Features
• Power Factor Correction
• Wide Universal Input Voltage of 90-264VAC
• Single, Dual or Triple DC Outputs
• Optional Power Fail Detection
• Industry Standard 5 x 3” footprint
• Available as Open PCB or in Aluminium U Channel
• Full Safety Approvals
• EMC to FCC Part 15 Class B & CISPR-22 Class B
• Single Output versions available with any voltage from 3V to 50V DC
INPUT
AC Input 90-264VAC, 47-63Hz
Power Factor Correction 0.95 Minimum
Input Current 2A Max, Low Line, Full Load
Inrush Current 30A Max, Cold Start, 230VAC Input
Efficiency 80% Typical
DC Outputs See table
Line Regulation 0.5% Typical, 1% Max
Load Regulation See table
Over Voltage Protection Single Output Models & Output 1 of Multi Output Models, 112-132% V Nominal
Over Current Protection 110-150% Nominal Output Power
Transient Response 4mS, Full Load to 50% Load
Hold Up Time 16mS Min, 110V AC Input, Full Load Output
Start Up Time 1 Sec Typical, 2 Sec Max
Ripple & Noise 1% Typical, 2% Max
Earth Leakage Current 0.45mA Max
Operating Temperature 0 to 70ºC, Derate Linearly from 100% Load at 50ºC to 50% Load at 70ºC
Storage Temperature -40 to +85ºC
Relative Humidity 95% Max Non Condensing
EMC FCC Part 15 Class B, CISPR-22 Class B
Safety Approvals UL, cUL60950, TUV/GS(EN60950), CE
Electrical Specification
