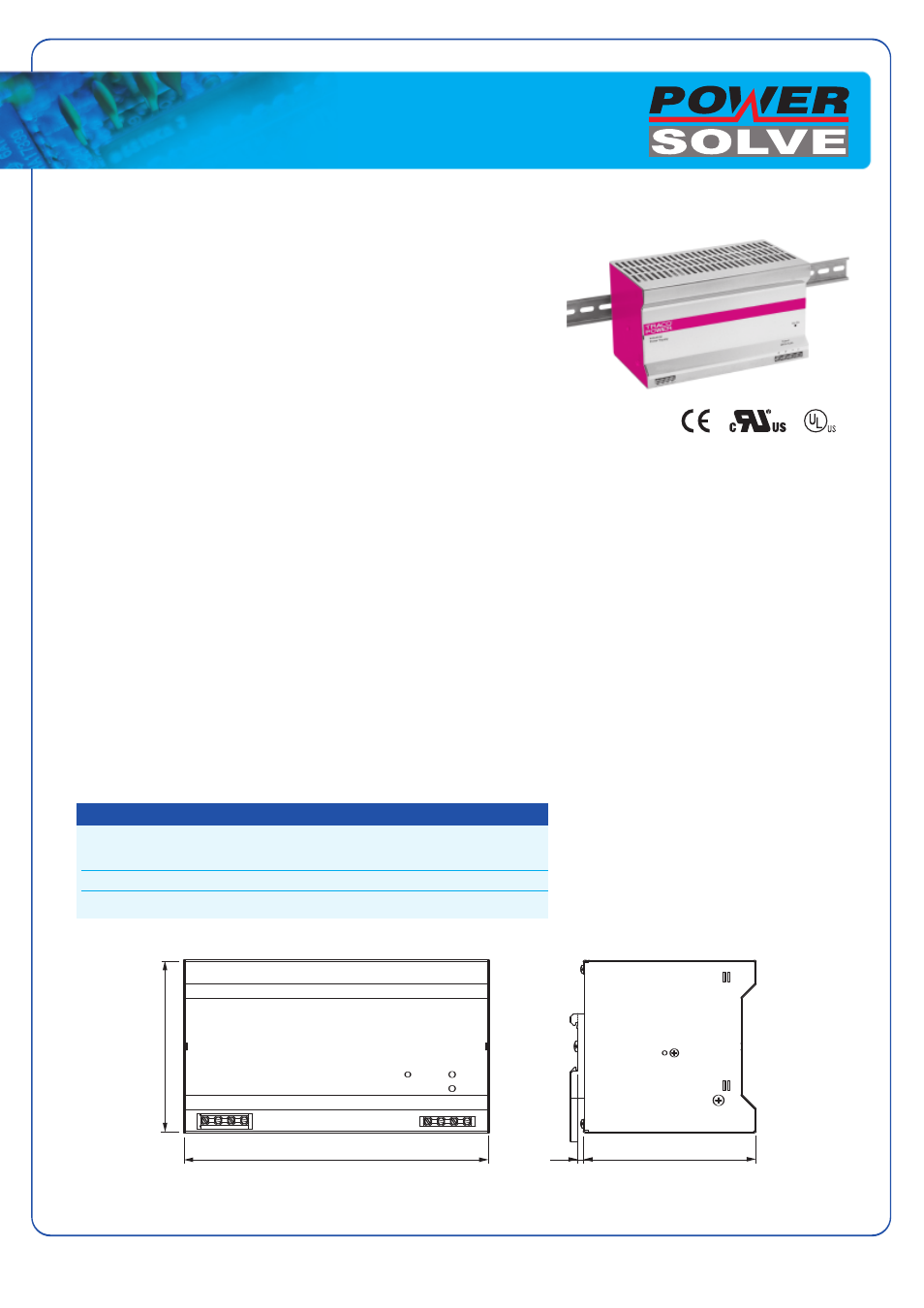

Powersolve TTL Series - Manual

Input voltage range: 3x360–575 VAC 50/60 Hz, 510–815 VDC
Line regulation: ±0.8% max.
Load regulation: ±0.8% max.
Ripple & Noise: <100 mVpk-pk (20 MHz BW)
EMI suppression: EN 55011, class B, EN 55022, class B and FCC,
level B EN 61000-3-2
EMC immunity: EN 61000-6-2
Output current limitation: at 110% of Iout max. (constant current)
Overvoltage protection: at 33 VDC or 40 VDC
Efficiency: 90% typ.
Operating temperature: –25°C … +70°C above 60°C derating 5%/°C
Safety and approvals: cUL /UL 60950, UL 508C listed, IEC/EN 60950, CB-report
Connection: screw terminals
DC-OK signal: open collector
Case: stainless steel, aluminium
Mounting: snap-on mounting on 35 mm DIN-Rail
Note: Output current characteristics suitable for battery charging applications
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order code Output power Output voltage Output current
max. (adjustable range) max.
TTL 480-124 480 Watt 24 VDC (24–28 VDC) 20 A
= 3-Phase Universal Input 400 / 500 V 3 AC
= Easy Snap-on Mounting on DIN-Rails
= Output Voltage adjustable
= DC-OK Signal
= Very low Ripple and Noise
= Compliance to EN 61000-3-2 (PFHC)
= Conducted Emission to EN 55022, Class B
= Worldwide Safety Approvals
Industrial Power Supplies
TTL Series, 480 Watt
Models
DC-ON Overload
Vout adjust
125 (4.92) 5 (0.2) 220 (8.66)
125 (4.92)
() = Inches
