High Density DC-DC Modules
Output Voltage and Current Ratings
Pin Function
1 +Vin
2 ON/OFF
3 CASE
4 -Vin
5 +Vo2
6 -Vo2
7 Vo2 Trim
8 +Vo1
9 -Vo1
10 Vo1 Trim
All specifications typical at nominal line, full load and 25°C unless otherwise stated.

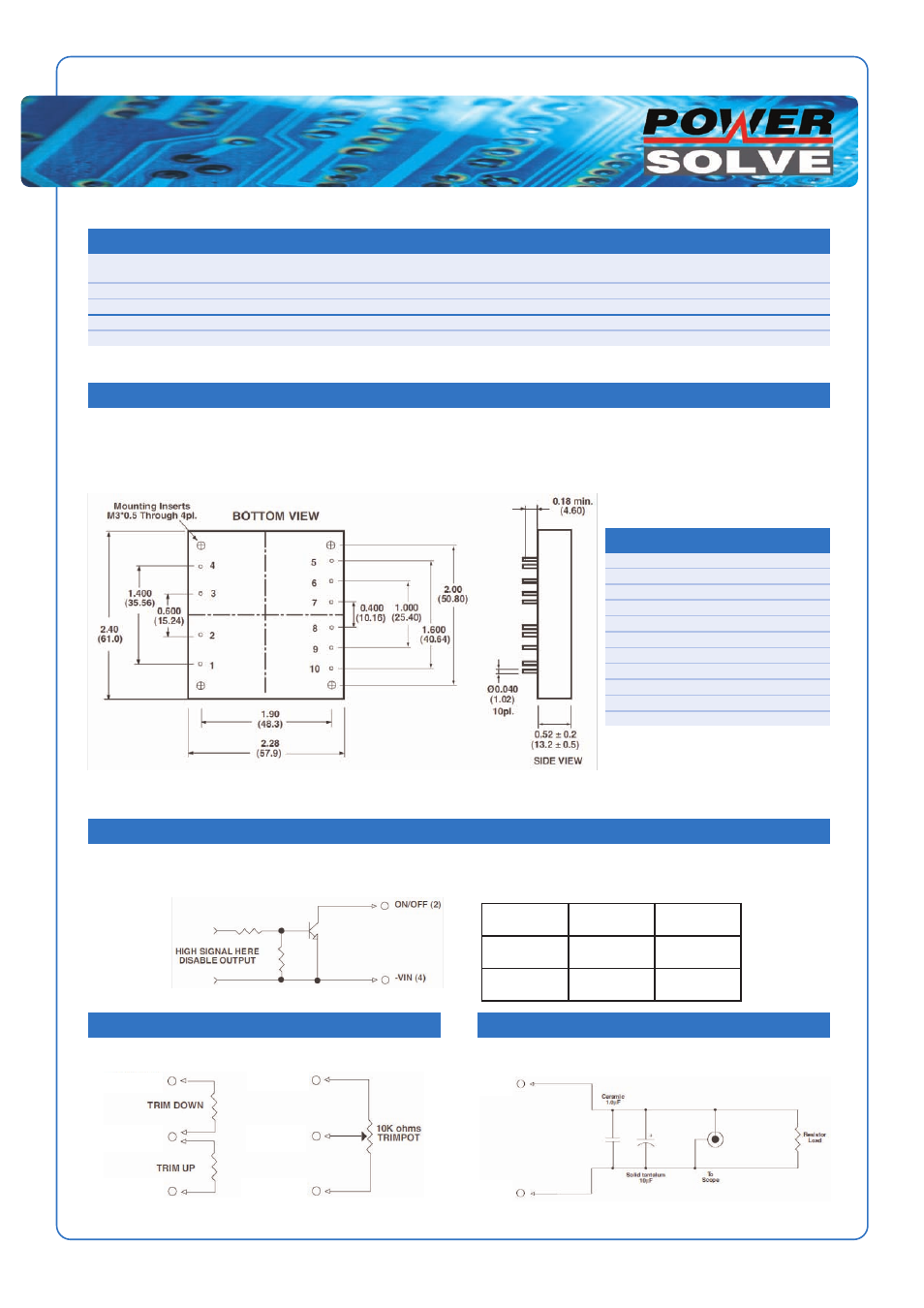

Pin Connection
All dimensions in inches (mm)
Tolerances
Inches x.xx ±0.02 x.xxx ±0.010
Millimeters x.x ±0.5 x.xx ±0.25
External Output Trim
Remote ON/OFF Control
MODEL INPUT OUTPUT OUTPUT INPUT CURRENT % EFF.
VOLTAGE VOLTAGE CURRENT NO LOAD FULL LOAD
PS75-24D05-3V3 18-36 VDC Vo1 = 5V / Vo2 = 3.3V 15A / 15A 50mA 3765mA 83
PS75-24D05-2V5 18-36 VDC Vo1 = 5V / Vo2 = 2.5V 15A / 15A 50mA 3765mA 83
PS75-48D05-3V3 36-75 VDC Vo1 = 5V / Vo2 = 3.3V 15A / 15A 50mA 1860mA 84
PS75-48D05-2V5 36-75 VDC Vo1 = 5V / Vo2 = 2.5V 15A / 15A 50mA 1860mA 84
NOTE: Nominal Input Voltage 24V or 48VDC
Efficiency measured with 15A load on Vo1
Mechanical and Connection Details
The PS75 Dual Series allows the user to switch the module on and off electronically with the remote on/off feature.
The PS75 Dual Series are available with “positive logic” or “negative logic” (option).
Logic State
(Pin 2)
Negative
Logic
Positive
Logic
Logic low-
Switch closed
Module on Module off
Logic high-
Switch open
Module off Module on
Output Noise
The output can be trimmed externally (±5%) using a fixed resistor or a
trimpot as shown. The output noise is measured with a 10µF tantalum and a 1.0µF
ceramic capacitor across the output.
Logic Table
+Vo
TRIM
-Vo
+Vo
TRIM
-Vo
+Vo
-Vo
