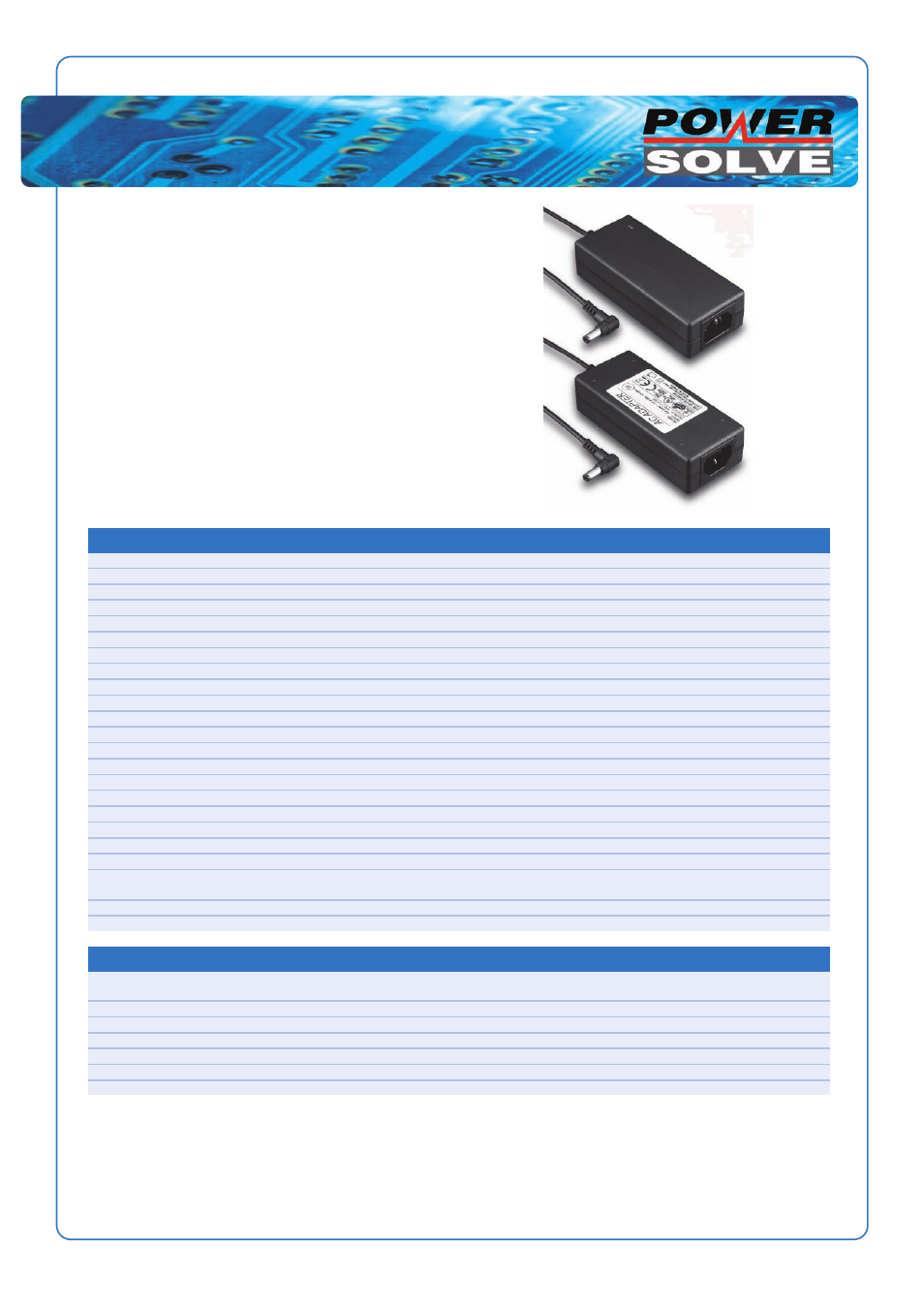

Powersolve PS45E Series User Manual
Desk top power supplies, Features

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Desk Top Power Supplies
PS45E Series
45 Watt Switch Mode
Universal AC Input
INPUT
Input Voltage Range
90 - 264Vac
Frequency
47 - 63Hz
Inrush Current
70A max. @ 240Vac
Conducted EMI
CISPR/FCC Class B
Isolation - Input/Output
4242VDC
Leakage Current
3.5mA max.
OUTPUT
Hold-up Time
8mS typ. @ 115Vac
Short Circuit Protection
Continuous
Over Voltage Protection
Yes
ENVIRONMENTAL
Operating Temperature Range
0°C to +40°C
Storage Temperature Range
-20°C to +85°C
Cooling
Natural convection
GENERAL
Safety Approvals
cUL/UL 60950, TUV EN60950
Dimensions
120.0 x 52.0 x 31.0 mm
4.724 x 2.047 x 1.220 inches
Weight
280g
AC Inlet
IEC320/C14
Electrical Specification
Typical at 25°C, nominal line and 75% load unless otherwise stated.
Features
•
Universal Input Range 90-264VAC
•
Continuous Short Circuit Protection
•
Over Voltage Protection
•
Conductive EMI Meets CISPR/FCC Class B
•
CEC & ErP Level V (Output cable length ≤1800mm)
(PS45E120: Output cable ≤720mm, 16AWG)
•
Optional Output Connectors
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL
OUTPUT
OUTPUT
RIPPLE &
VOLTAGE
LINE
LOAD
% EFF.
VOLTAGE
CURRENT
NOISE
SETPOINT
REG.
REG.
PS45E120
12V
3.75A
120mV pk-pk
±2%
±1%
±3%
84%
PS45E150
15V
3.00A
150mV pk-pk
±2%
±1%
±3%
85%
PS45E180
18V
2.50A
180mV pk-pk
±2%
±1%
±2%
85%
PS45E190
19V
2.37A
190mV pk-pk
±2%
±1%
±2%
85%
PS45E240
24V
1.88A
240mV pk-pk
±2%
±1%
±2%
86%
PS45E480
48V
1.00A
480mV pk-pk
±2%
±1%
±2%
87%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
