Desk Top Power Supplies
Model
Output Voltage
Output Current (AMPS)
Peak1
Ripple2 P-P
Total Regulation3
O/P Power Max.
(Volts)
Min.
Rated.
Max.
(Amps)
(mV)
PSD25-01Y
+3.3V (V1)
0.3
3
4
5
50
±7%
20W
+5V (V2)
0.2
2
3
4
50
±5%
PSD25-02Y
+5V (V1)
0.2
2
3
4
50
±5%
25W
+12V (V2)
0.13
1.3
2
3
120
±5%
PSD25-03Y
+5V (V1)
0.2
2
3
4
50
±5%
25W
+15V (V2)
0.1
1
1.5
2
150
±5%
PSD25-04Y
+5V (V1)
0.2
2
3
4
50
±5%
25W
+24V (V2)
0.1
0.6
1
1.5
240
±5%
Note:
1. Peak output current (total output power must be less than 32W) lasting less than one minute with duty factor less than 5%.
2. Add a 1µF ceramic capacitor and a 10µF E.L. capacitor to the output cable. Peak to Peak and RMS metering equipment shall have a 20 MHZ
response with probes and cables maintaining frequency response from 200Hz to 100MHz bandwidth. Output ripple and spikes are measured
directly at the output terminals of the power supply without the use of the probe ground clip.
3. Total regulation is defined as the static output regulation at 25°C including initial tolerance, line voltage within stated limits. And load currents
within stated limits, but when V1 exceed stated load, the total regulation will be ±10%.
DC plug & pin assignment

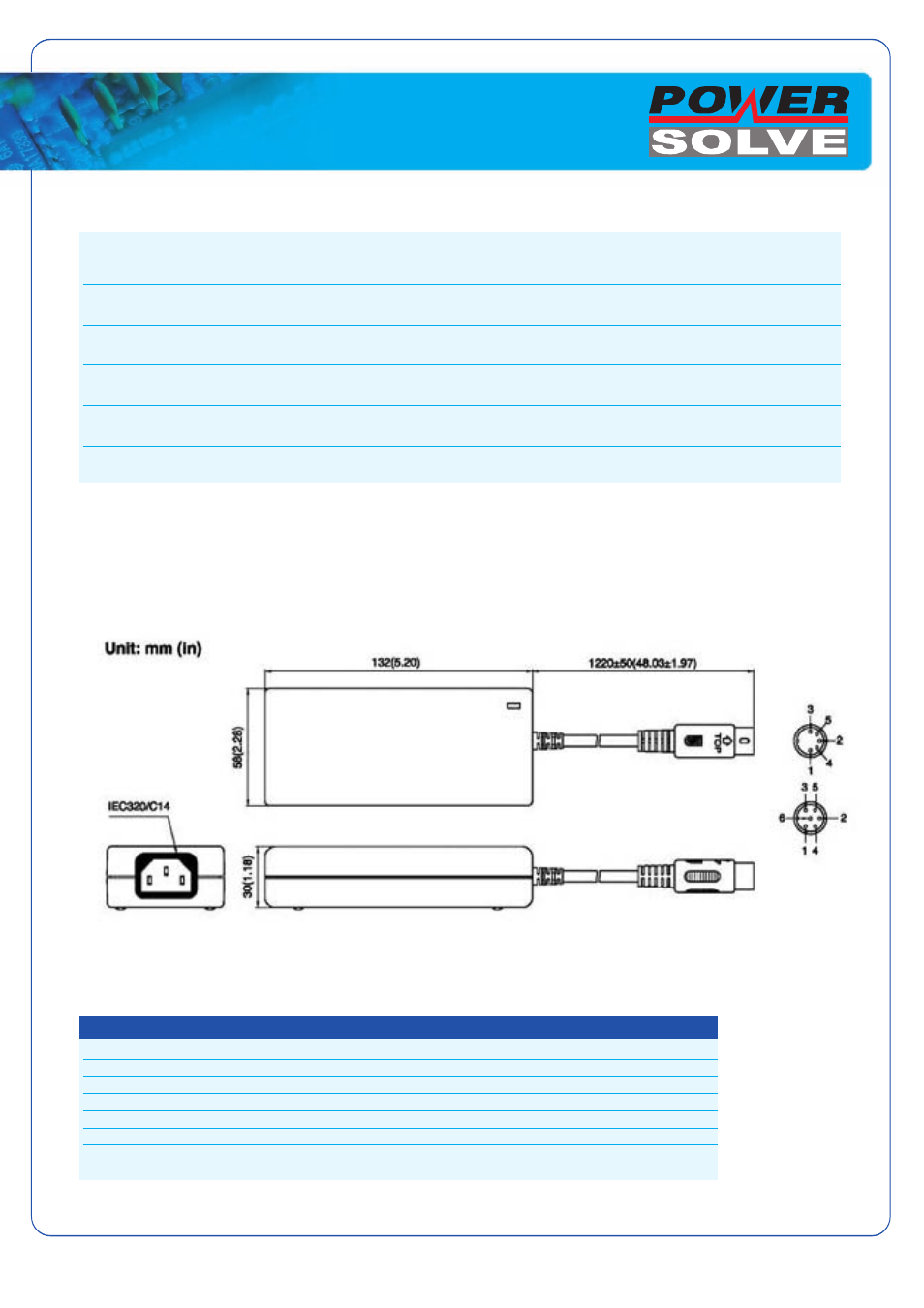

*All dimensions in mm (inch)
1.
GND
2.
GND
3.
NC
DIN PLUG
DIN PLUG
4.
V1
(5P 180)
(6P 240)
5.
V2
6.
V1
Y SEC-GND is isolated from AC-GND
Pin
Function
- 1 4 A 0 2
- 3 5 A 0 2
