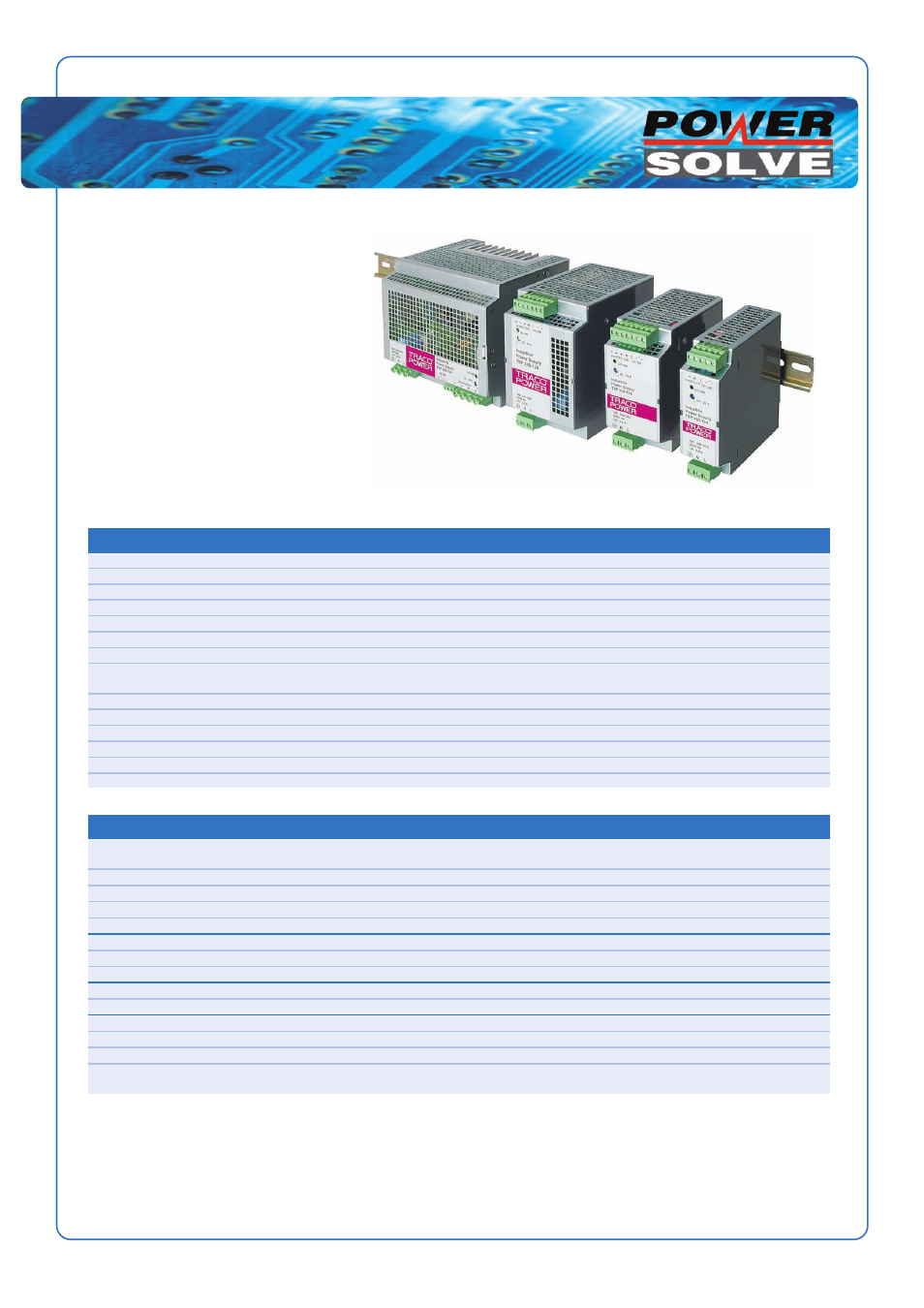

Powersolve TSP Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Industrial Power Supplies
Electrical Specification
Input Voltage Range 85-132VAC / 187-264VAC autoselect
EMI Emissions EN61204-3, EN 61000-6-3
EMC Immunity EN61204-3, EN61000-6-2 (industrial environment)
Output Current Limitation at max. output current (constant current, automatic recovery)
Over Temperature Protection switch off at over temperature, automatic restart
Output Characteristic selectable for parallel operation or battery charging application
Operating Temperature Range -25°C to +70°C (derate at 2%/°C above 40°C)
Safety Approvals UL 60950-1 recognised, IEC/EN 60950-1, UL 508, CB report, EN 50178, EN60204,
EN61558-2-4, SEMI F47, FM 3611, IEC/EN 60079-15 (class I, Div.2), ATEX 94/9EC (opt. EX)
Degree of protection safety class I (IEC 536)
Case protection IP20 (IEC 529)
Vibration & shock IEC 60068-2-6 / IEC 60068-2-27
Connection detachable screw terminals
Casing aluminium (chassis) / stainless steel (cover)
Mounting snap-on mounting on 35mm DIN-rail (optional wall mounting brackets)
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT VOLTAGE OUTPUT RIPPLE & LINE LOAD EFF.
POWER nominal adj. range OVP CURRENT NOISE REG. REG. (typ.)
TSP070-112 78W 12VDC 12-14VDC 20V 6.5A 200mV pk-pk max. 0.5% 0.5% 87%
TSP090-124 90W 24VDC 24-28VDC 35V 3.75A 200mV pk-pk max. 0.5% 0.5% 87%
TSP090-124N 90W 24VDC 24-28VDC 35V 3.75A 200mV pk-pk max. 0.5% 0.5% 87%
TSP090-148 96W 48VDC 48-56VDC 60V 2.0A 200mV pk-pk max. 0.5% 0.5% 87%
TSP140-112 156W 12VDC 12-14VDC 20V 13.0A 200mV pk-pk max. 0.5% 0.5% 87%
TSP180-124 180W 24VDC 24-28VDC 35V 7.5A 200mV pk-pk max. 0.5% 0.5% 87%
TSP180-148 192W 48VDC 48-56VDC 60V 4.0A 200mV pk-pk max. 0.5% 0.5% 87%
TSP360-124 360W 24VDC 24-28VDC 35V 15.0A 200mV pk-pk max. 0.5% 0.5% 87%
TSP360-148 360W 48VDC 48-56VDC 60V 7.5A 200mV pk-pk max. 0.5% 0.5% 87%
TSP600-124 600W 24VDC 24-28VDC 35V 25.0A 200mV pk-pk max. 0.5% 0.5% 87%
TSP600-136 600W 36VDC 36-42VDC 43V 16.5A 200mV pk-pk max. 0.5% 0.5% 87%
TSP600-148 600W 48VDC 48-56VDC 60V 12.5A 200mV pk-pk max. 0.5% 0.5% 87%
add suffix -EX to model number for ATEX certified models, eg. TSP180-112-EX
model TSP090-124N meets EN60950 sect.2.5 and NEC class 2 (limited power source)
Features
• DIN Rail or Wall Mounting (optional)
• Industrial safety approval package
• Power good signal & Remote ON/OFF
• Overload & over temperature protection
• Vibration & shock proof
• Detachable screw terminal block
• Operating temperature range -25°C to +70°C
• ATEX certification for hazardous locations (opt.)
• Rugged, compact metal casing for harsh industrial environments
• Add on Function Modules available - see seperate data sheet
www.powersolve.co.uk TSP Series, 78-600 Watt
