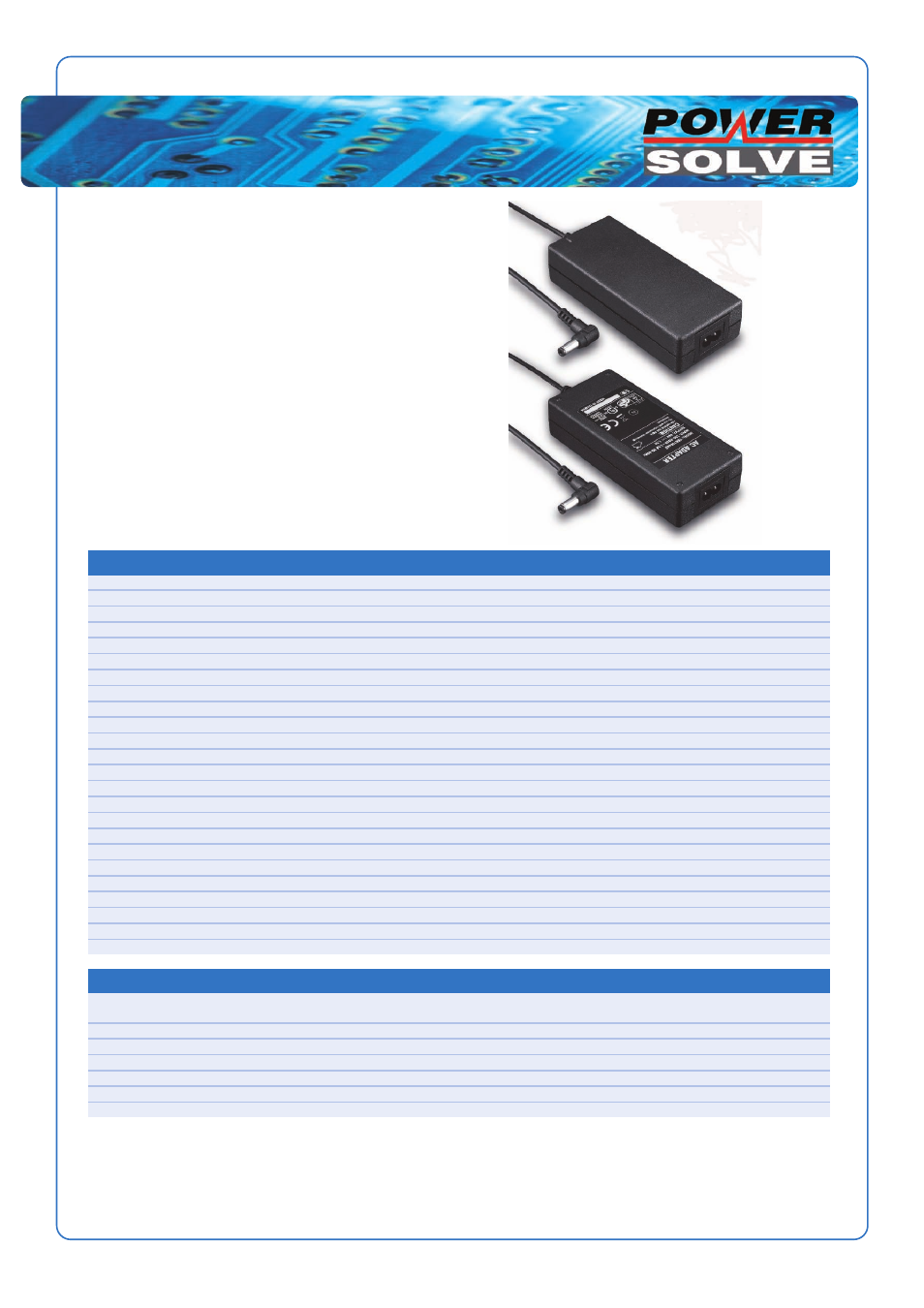

Powersolve PS70E2 Series User Manual
Desk top power supplies, Features

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Desk Top Power Supplies
PS70E2 Series
66 - 70 Watt Switch Mode
Universal AC Input
INPUT
Input Voltage Range
90 - 264Vac
Frequency
47 - 63Hz
Inrush Current
80A max. @ 240Vac
Conducted EMI
CISPR/FCC Class B
Isolation - Input/Output
4242VDC
Leakage Current
0.25mA max.
OUTPUT
Hold-up Time
8mS typ. @ 115Vac
Short Circuit Protection
Continuous
Over Voltage Protection
Yes
ENVIRONMENTAL
Operating Temperature Range
0°C to +40°C
Storage Temperature Range
-20°C to +85°C
Cooling
Natural convection
GENERAL
Safety Approvals
cUL/UL 60950, TUV EN60950
Dimensions
132.0 x 58.0 x 30.5 mm
5.197 x 2.283 x 1.201 inches
Weight
345g
AC Inlet
IEC320/C8
Electrical Specification
Typical at 25°C, nominal line and 75% load unless otherwise stated.
Features
•
Universal Input Range 90-264VAC
•
2 Pole AC Inlet IEC320/C8
•
Class II Insulation
•
Overvoltage & Short Circuit Protection
•
Conductive EMI Meets CISPR/FCC Class B
•
CEC Level IV Compliant (Output cable length ≤1800mm)
(PS70E2120: Output cable ≤1220mm)
(PS70E2150: Output cable ≤1220mm)
•
Optional Output Connectors
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL
OUTPUT
OUTPUT
RIPPLE &
VOLTAGE
LINE
LOAD
% EFF.
VOLTAGE
CURRENT
NOISE
SETPOINT
REG.
REG.
PS70E2120
12V
5.5A
120mV pk-pk
±2%
±1%
±5%
81%
PS70E2150
15V
4.6A
150mV pk-pk
±2%
±1%
±3%
82%
PS70E2180
18V
3.9A
180mV pk-pk
±2%
±1%
±2%
84%
PS70E2190
19V
3.7A
190mV pk-pk
±2%
±1%
±2%
84%
PS70E2240
24V
3.0A
240mV pk-pk
±2%
±1%
±2%
86%
PS70E2480
48V
1.5A
480mV pk-pk
±2%
±1%
±2%
86%
NOTE:
1. Voltage set point at 60% full load.
2. Output noise and ripple measured with 10µF electrolytic & 0.1µF ceramic capacitors across output at 20MHz BW.
3. Line regulation is measured from 100Vac to 240Vac at full load.
4. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% load).
