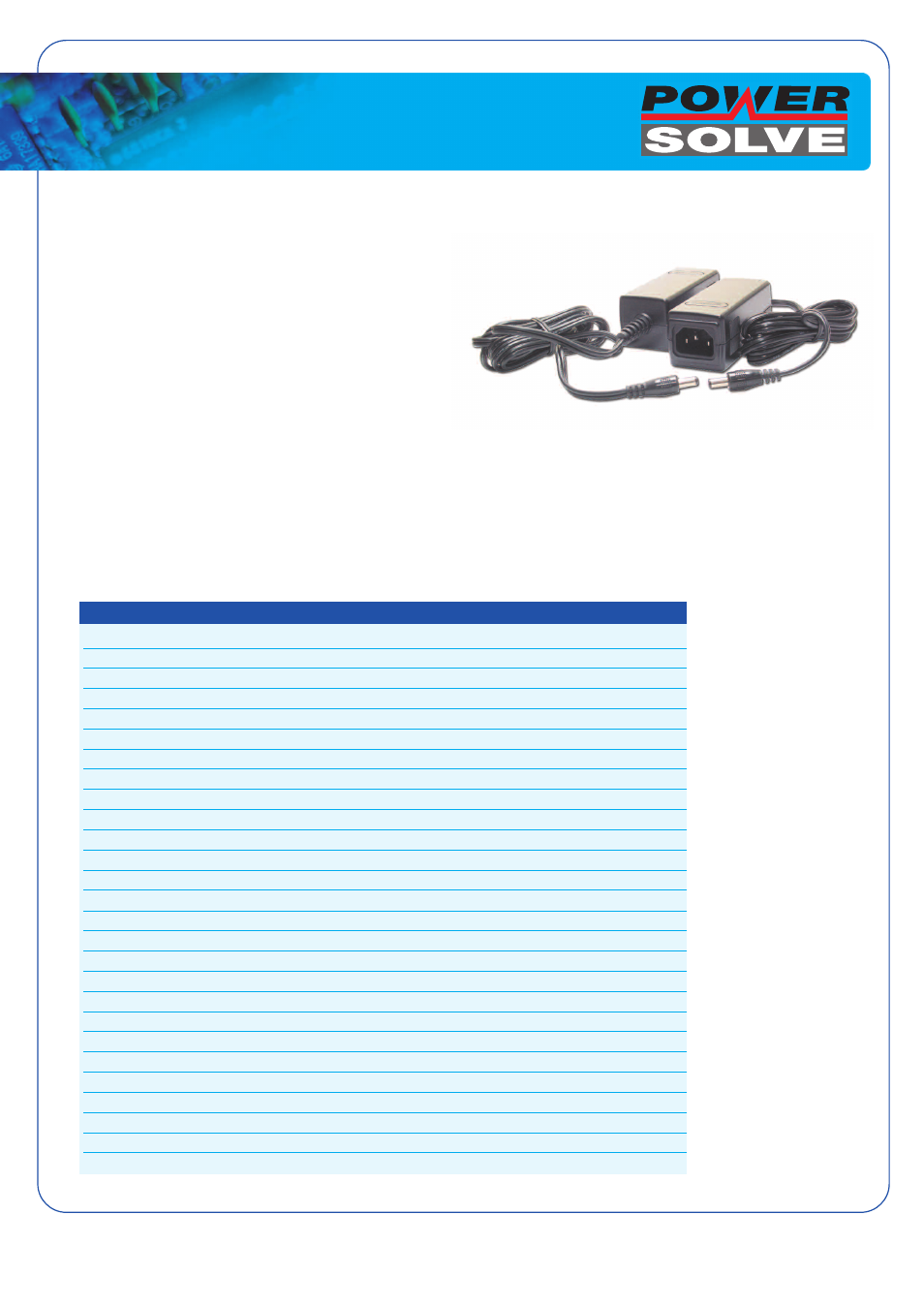

Powersolve PSE15 Series User Manual
Desk top power supplies

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
Desk Top Power Supplies
PSE15 Series
15 Watts Switch Mode
Universal AC Input
Features
•
Single output
•
Optional output connectors
•
Optional inlet connectors
•
100% Burn-in
•
Wide input voltage range 90 to 264 VAC
•
Input surge current protection
•
Overcurrent protection
INPUT
Input voltage
90-264 VAC
Input frequency
47-63 Hz
Input current
0.4A (rms) for 115 VAC, 0.26A (rms) for 230 VAC
Safety ground leakage
current 0.75mA max @ 240 VAC 50Hz
OUTPUT
Output voltage
See rating chart
Output current
See rating chart
Output power range
0 to 15 watts
Ripple
1% Typical 2% Max
Overcurrent protection
All outputs protected to short circuit condition
Temperature coefficient
All outputs ±0.04% / °C maximum
Transient response
4mS full load to half load, 100 VAC Input
ENVIRONMENTAL
Operating temperature
0°C to +70°C, derate linearly above 40°C to 50% @ 70°C
Storage temperature
-40°C to +85°C
Relative humidity
5% to 95% non-condensing
GENERAL
Efficiency 75%
Typical
Hold-up time
5 msec minimum
Line regulation
±0.5% maximum at full load
Insulation resistance
50 Mohm minimum from output to ground
Withstand voltage
3000 VAC from input to output 1500 VAC from output to ground
MTBF
100,000 hours minimum at full load at 25°C ambient
EMI requirements
Meets conduction limits of (a) FCC PART 15 CLASS B (b) CISPR CLASS B
Safety Approvals
UL/cUL60950, TUV/GS (EN60950)
Electrical Specification
The PSE15 Series is a range of plastic fully sealed, splash proof,
desk top power adaptors. All units are UL94V-1 compliant and
carry full UL, cUL (UL60950) and TUV/GS (EN60950) safety
approvals. All models are 100% tested and burned in.
