Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

www.powersolve.co.uk

MODEL

OUTPUT

TOTAL REGULATION

MAX POWER

PSEM50-05

5V 8A

5%

40 Watts

PSEM50-09

9V 5A

3%

45 Watts

PSEM50-12

12V 3.75A

3%

45 Watts

PSEM50-16

16V 2.81A

3%

45 Watts

PSEM50-24

24V 2.08A

2%

50 Watts

PSEM50-48

48V 1.04A

2%

50 Watts

Output Voltage/Current Rating Chart - PSEM50 Series

Standard models fitted with a 1.2 metre output lead fitted with a 180 degree DIN plug.

Options: Alternative output connectors available, consult sales office with your requirements.

Any output voltage available within the range of 2V to 50V DC.

Some of these may be subject to minimum order quantities.

MODEL

OUTPUT 1

OUTPUT 2

OUTPUT 3

MAXIMUM

OUTPUT

POWER

VNOM IMIN IMAX TOL.

VNOM IMIN IMAX TOL. VNOM IMIN IMAX TOL.

PSEM50-3312

+3.3V 0.5A 5A 5%

+12V 0.2A 2A 5%

40W

PSEM50-512

+5V 0.5A 5A 5%

+12V 0.2A 2A 5%

– – –

42W

PSEM50-515

+5V 0.5A 5A 5%

+15V 0.2A 1.5A 6%

– – –

42W

PSEM50-524

+5V 0.5A 5A 5%

+24V 0.1A 1A 5%

– – –

42W

PSEM50-335

+3.3V

1.0A

5A

5% +5V

0.4A

2A

5% – –

26.5W

PSEM50-1212

+12V

0.5A

3A

5%

-12V 0.2A 1A 5%

– – –

42W

PSEM50-1515

+15V 0.5A 2A 5%

-15V 0.2A 1A 5%

42W

PSEM50-524N

+5V

0.5A

5A

5%

-24V

0.1A

1A 5%

– – –

42W

PSEM50-57

+5.1V 0A 1A 5%

+7.2V 0.2A 2.6A 5%

– – – 23.8W

PSEM50-1010

+10.5V 0.2A 2A

5%

-10.5V 0.2A

2A 5%

42W

PSEM50-331212

+3.3V 0.5A 5A 5%

+12V 0.2A 2A 5%

-12V

0A 0.8A 5%

42W

PSEM50-5125

+5V 0.5A 5A 5%

+12V 0.2A 2A 5%

-5V

0A 0.8A

5% 42W

PSEM50-51212

+5V 0.5A 5A 5%

+12V 0.2A 2A 5%

-12V

0A 0.8A

5% 42W

PSEM50-51515

+5V 0.5A 5A 5%

+15V 0.2A 2A 6%

-15V

0A 0.8A

5% 42W

PSEM50-52424

+5V 0.5A 5A 5%

+24V 0.1A 1A 5%

-24V

0A 0.5A

5% 42W

PSEM50-52412

+5V

0.5A

5A

5% +24V

0.1A

1A

5% -12V

0A

0.8A

5%

42W

PSEM50-33125

+3.3V 0.5A 5A 5%

+12V 0.2A 2A 5%

-5V 0A 0.8A 5%

42W

Standard models fitted with a 1.2 metre output lead fitted with a 180 degree DIN plug.

Options: Alternative output connectors available, consult sales office for details.

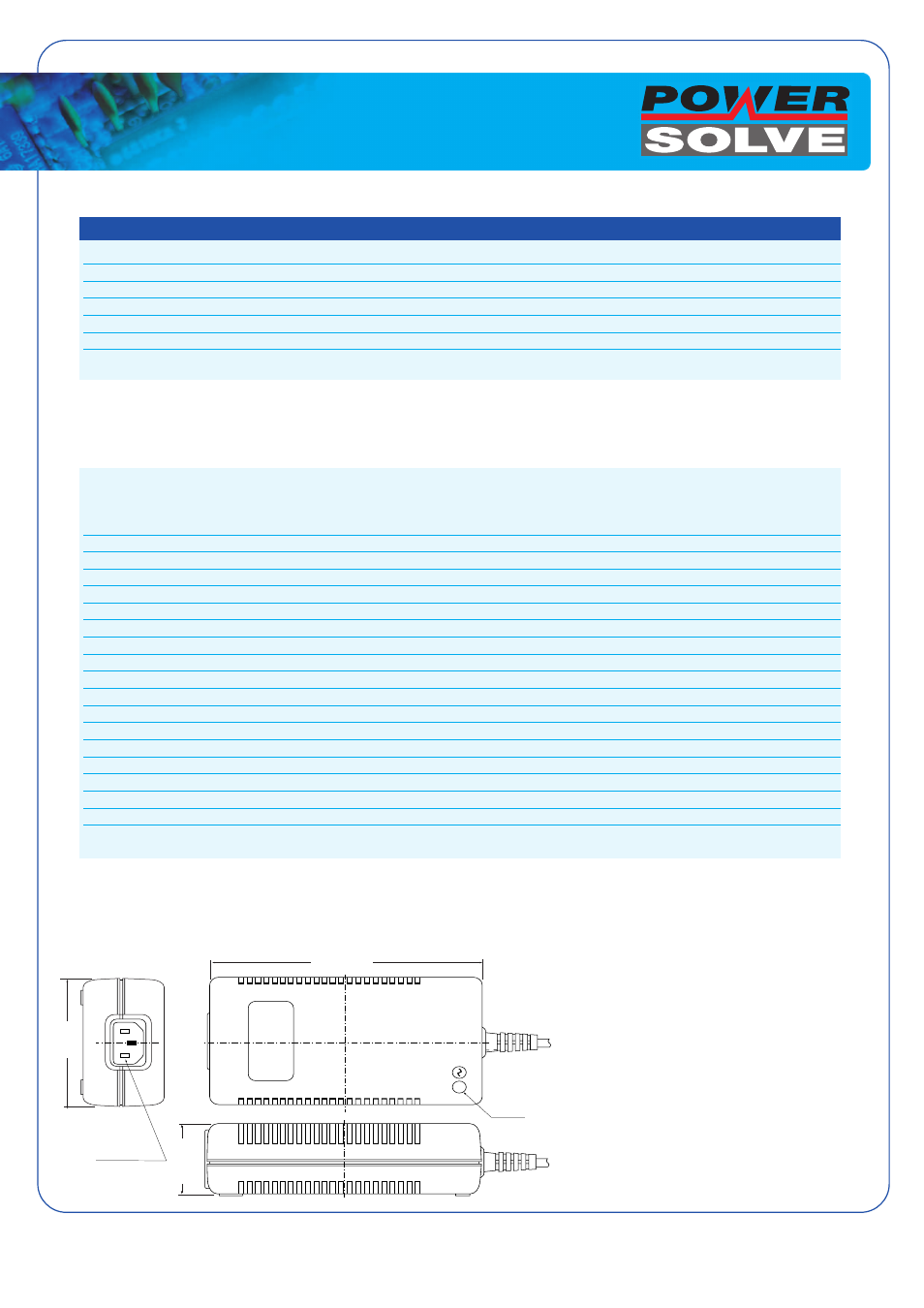

0.6

7

±

0.1

0

.34

±

0.1

146.00 ±1.0

POWER LED

AC INPUT

IEC 320 INLET

NOTE:

1. Dimensions shown in mm
2. Weight: 300-350gs approx.

MECHANICAL DIMENSIONS

mm

Medical Desk Top Power Supplies
