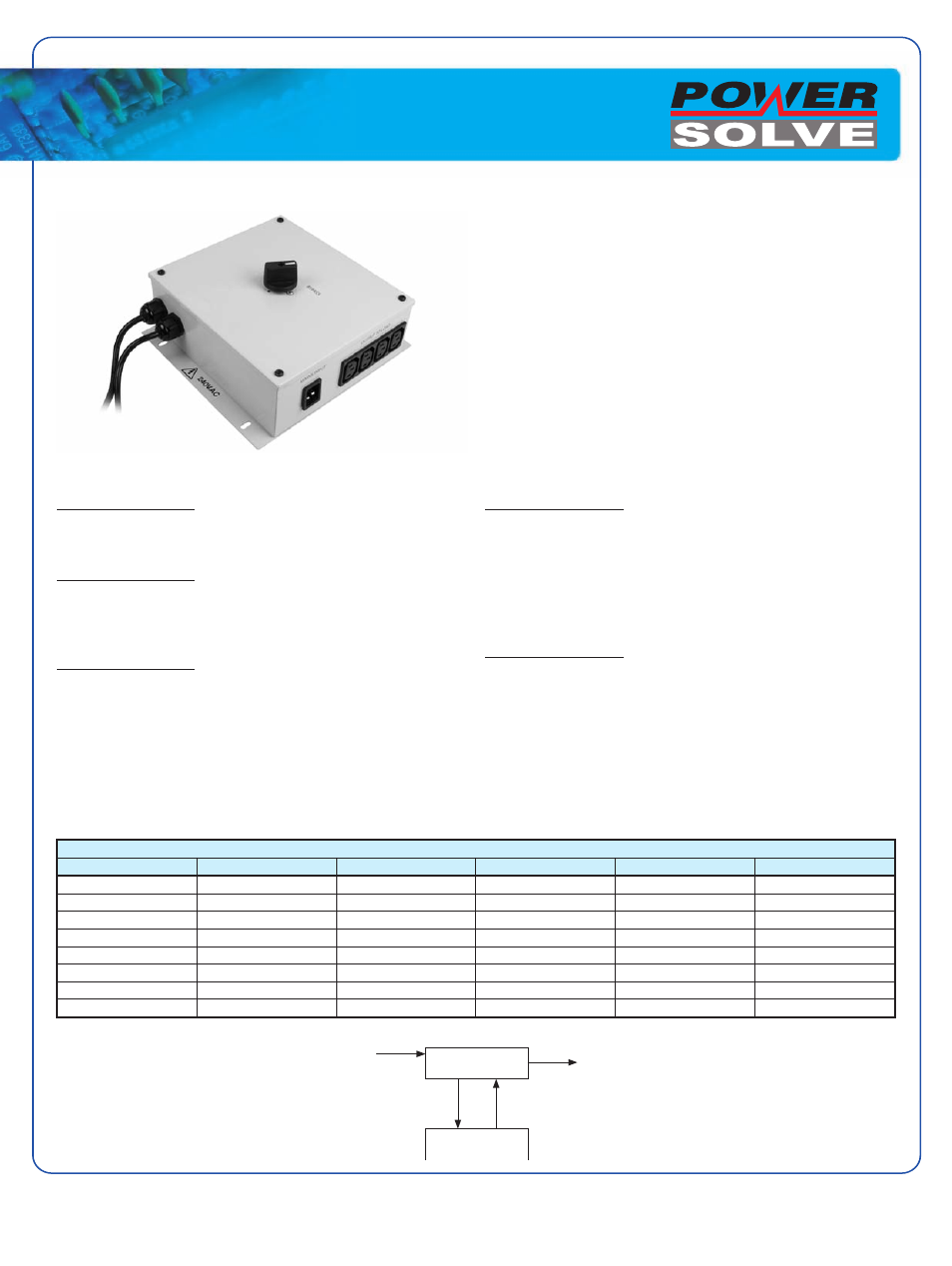

Powersolve XT MBS Series - Manual

www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Specification
1.5-3.0 kVA
• Maintenence Bypass Switch
• Single Input
• Rack Mount / Wall Mounting Format
• 115 VAC & 230 VAC Versions
XT MBS Series
Input
Input Voltage • 115 V single phase, 80-138 V
230 V single phase, 176-276 V
Output
Output Voltage • 115 V single phase, 80-138 V
230 V single phase, 176-276 V
Output Regulation • See Output Characteristics Table
General
Dimensions • See Output Characteristics Table
IP Rating • IP30
Connector Type • Contact Sales Team
1
Environmental
Operating Temperature • 0 ˚C to +40 ˚C
Storage Temperature • -10 ˚C to +85 ˚C
Operating Humidity • <0-95% RH, non-condensing
Storage Humidity • <0-95% RH, non-condensing
Operating Altitude • 1000 metres
Shock & Vibration • <2 g
EMC & Safety
Safety Standards • EN60947 1999 low voltage switchgear
& control gear
Product Description
The Maintenance Bypass Switch (MBS) permits the maintenance or repair of a UPS system by providing a simple but efficient means of
temporarily isolating/removing the UPS from the power circuit without interrupting power to the critical load.
Output Characteristics
Single Phase/Single Feed Input
Rating Voltage Current Format Dimensions (H ,W, D) Model Number
1.5 kVA 230 V 10 A 19” Rack 1U x 19” x155mm XT BBSR 1k6
3.0 kVA 230 V 16 A 19” Rack 1U x 19” x155mm XT BBSR 3k2
1.5 kVA 230 V 10 A Wall 235 x 215 x80mm XT BBSW 1k6
3.0 kVA 230 V 16 A Wall 235 x 215 x80mm XT BBSW 3k2
1.5 kVA 115 V 16 A 19” Rack 1U x 19” x155mm XT BBSR 1k6 115V
3.0 kVA 115 V 32 A 19” Rack TBA TBA
1.5 kVA 115 V 16 A Wall 445 x 400 x100mm XT BBSW 1k6 115V
3.0 kVA 115 V 32 A Wall TBA TBA
Single Input Bypass
Xi BB
Xi UPS
UPS I/P 1 UPS O/P
Mains Feed 1
Output to Load
Single Phase / Single Feed Input
UPS/INVERTERS
13-April-09
