Powersolve IEEE488 Interface - Manual

Features
• IEEE488 or RS232 interfaces designed to be used with analog programmable power supplies
• Voltage and current of the power supply can be programmable and monitored
• Readback of status signals
• Set the power supply in Remote/Local, Remote ShutDown ect.
• Two 14 bit output channels for programming, two 12 - 16 bit input channels for monitoring
• Up to 15 PSC's on one IEEE488 or RS232 BUS to control multiple supplies
• Software calibration, no trimmers
POWER SUP PLY CON TROL LERS
Interface between Computer and analog programmable Power Supply.

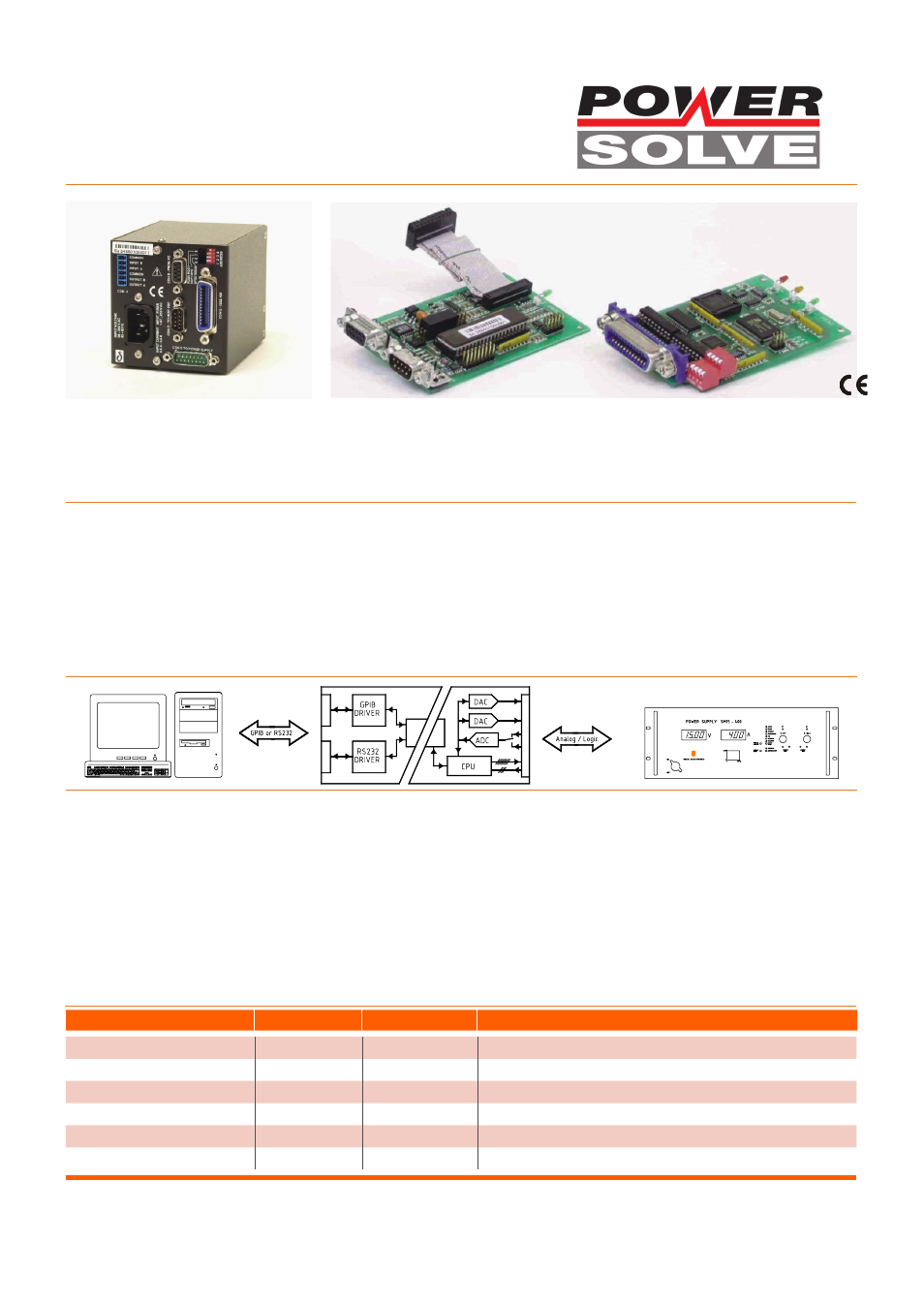

Ex ter nal PSC module In ter nal PSC card
Unit 8A
Arnhem Road
Newbury. RG14 5RU Tel: +44 (0) 1635 521858
Fax: +44 (0) 1635 523771
www.powersolve.co.uk
Programming
IEEE488 :
• The PSC 488 programs a power supply through the IEEE488 Bus
• PSC 488 EXT : external module for bench operations or rail mounting
• Note : the PSC 488 models can be also configured for RS232 programming
RS232 :
• The PSC 232 programs a power supply trough the standard serial RS232 port on a computer
• PSC 232 EXT : external module for bench operation or rail mounting
ES 150 - Series Not available Op tion P148 An a log pro gram ming con nec tor removed
ES 030 - 10 Not avail able Op tion P180 An a log pro gram ming connector removed
SM 800 - Se ries Op tion P255 Op tion P254 An a log pro gram ming con nec tor still available
SM 1500 - Se ries Op tion P184 Op tion P183 An a log pro gram ming con nec tor still available
SM 3000 - Series Op tion P164 Op tion P146 An a log pro gram ming con nec tor re moved
SM 6000 - Series Op tion P156 Op tion P155 An a log pro gram ming con nec tor still avail able **
Mod els IEEE488 RS232 Com ments
**Note : Ex cept on SM 600-10 and SM 300-20
