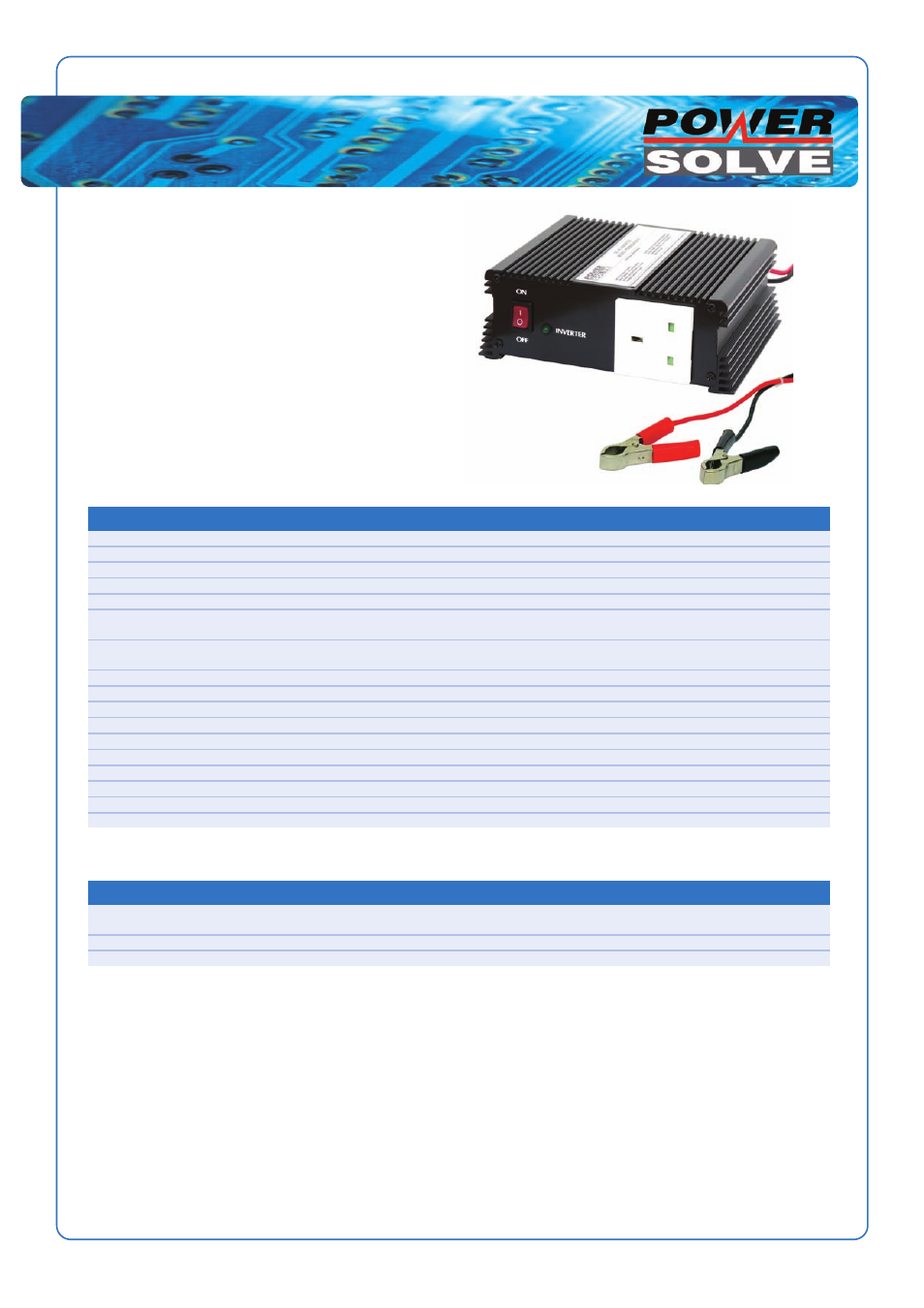

Powersolve PSI350 Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-AC Inverters
PSI350 Series
350 Watt
Features
• Solid State design
• Compact and lightweight
• High efficiency up to 90%
• Thermal protection
• On/Off switch
• 12VDC or 24VDC inputs
• 230Vac output (115Vac optional)
Input Voltage See table
Output Voltage 230Vac ±5% (115Vac optional)
Output Waveform Quasi Sine Wave
Output Frequency 50Hz (60Hz for 115Vac output)
Efficiency Up to 90%
Low Battery Alarm 11VDC ±0.5VDC (12V Input)
21VDC ±1.0VDC (24V Input)
Low Battery Shutdown 10.5VDC ±0.5VDC (12V Input)
20VDC ±1.0VDC (24V Input)
Thermal Protection 60°C ±10°C
Overload Protection By thermal shutdown
Short Circuit Protection Via input fuse
Input Polarity Protection Via input fuse
Dimensions 150 x 173 x 65mm
Weight 1.3Kgs
Input Connector 600mm flying lead with croc clips
Output Socket Stock items UK or Euro 3 pin (/EU)
Cooling Integral fan
Safety CE and E marks
Electrical Specification
Input Voltage and Current Ratings
MODEL DC INPUT INPUT FUSE STANDBY CURRENT OUTPUT POWER OUTPUT POWER
(continuous) (peak)
PSI350/12 10.5-15V 35A 0.60A typical 350W 500W
PSI350/24 21.5-30V 20A 0.40A typical 350W 500W
NOTE:
For European output socket add /EU to model number. Example PSI350/12/EU
For 115Vac output option consult sales office
