AC-DC Battery Backed Power Supply
Output Voltage and Current Ratings
MODEL OUTPUT OUTPUT CURRENT RIPPLE & LINE LOAD POWER EFF.
VOLTAGE RATED MAX. (8) NOISE (2) REG. (4) REG. (5) Max.
PQP75-G
CH1 13.8V 3.7A 5.5A 100mV p-p ±0.5% ±0.5%
75.9W 86%
CH2 13.8V 1.8A 2.07A 150mV p-p
PQP75-GB
CH1 13.8V 2.6A 4.4A 100mV p-p ±0.5% ±0.5%
75.72W 85% CH2 13.8V 1.8A 2.07A 150mV p-p
CH3 5.0V 3A 3.0A 100mV p-p ±0.5% ±1.5%
PQP75-L
CH1 27.6V 1.75A 2.75A 100mV p-p ±0.5% ±0.5%
75.9W 88%
CH2 27.6V 1.0A 1.15A 150mV p-p
PQP75-LB
CH1 27.6V 1.2A 2.2A 100mV p-p ±0.5% ±0.5%
75.72W 87% CH2 27.6V 1.0A 1.15A 150mV p-p
CH3 5.0V 3.0A 3.0A 100mV p-p ±0.5% ±1.5%
PQP100-G
CH1 13.8V 4.8A 7.3A 100mV p-p ±0.5% ±0.5%
100.74W 86%
CH2 13.8V 2.5A 2.875A 150mV p-p
PQP100-GB
CH1 13.8V 3.7A 6.2A 100mV p-p ±0.5% ±0.5%
100.56W 85% CH2 13.8V 2.5A 2.875A 150mV p-p
CH3 5.0V 3.0A 3.0A 100mV p-p ±0.5% ±1.5%
PQP100-L
CH1 27.6V 2.15A 3.65A 100mV p-p ±0.5% ±0.5%
100.74W 87%
CH2 27.6V 1.5A 1.725A 150mV p-p
PQP100-LB
CH1 27.6V 1.6A 3.1A 100mV p-p ±0.5% ±0.5%
100.56W 85% CH2 27.6V 1.5A 1.725A 150mV p-p
CH3 5.0V 3A 3.0A 100mV p-p ±0.5% ±1.5%

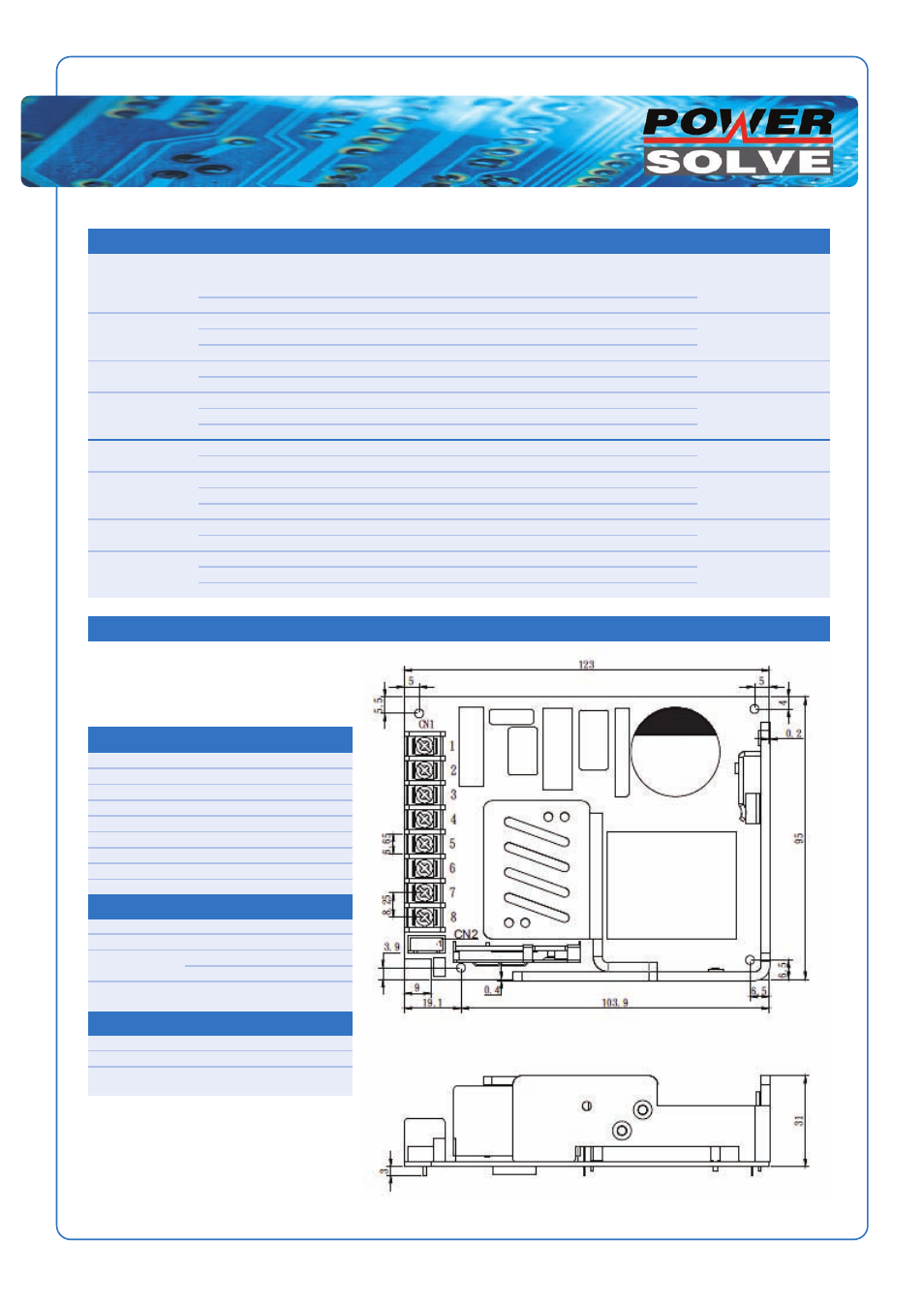

Mechanical & Connection Details
Input/Output (CN1)
Pin Function
1 Live
2 Neutral
3 Earth
4 DC O/P GND
5 DC O/P V+
6 Battery +ve
7 Battery -ve
8 +5V (GB/LB only)
Alarm Output (CN2) G/L versions
1 AC OK
2 BAT Low
3
G (13.8V/20mA)
L (27.6V/20mA)
Mating connector: JST XHP-3 or equivalent
Terminals: JST SXH-001T-P0.6 or equivalent
Alarm Output (CN2) GB/LB versions
1 & 2 AC OK (relay contacts)
3 & 4 BAT Low (relay contacts)
Mating connector: JST XHP-4 or equivalent
Terminals: SXH-001T-P0.6 or equivalent
