AC-DC Power Modules
Mechanical & Connection Details
Output Voltage and Current Ratings (15, 30 & 60W versions)
MODEL OUTPUT OUTPUT 1 OUTPUT 2 OUTPUT 3 RIPPLE & LINE LOAD
POWER NOISE REG. REG.
TMP15105 5.0VDC / 3000mA 1.8% (mV pk-pk) 1.0% 1.0%
TMP15112 12VDC / 1250mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP15115 15VDC / 1000mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP15124 24VDC / 625mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP15148 48VDC / 310mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP15212 15W +12VDC / 650mA -12VDC / 650mA 1.3% (mV pk-pk) 1.0% 2.5%
TMP15215 +15VDC / 500mA -15VDC / 500mA 1.3% (mV pk-pk) 1.0% 2.5%
TMP15252 +5VDC / 1500mA +12VDC / 625mA 1.3% (mV pk-pk) 1.0% 5.0%
TMP15512 +5VDC / 2000mA +12VDC / 200mA -12VDC / 200mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP15515 +5VDC / 2000mA +15VDC / 150mA -15VDC / 150mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP30105 5.0VDC / 6000mA 1.8% (mV pk-pk) 1.0% 1.0%
TMP30112 12VDC / 2500mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP30115 15VDC / 2000mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP30124 24VDC / 1250mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP30148 48VDC / 625mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP30212 +12VDC / 1300mA -12VDC / 1300mA 1.3% (mV pk-pk) 1.0% 2.5%
TMP30215 +15VDC / 1000mA -15VDC / 1000mA 1.3% (mV pk-pk) 1.0% 2.5%
TMP30252 30W +5.0VDC / 3000mA +12VDC / 1250mA 1.3% (mV pk-pk) 1.0% 5.0%
TMP30512 +5.0VDC / 3000mA +12VDC / 600mA -12VDC / 600mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP30515 +5.0VDC / 3000mA +15VDC / 500mA -15VDC / 500mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP30522 +5.0VDC / 1500mA +12VDC / 1000mA -12VDC / 250mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP30316 +3.3VDC / 4000mA +5.0VDC / 1500mA +12VDC / 250mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP30317 +5.0VDC / 4500mA +3.3VDC / 1000mA +12VDC / 250mA 1.3% (mV pk-pk) 1.0% 1.0%/4.0%
TMP60105 5.1VDC / 10,000mA 1.8% (mV pk-pk) 1.0% 1.0%
TMP60112 12VDC / 5000mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP60115 60W 15VDC / 4000mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP60124 24VDC / 2500mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP60136 36VDC / 1670mA 1.3% (mV pk-pk) 1.0% 1.0%
TMP60148 48VDC / 1250mA 1.3% (mV pk-pk) 1.0% 1.0%
* For chassis mount version add suffix C
Pin TMP07 TMPM10 TMP10
Single Dual
1 AC(N) AC(N) AC(N) AC(N)
2 AC(L) AC(L) AC(L) AC(L)
3 +Vout +Vout -Vout Vout2
4 -Vout -Vout N/C Comm.
5 N/A N/A +Vout Vout1

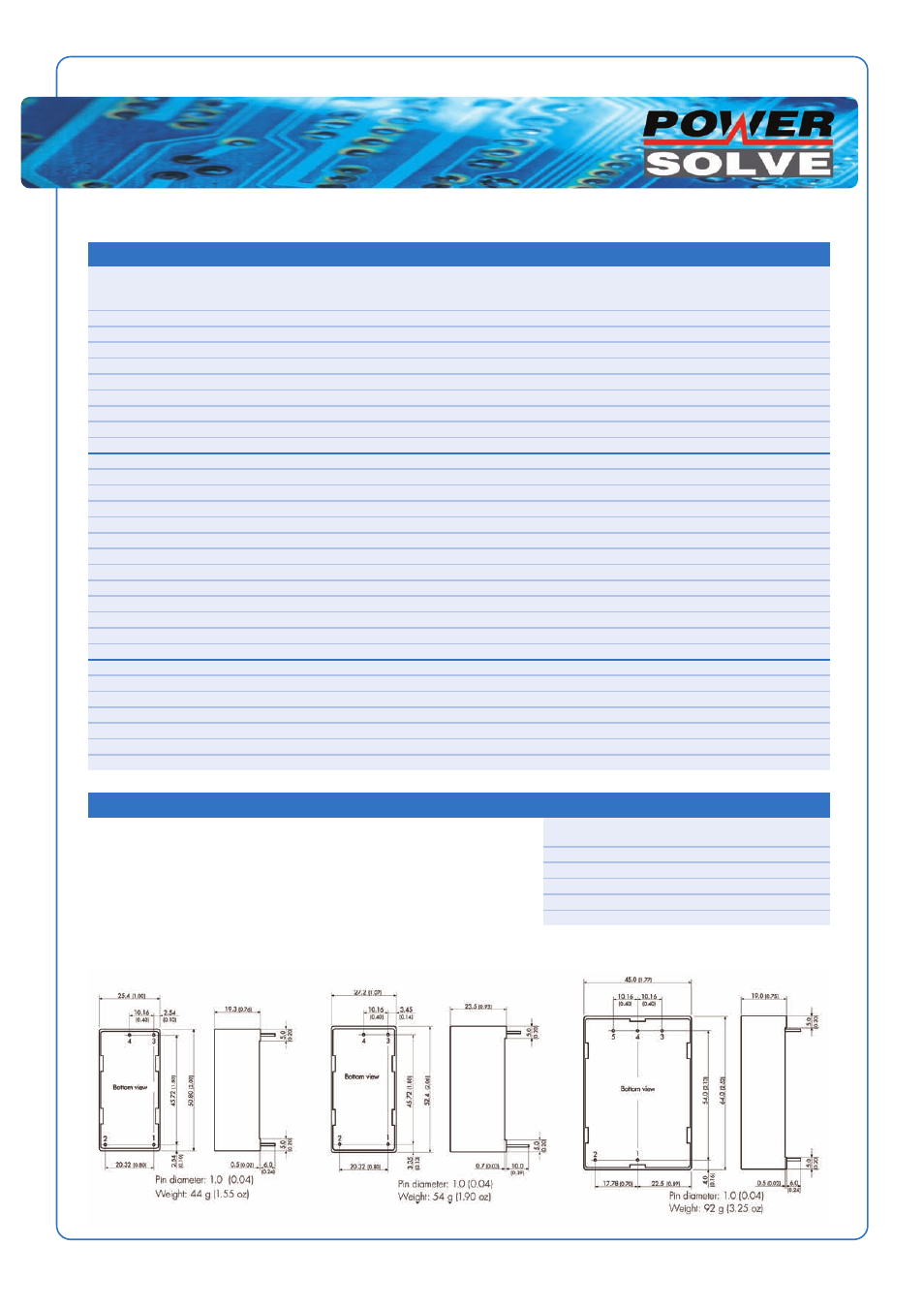

Dimensions in mm (inches)
Case Tolerances: ±0.5 (±0.02)
Pin Pitch Tolerances: ±0.25 (±0.01)
Mounting Hole Tolerance: ±0.25 (±0.02)
TMP07 Models TMPM10 Models TMP10 Models
