Digital input: Remote ShutDown.

Input voltage:

connector 'to prog. source':

3 - 15 V

Input impedance:

connector 'to prog. source':

1.8 kΩ

General

Capacitance input / case

3.2 nF

Operating temperature

– 20 to + 50 °C

Storage temperature

– 40 to + 85 °C

Humidity

max. 95% RH, non condensing, up to 40 °C
max. 75% RH, non condensing, up to 50 °C

Isolation voltages

Input-Output 1000V Basis isolation
Input-Case 1000V Basic isolation

Connections ISO AMP MODULE

Supply voltage

15 - 30 V DC, max 75 mA.

2 pole terminal block

To connect the external supply voltage.

15P female D-connector

To connect the module to a programming source.

15P male D-connector

To connect the module to the power supply.

The four analog channels are factory-calibrated within 0.1 % for 5 V input and output voltages.
Selecting a 10 V input and/or output without re-calibrating can introduce an extra full scale error of 0.1 %.
Offset, full scale error, non-linearity and temperature coefficient have to be added to the specifications of the power supply.

Analog inputs / outputs: CV, CC programming and CV, CC monitoring

Offset

± 60 µV typical, ± 180 µV max.

Full scale error

0.1 % calibrated.

Non-linearity

0.01 % typical, 0.05 % max.

Temperature coefficient

– 65 ppm typical.

Common mode rejection

80 dB @ 50 Hz.

Voltage range:

connector 'to power supply':
connector 'to prog. source':

0 - 5 V
0 - 5 V or 0 - 10 V selectable

Input impedance:

connector 'to power supply':
connector 'to prog. source':

200 kΩ
200 kΩ for 5 V input, 400 kΩ for 10 V input

Output impedance: connector 'to power supply':

connector 'to prog. source':

100 Ω / max. 4 mA
1 Ω / max. 4 mA

Reference voltage

5.114 V ± 15 mV (Ro = 10 Ω / max. 4 mA), TC = 20 ppm/°C

Auxiliary supply voltage

11.4 - 12.7 V / R

i

= 470 Ω

Digital status outputs: CC, LIM, OT, ACF and DCF

Output voltage:

connector 'to prog. source':

+ 5 V / max. 2 mA

Output impedance: connector 'to prog. source':

5 Ω

Ordering information

Order ISO AMP MODULE for the external module.
The external module can be used in combination with all programmable Delta Elektronika power supplies.

Accessories

The following is supplied with the ISO AMP MODULE:

Rail adapter for 35 mm rail mounting

Wall mounting adapter

0.6 m cable with 15 pole D-connectors.

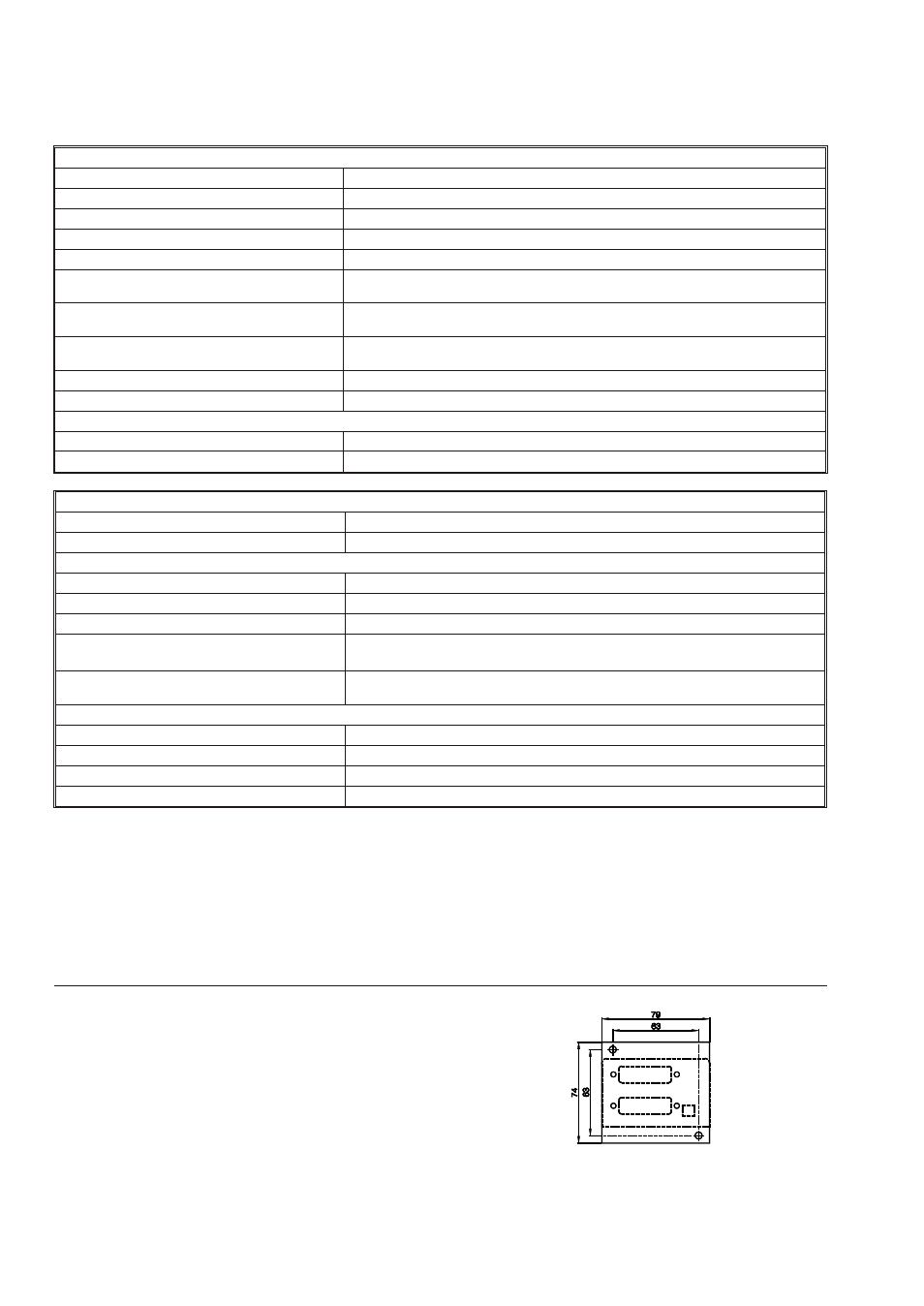

Dimensions wall mounting adapter

Specifications
