Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771

www.powersolve.co.uk

[email protected]

p.2/2 03.12B

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

A

B

118,5

AC Input

90..132Vac / 184..265Vac , 47…63Hz , 250…375Vdc

AC Input Rating

115Vac <16.8A 230Vac <9A

Rated DC Voltage

72V

110V

150V

220V

300V*

Rated DC Current

13.9A (1000W)

9.1A (1000W)

6.7A (1000W)

4.55A (1000W)

3.33A (1000W)

Ripple [mVpp] 230Vac

200 (20MHz)

250 (20MHz)

250 (20MHz)

300 (20MHz)

400 (20MHz)

Output adj. range

58...86V

86...132V

132...180V

180...240V

264...360V

Order code: HPV10001.Vout+(T= DIN Rail ; W= wall mount) Example: 150V for DIN-Rail = HPV10001.150T

*upon request

Tolerance

± 1%

Load regulation

< ± 0.1% 10-100%, 100-10%

Load Switch

<1ms 10-100%, 100-10%

Minimum Load

0 A

Efficiency

Up to 93%

Load Protection

1,05x I

rated

,auto recovery

Voltage Protection

140% of U

out

, auto recovery

Short Circuit Protection

Continuous

Temperature Control

Yes

Hold Up Time (230Vac)

> 30ms

Inrush Current (230Vac)

< 162A


Terminal Connects:

1 = GND

SK1

2 = L

3 = N


1 = DC +

2 = DC +

SK2

3 = DC -

4 = DC -













Softstart

100ms typical

Cooling

Controlled Fan (EBM-Papst)

Ambient Temperature

- 20°C…+70°C

Storage Temperature

- 40°C…+85°C

EMI

EN55022 class B

EMS

EN61000-6-2,3

Safety

cUL60950, EN60950-1

Safety class 1(A)

VDE0805, VDE0100

Air & Surface Leakage Paths

> 8mm

Input/Output

Galvanic insulated

DC Fail Relay (galv. Insulated)

Not available

MTBF IEC61709

400000h

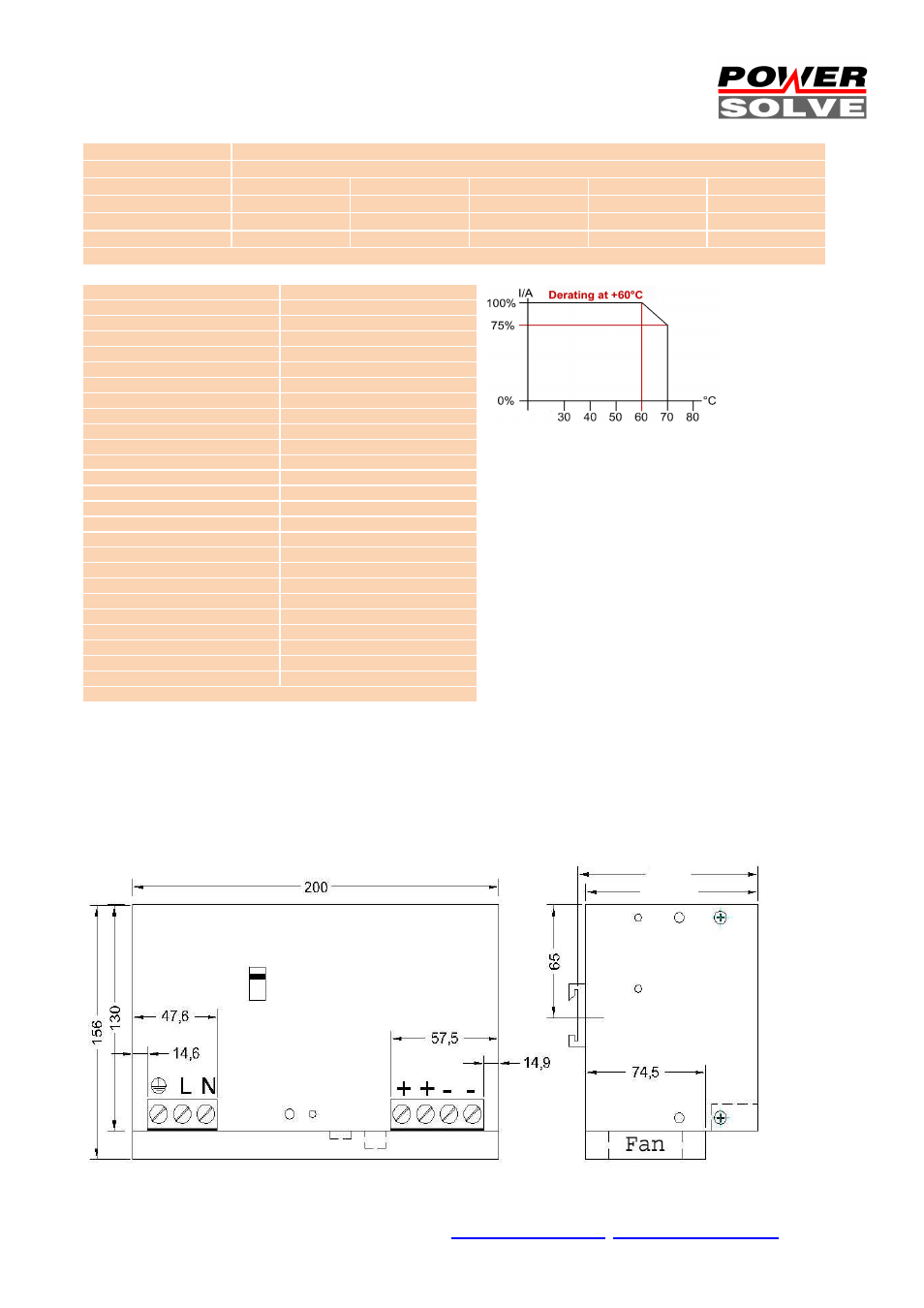

Dimensions (HxWxD)

156x200x118.5mm

Weight

3300g

Screw Connectors (AC & DC)

AWG22...AWG6

Options for military use available upon request

Conception:
The HPV power supply series realizes very high power efficiency in a
space-saving housing. This design enables Green Power applications
and allows free air convection. Latest generation electrical devices
relate to the high reliability of all Camtec products. The Camtec
philosophy is, to employ 125°C low ESR ultra long life capacitors
where expedient to achieve a superior lifetime of our products. The
used screw terminals allow easy to wire and smooth service.


Parallel Operation Mode:
Parallel operation of equal HPV-Power-Supplies provides you
a higher output power. Make sure that the DC voltages differ
at only ±1% and that DC cables are equal of equal length.
Series Operation Mode:
To raise the output voltage you can drive equal HPV Power
Supplies in series, too.


HPV1000

114,5
