Peerless-AV PLP-UNM-S - Installation - Manual (Page 5)

5 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12
Mounting and Removing Flat Panel Screen
Refer to mount instruction sheet for attachment of adapter plate to mount.

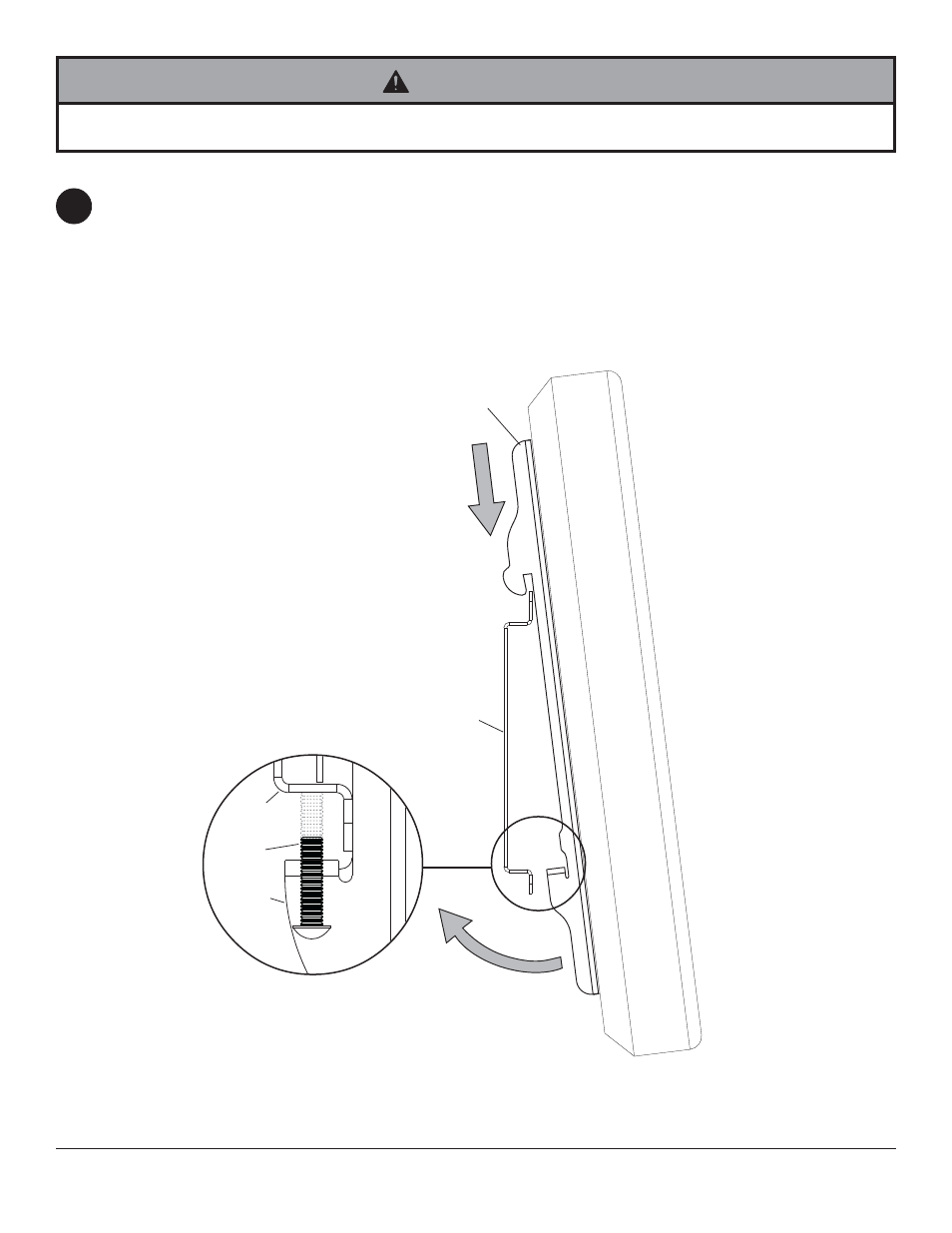

Hook adapter brackets (BB) onto adapter plate (AA), then slowly swing screen in as shown. Turn screws clockwise at
least six times to prevent screen from being removed as shown in detail 1.
NOTE: Tighten screws using allen wrench (CC).
Screen can be adjusted horizontally if desired.
NOTE: To lock the screen down, tighten screws to adapter bracket as shown in detail 1.
To remove screen from mount, loosen screws, swing screen away from mount, and lift screen off of mount.
2
AA
BB
DETAIL 1
SCREWS
AA
BB
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
WARNING
© 2012, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
