3 of 23 ISSUED: 08-24-12 SHEET #: 180-9036-3 10-31-12
C
D
E
N
M
G
Q
J
F
K
A
B

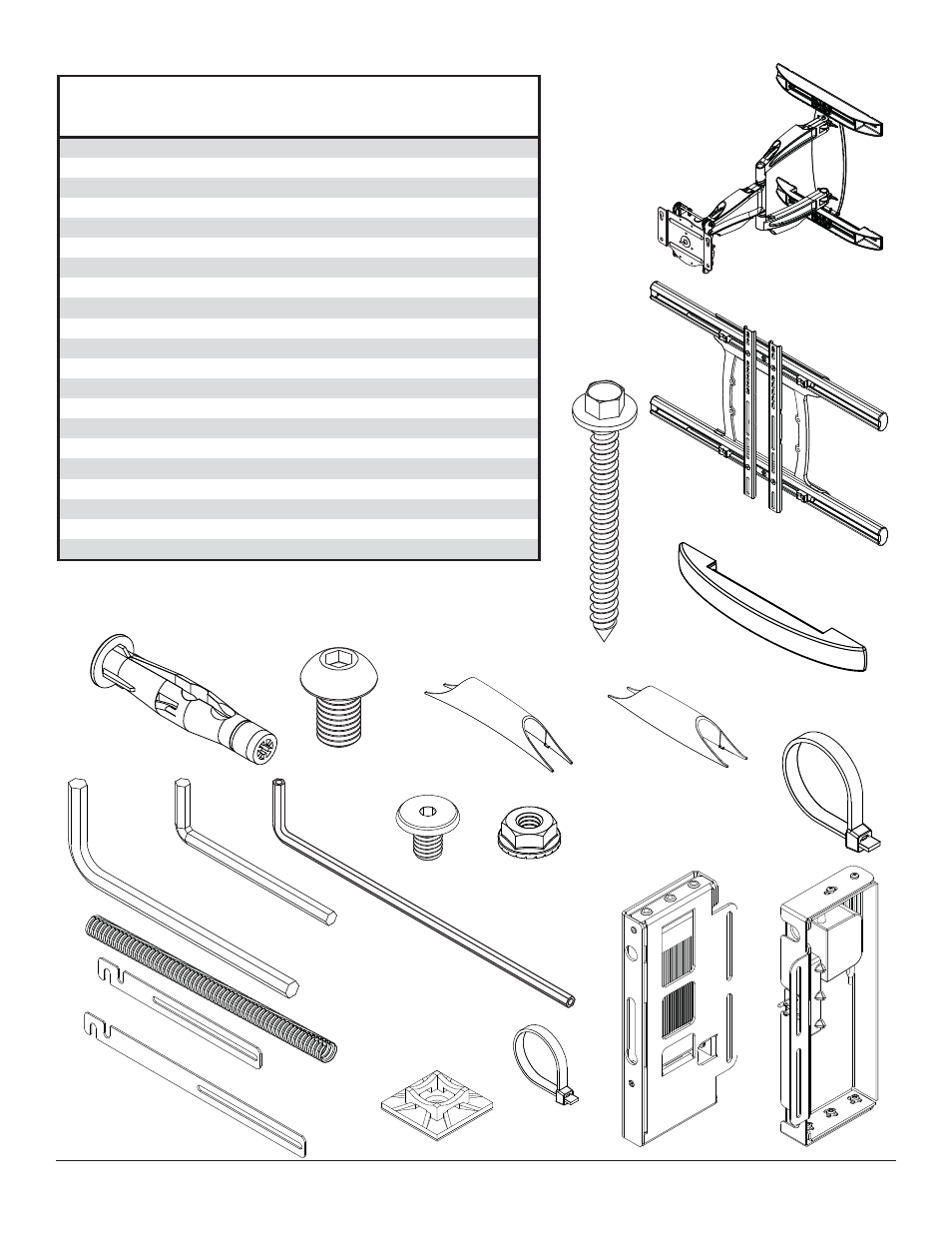

Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included with your product.
H
O
T
U
P
I L
R
S
WL-SA761PU-200
Description Qty. Part #
A wall arm assembly 1 095-P1992
B universal adapter bracket 1 095-P1635-2
C wood screws 4 520-1243
D concrete anchors 4 590-0321
E M10 x 15 mm socket head screw 2 520-9262
F wall plate cover 2 590-1325
G cable tie .187 x 7.5 lg. 16 590-1168
H 6 mm allen wrench 1 560-9716
I 5 mm allen wrench 1 560-9640
J rear cable cover 2 590-P1326
K front cable cover 2 590-P1327
L 4 mm allen wrench 1 560-9646
M wireless receiver assembly 1 180-1092
N power module assembly 1 180-1015
O cable management sheath 1 590-9468
P cable tie .04 x 5.75 lg. 2 560-9711
Q decorative screw 1/4-20 8 520-2325
R lock nut 1/4-20 8 530-1021
S enclosure mounting bracket, small 4 120-1195
T enclosure mounting bracket, large 4 120-1196
U cable tie anchor 2 590-9469
Parts List
