2 Note: Before attaching top cover (D) review punch
out holes on page 1.
Slide top cover (C) into slots on plenum box (A) and
secure using one M5 x 10 mm phillips screws (D).
C
A
D
Use ACC460 instructions for installation.
Attaching Plenum Box to CMJ453 Option 3
(Attaching Plenum Box to ceiling tray)

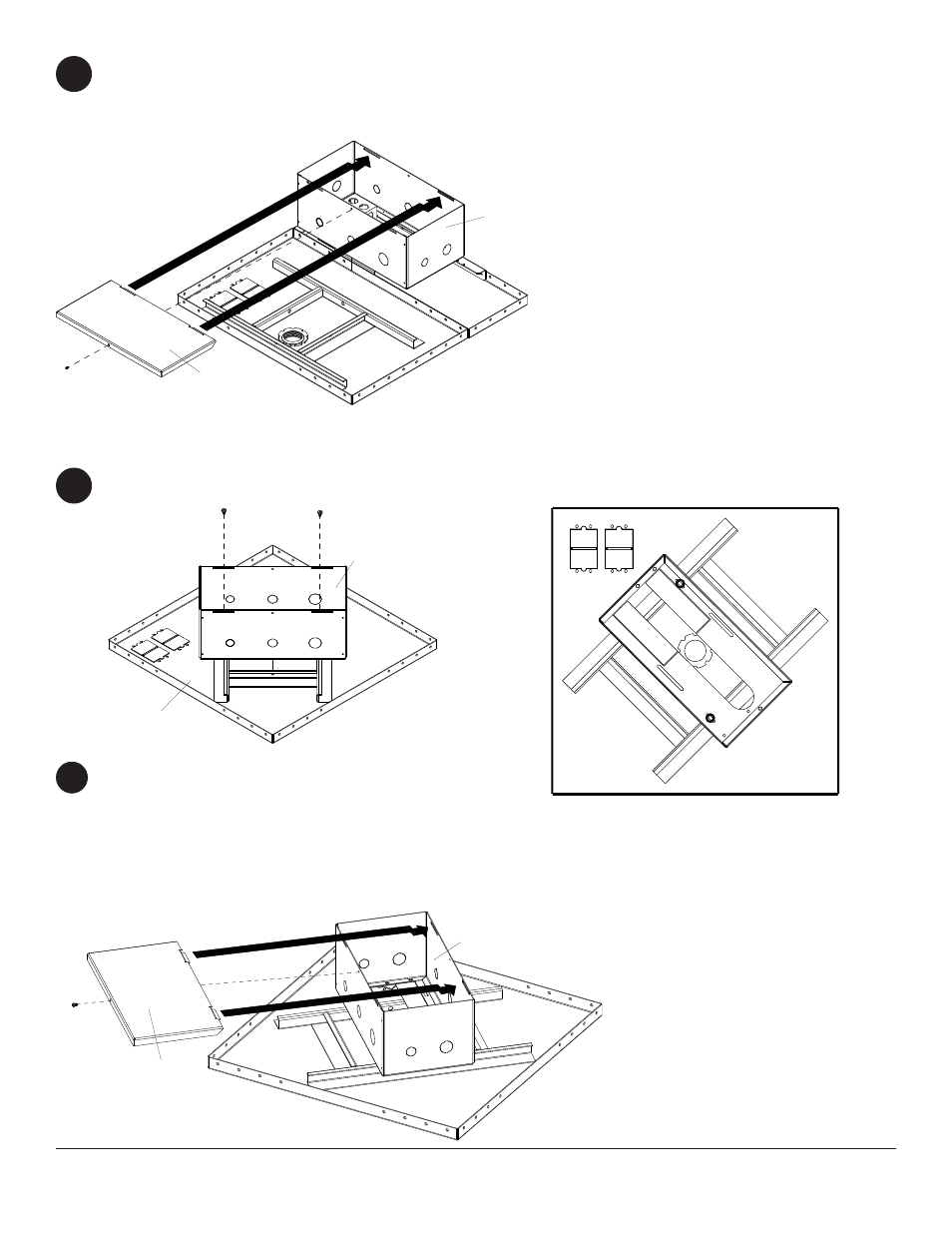

Attach plenum box (A) to CMJ450 ceiling tray using two #10 x 3/8" phillips pan TEK screws (F) as shown in detail 1. 1
Attaching Box to CMJ450
Detail 1
CEILING TRAY
A
F
2 Note: Before attaching top cover (D) review punch
out holes on page 1.
Slide top cover (C) into slots on plenum box (A) and
secure using one M5 x 10 mm phillips screws (D)
as shown below.
C
A
D
