Page 8

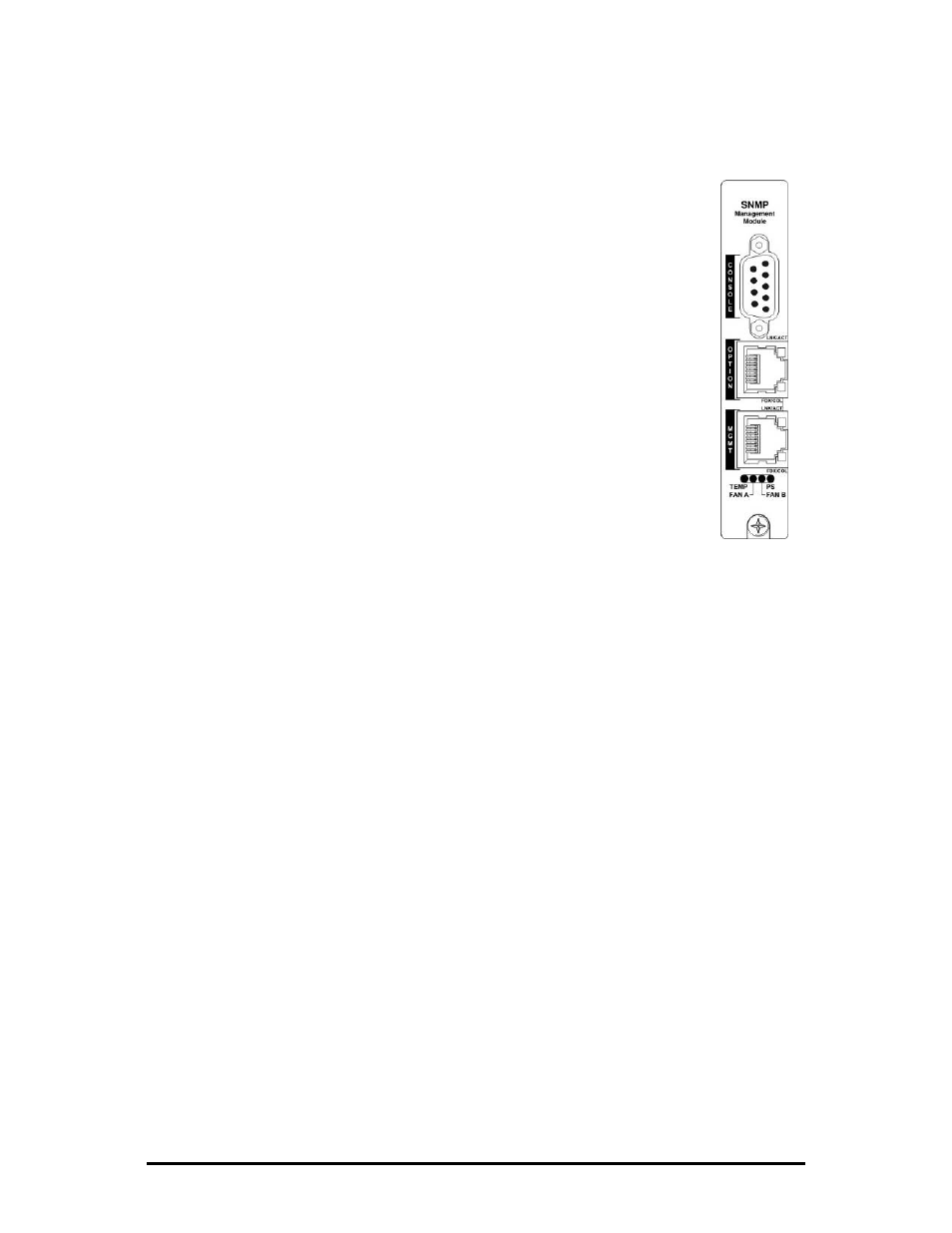

SNMP Management Module LEDs

The SNMP Management Module features several LEDs. The LED functions are:

LNK/ACT

FDX/COL

TEMP

FAN A / FAN B

Glows green when a link is established on port.
Blinks green when data activity occurs.

Glows yellow when port is in Full-Duplex mode.
Blinks yellow when port is operating in Half-
Duplex mode and collisions occur.

Glows yellow when temperature of unit surpasses a
user-defined level.

Glows yellow when one module malfunctions.

Glows yellow when a fan malfunctions.

Installing the iMediaChassis/20

Install the chassis first before installing any modules into an iMediaChassis. When
installing the chassis, be sure to observe the following precautions to prevent
electrical or mechanical damage:

1. Protect the chassis from exposure to sunlight and electrical or magnetic fields.

2. Ensure that the equipment rack remains stable, even with the addition of the

chassis and its associated cabling.

To install 20 -slot Rackmount chassis:

1. Have four #10 screws and four clip nuts available (hardware may vary

depending on rack type). The rest of the hardware is supplied with the unit.

2. Locate a suitable location in the rack for installation and secure the clip-nuts

onto the mounting rails. Use screws to attach the chassis to the rack.

3. Plug the chassis into a reliable, filtered power source.

4. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack environment may be greater than
room ambient. Therefore, consideration should be given to installing the
equipment in an environment compatible with the maximum ambient
temperature (Tma) specified by the IMC Networks.
