DIN RAIL MOUNTING
Install the unit on a standard 35mm Din-Rail. Recess the 7018TX unit to allow at least 3” of horizontal
clearance for copper cable bend radius. Recess the 7018FX2 unit to allow at least 5” of horizontal clearance
for fiber cable bend radius. There should be at least 4” of clearance on both the top and bottom of the unit
to allow proper ventilation.

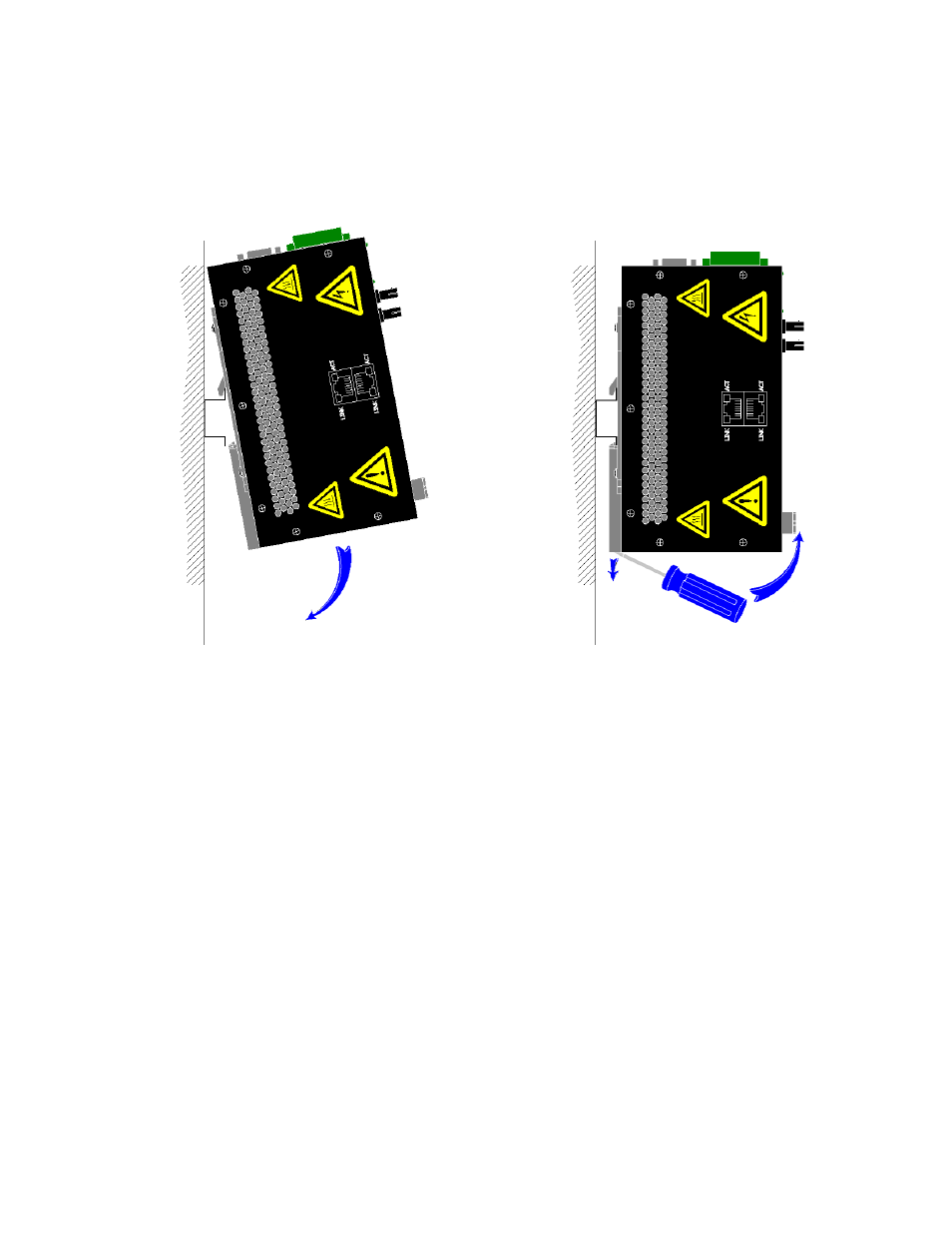

To mount the unit to the 35mm din-rail, place top
edge of the bracket on the back of the unit against
the din-rail at an upward angle. Lower the bottom
of the unit until it snaps into place.
Note: When mounting the switch in the vertical
position, you must orientate the power connector
to the top as shown above for proper ventilation.
To remove the unit from the 35mm din-rail, place a flat
head screwdriver into the release clip at the bottom of
the unit, and push down on the clip until it disengages
from the bottom of the unit from the din-rail. Lift the
bottom of the unit up at an approximate 45° upward
angle to completely remove the unit.
