(Revised 8/3/2009) Page 136 of 138
KEY SPECIFICATION
Switch Properties
Number of MAC Addresses:
8,000
Aging Time: Programmable
Latency Type: 2.6 µs
Switching Method: Store & Forward
Physical
Height:
2.27” / 5.76cm
Width: 8.25” / 20.95cm
Depth: 4.75” / 12.06cm
Weight (max): 3.3 lbs / 1.49 kg
Din-Rail mount: 35mm
Electrical
Redundant Input Voltage: 10-30VDC (Regulated)
Input Current (max): 62 0mA max. @ 24VDC
-HV (High Voltage Option)
Redundant Input Voltage: 40-160VDC (Regulated)
Input Current (max): 160 mA max. @ 124VDC
Input Ripple:
Less than 100 mV
N-TRON Power Supply: NTPS-24-1.3 (1.3 Amp@24VDC) (NOTE: Not appropriate for use with
M12, POE, and HV models.)
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95%
(Non Condensing)
Operating Altitude 0 to 10,000 ft.
Shock and Vibration
(bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic:
50g, 5-200Hz,Triaxial
Reliability
MTBF: >2 Million Hours
Warranty: 3 years from the date of purchase.
Connectors

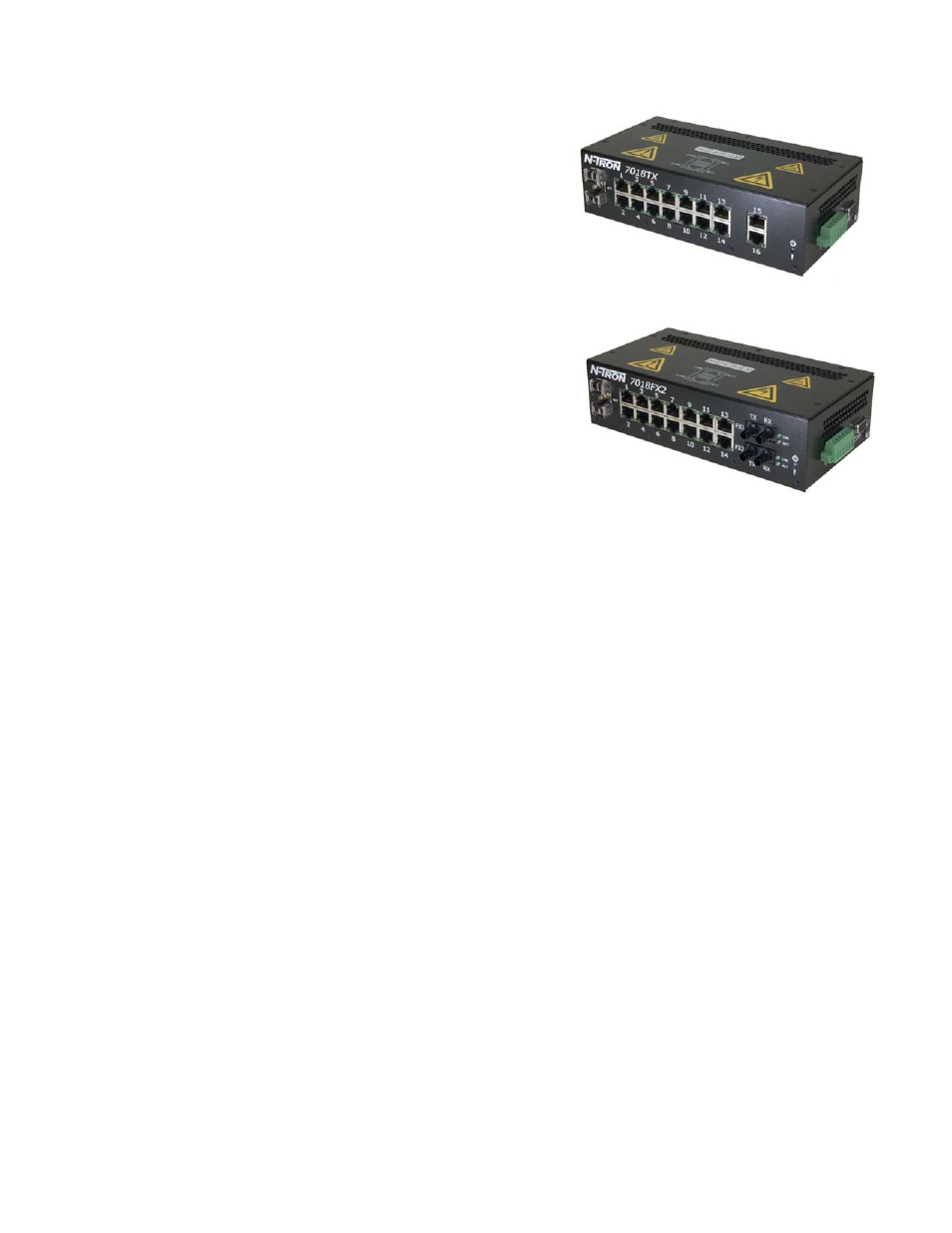

10/100BaseTX: (16) RJ-45 Copper Ports (7018TX)
(14) RJ-45 Copper Ports (7018FX(E)2)
100BaseFX: (2) SC or ST Duplex Ports (7018FX(E)2)
Optional SFP Ports:
1000BaseT:
Up to two (2) RJ-45 Gigabit Copper Ports (optional)
1000BaseSX: Up to two (2) LC Duplex Gigabit Fiber Ports (optional)
Recommended Wiring Clearance:
Front: 4" (10.16 cm)
Side: 1" (2.54 cm)
Network Media
10BaseT:
>Cat3 Cable
100BaseTX: >Cat5 Cable
1000BaseT: >Cat5e Cable
minimum length : 1 meter
maximum length : 100 meters
100BaseFX, 1000BaseSX
Multimode:
50-62.5/125µm
100BaseFXE, 1000BaseLX
Singlemode:
7-10/125µm
