(Revised 8/3/2009) Page 15 of 138
SERIAL INTERFACE

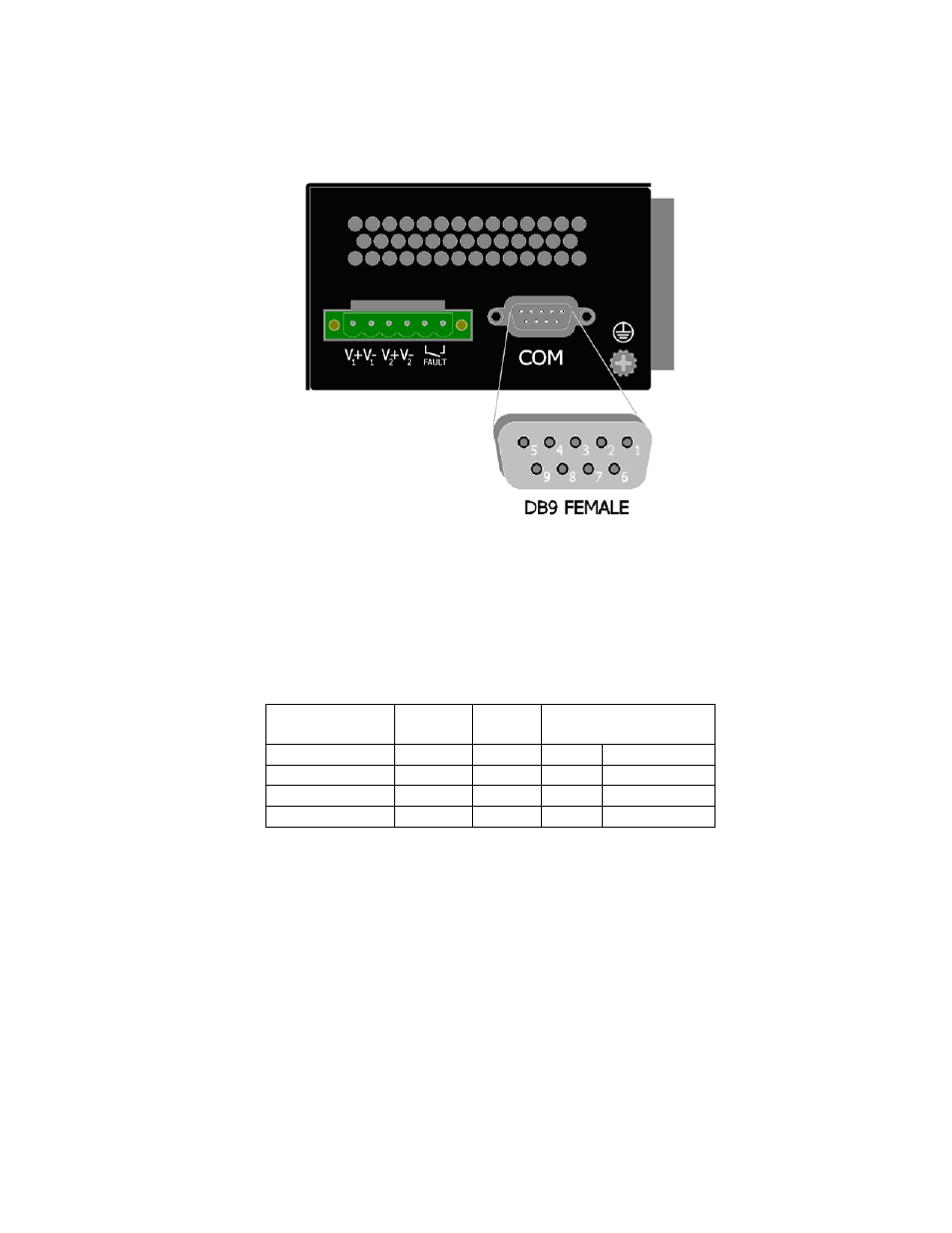

The 7018 Series switches provide an EIA-232 interface accessed via a 9-pin female connector (labeled
‘COM’ on the unit). This is used to access the Command Line Interpreter (CLI). The pin-outs are shown
below:
Serial Cable
Connect the serial COM port of your PC and the 7018 Series Switch using a standard straight through serial
cable. You will require a cable with a 9-pin or 25-pin sub-D female connector for the PC end, and a 9-pin
male sub-D connector for the 7018 Series end.
The following table shows the pin-out and the connections for both types of cable:
PC Port 25-Pin 9-Pin 7018 series
Female Female 9-Pin Male
Signal Name Pin # Pin # Pin # Signal Name
TXD 2 3 3 RXD
RXD 3 2 2 TXD
GND 7 5 5 GND
Standard straight through serial cables are readily available from a variety of computer stores.
HyperTerminal
The following configuration should be used in HyperTerminal:
Port Settings:
115200
Data Bits: 8
Parity: NONE
Stop bits: 1
Flow Control: NONE
