Administration – Fault

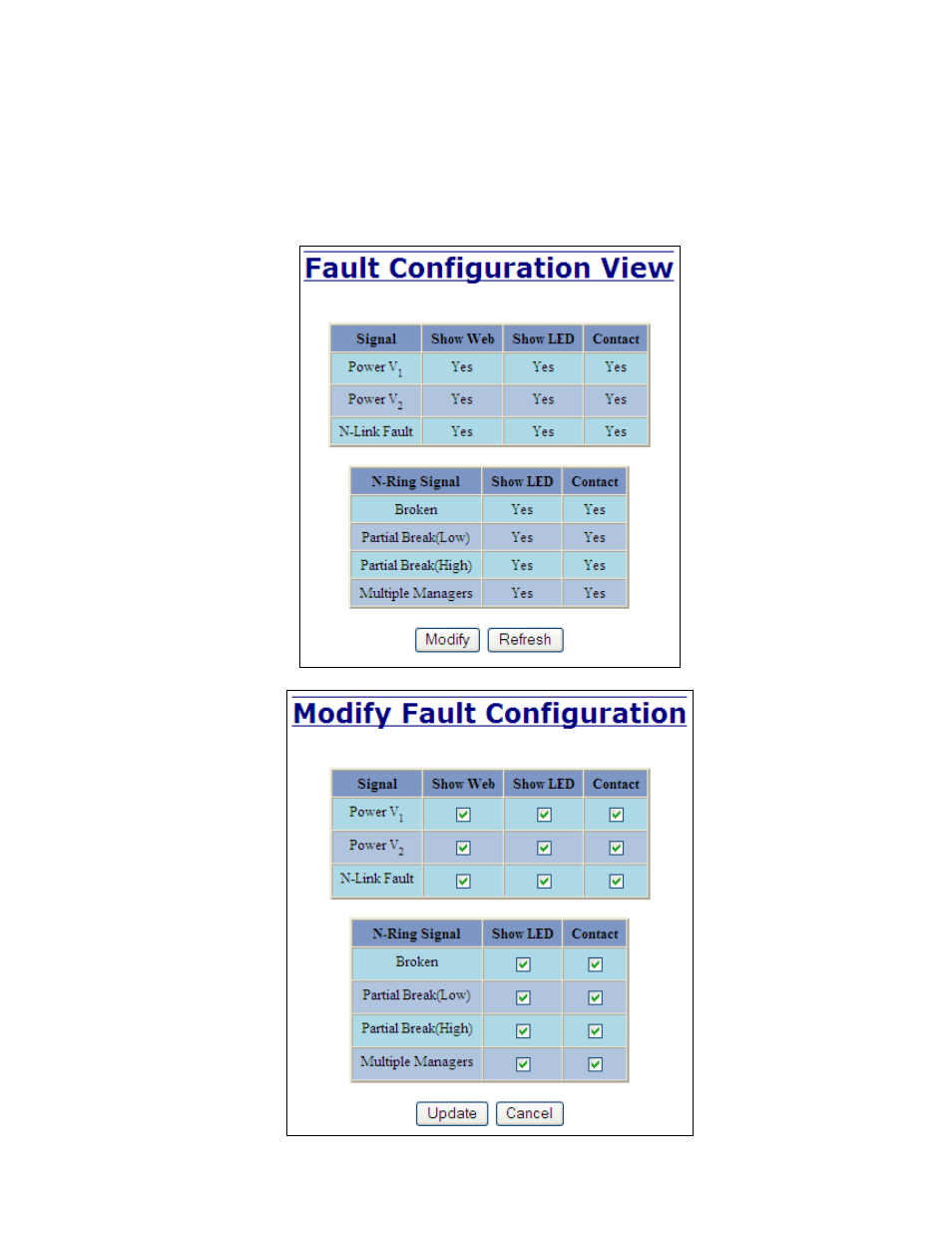

The Fault tab under the Administration category provides configurable selections indicating the way to
notify when a Power, N-Link or N-Ring Signal fault occurs. Power signal faults consist of V
1
and V
2.
N-
Link Faults can also be set for notification. The Power and N-Link notifications may consist of any
combination of the options: Show Web, Show LED, and Contact. N-Ring signal faults consist of: Broken,
Partial Break (Low), Partial Break (High), and Multiple Managers.
