Example of the OpenVPN tunnel configuration:

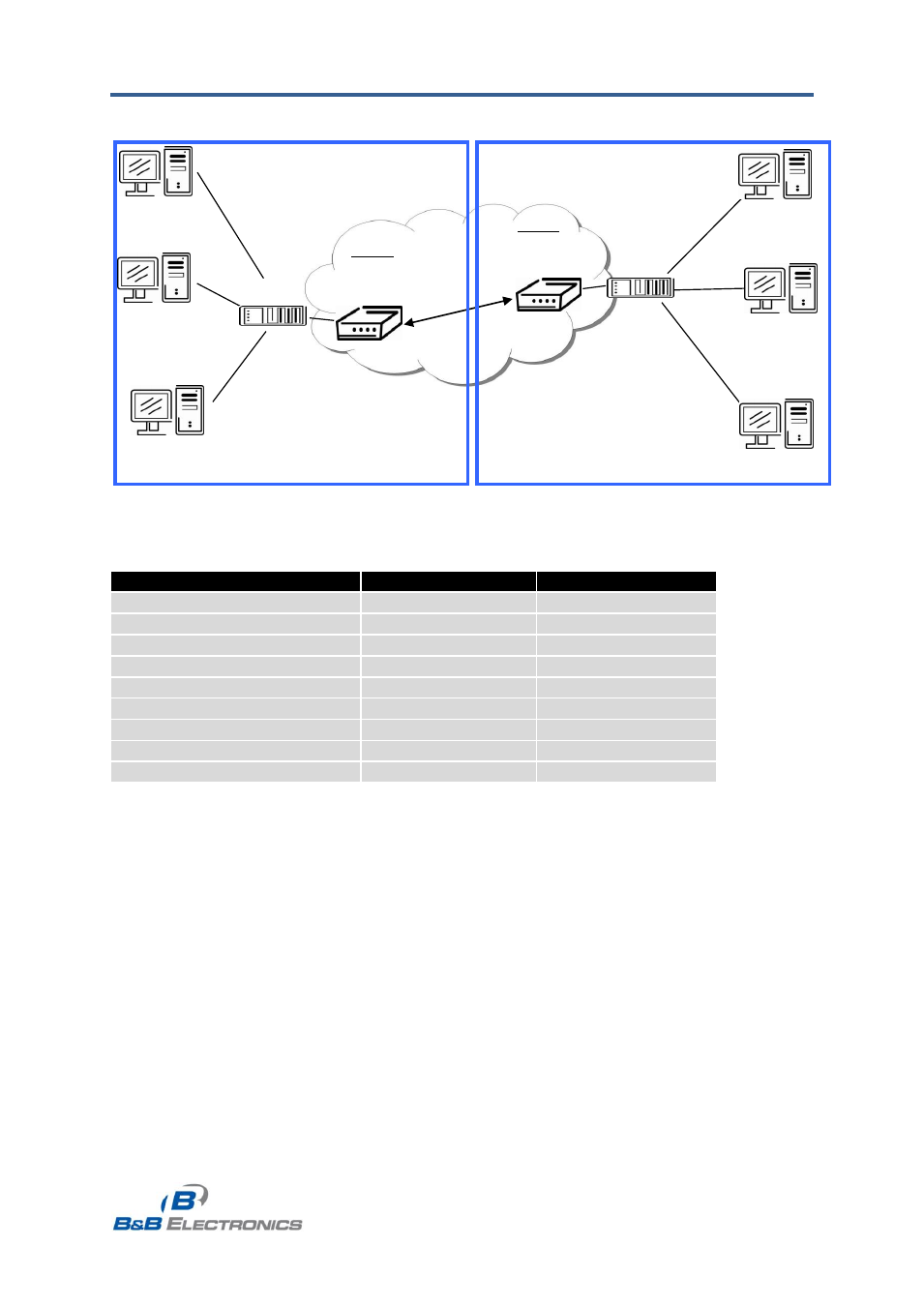

Fig. 31: Topology of example OpenVPN configuration
OpenVPN tunnel configuration:
Configuration A B
Protocol UDP UDP
UDP Port 1194 1194
Remote IP Address 10.0.0.2 10.0.0.1
Remote Subnet 192.168.2.0 192.168.1.0
Remote Subnet Mask 255.255.255.0 255.255.255.0
Local Interface IP Address 19.16.1.0 19.16.2.0
Remote Interface IP Address 19.16.2.0 19.18.1.0
Compression LZO LZO
Authenticate mode none none
Table 28: Example OpenVPN configuration
Examples of different options for configuration and authentication of OpenVPN can be
found in the OpenVPN tunnel configuration manual.
192.168.1.4
192.168.1.3
192.168.1.2 192.168.2.2
192.168.2.3
192.168.2.4
Router A
ppp0 10.0.0.1
192.168.1.0
tun0 19.16.1.0
Router B
ppp0 10.0.0.2
192.168.2.0
tun 0 19.16.2.0
Default Gateway 192.168.1.1 Default Gateway 192.168.2.1
A B
Switch
Switch
