Rainbow Electronics MG260 User Manual
Page 54
MG260 Product Specification
This document is the sole and exclusive property of FLYFOT. Not to be distributed or divulged without prior written
agreement.

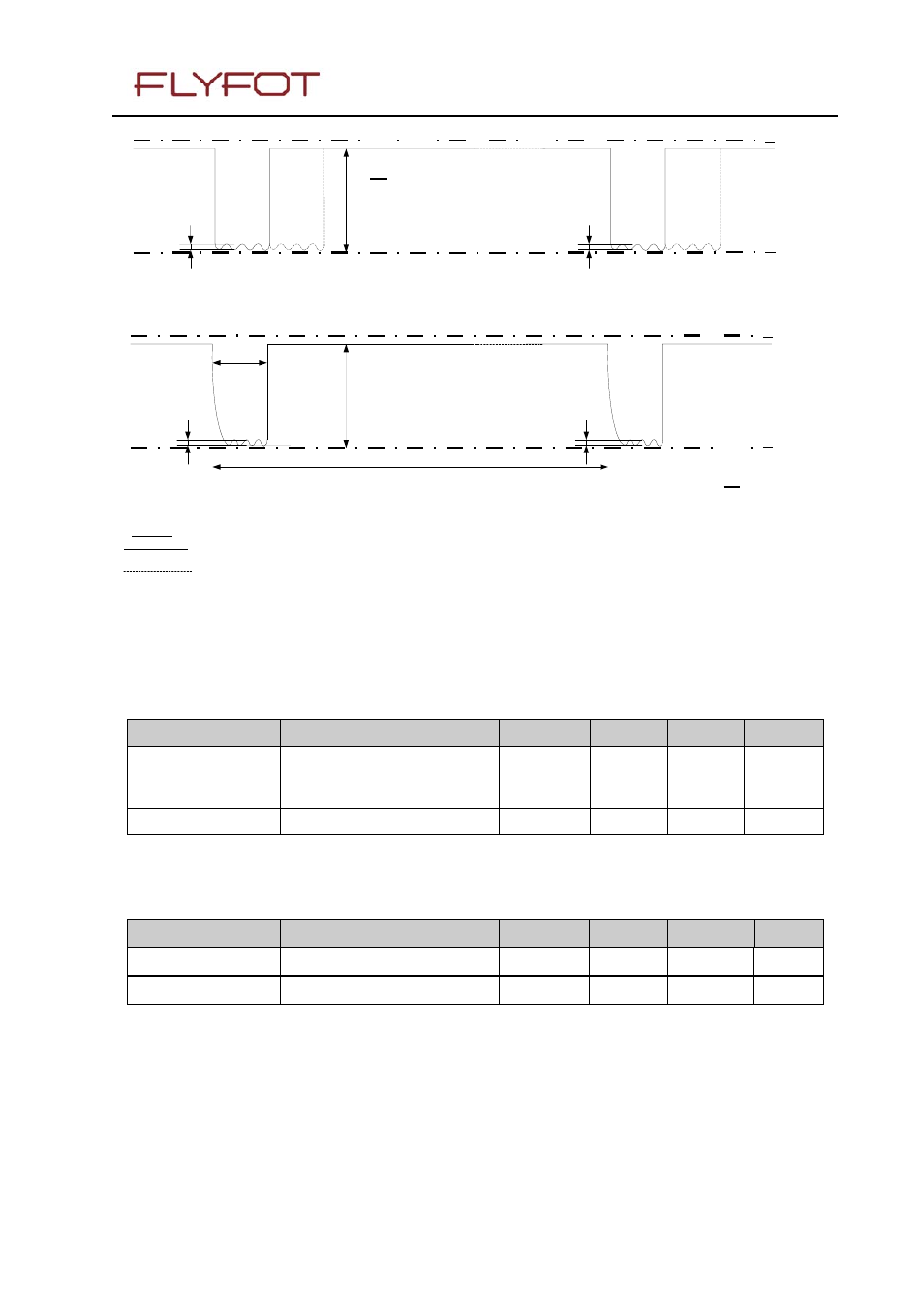

Vmax
VBATT
Uripp
Uripp
Vmin
VBATT with capacitive effect on power supply
T=577µs
Vmax
VBATT
Uripp
Uripp
Vmin
T = 4.615 ms
Legend:
In GSM or GPRS class 2 modes
In GPRS class 10 mode
When supplying the module with a battery, the total DC impedance
(battery+protections + PCB traces) should be <150 mOhms.
2.9.1.3 GPS antenna external supply (GPS_VANT)
Parameter
Condition
Min
Typ
Max
Unit
Input voltage
2.8
3.3
or
5
5.5
V
Input Current
GPS_VANT=3.3 or 5 V
30
50
mA
2.9.1.4 2.8 V Power supply for external digital devices (VCC)
Parameter
Condition
Min
Typ
Max
Unit
Ouput voltage
I=250mA
2.74
2.8
2,85
V
Output Current
300
mA
