48
3597J–DFLASH–4/08
AT45DB321D

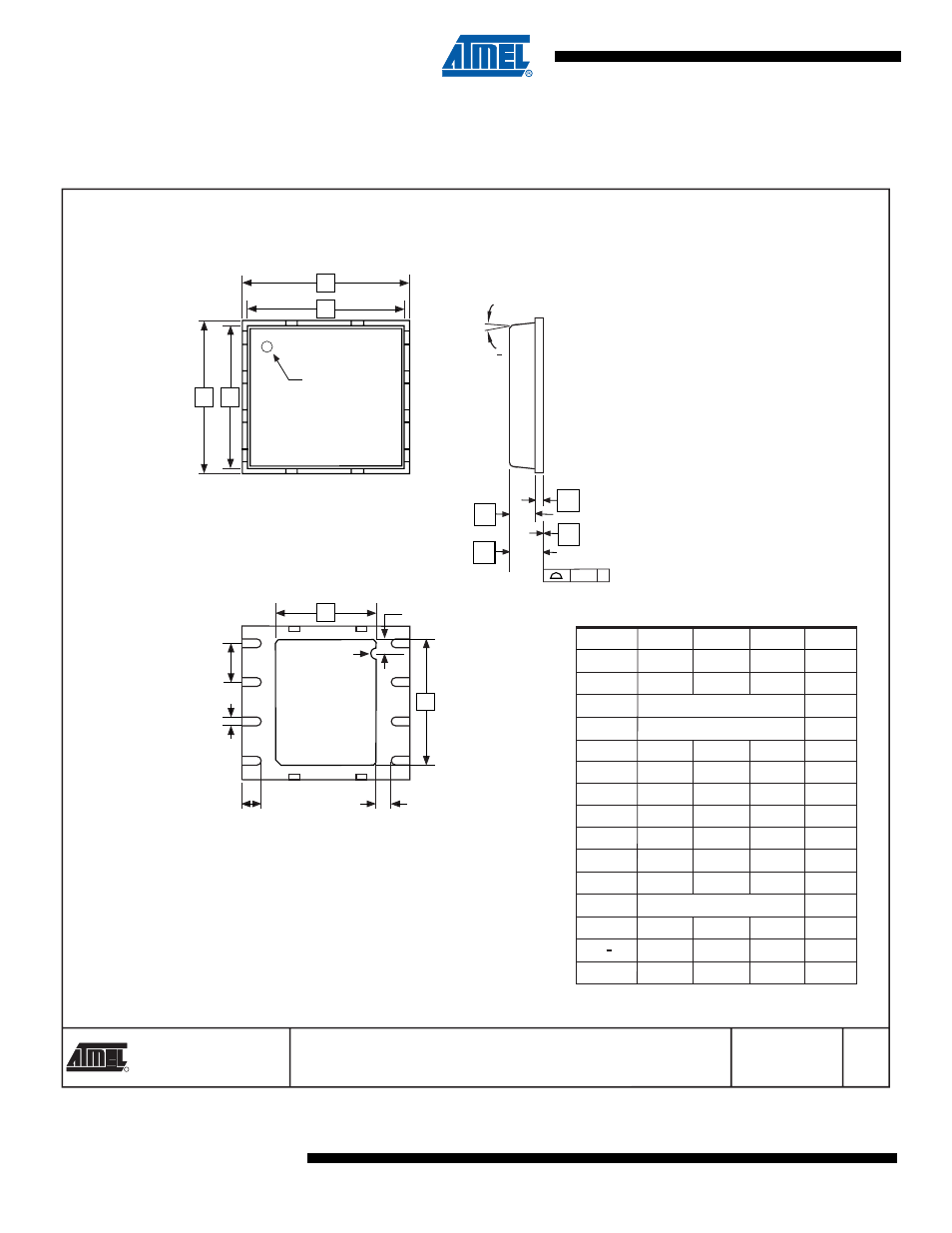

27. Packaging Information
27.1 8M1-A – MLF (VDFN)
2325 Orchard Parkway
San Jose, CA 95131
TITLE DRAWING NO.
R
REV.
8M1-A, 8-pad, 6 x 5 x 1.00 mm Body, Very Thin Dual Flat Package
No Lead (MLF)
C 8M1-A
9/8/06
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
A – 0.85 1.00
A1 – – 0.05
A2 0.65 TYP
A3 0.20 TYP
b 0.35 0.40 0.48
D 5.90 6.00 6.10
D1 5.70 5.75 5.80
D2 3.20 3.40 3.60
E 4.90 5.00 5.10
E1 4.70 4.75 4.80
E2 3.80 4.00 4.20
e 1.27
L 0.50 0.60 0.75
– – 12 o
K 0.25 – –
Pin 1 ID
TOP VIEW
Pin #1 Notch
(0.20 R)
BOTTOM VIEW
D2
E2
L
b
D1
D
E1 E
e
A3
A2
A1
A
0.08 C
0
SIDE VIEW
0
K
0.45
