Data modes – Rainbow Electronics AT90LS4433 User Manual
Page 50

50
AT90S/LS4433
1042G–AVR–09/02
pins are inputs. When SS is driven high, externally all pins are inputs and the SPI is
passive, which means that it will not receive incoming data. Note that the SPI logic will
be reset once the SS pin is brought high. If the SS pin is brought high during a
transmission, the SPI will stop sending and receiving immediately and both data
received and data sent must be considered as lost.
Data Modes
There are four combinations of SCK phase and polarity with respect to serial data,
which are determined by control bits CPHA and CPOL. The SPI data transfer formats
are shown in Figure 38 and Figure 39.

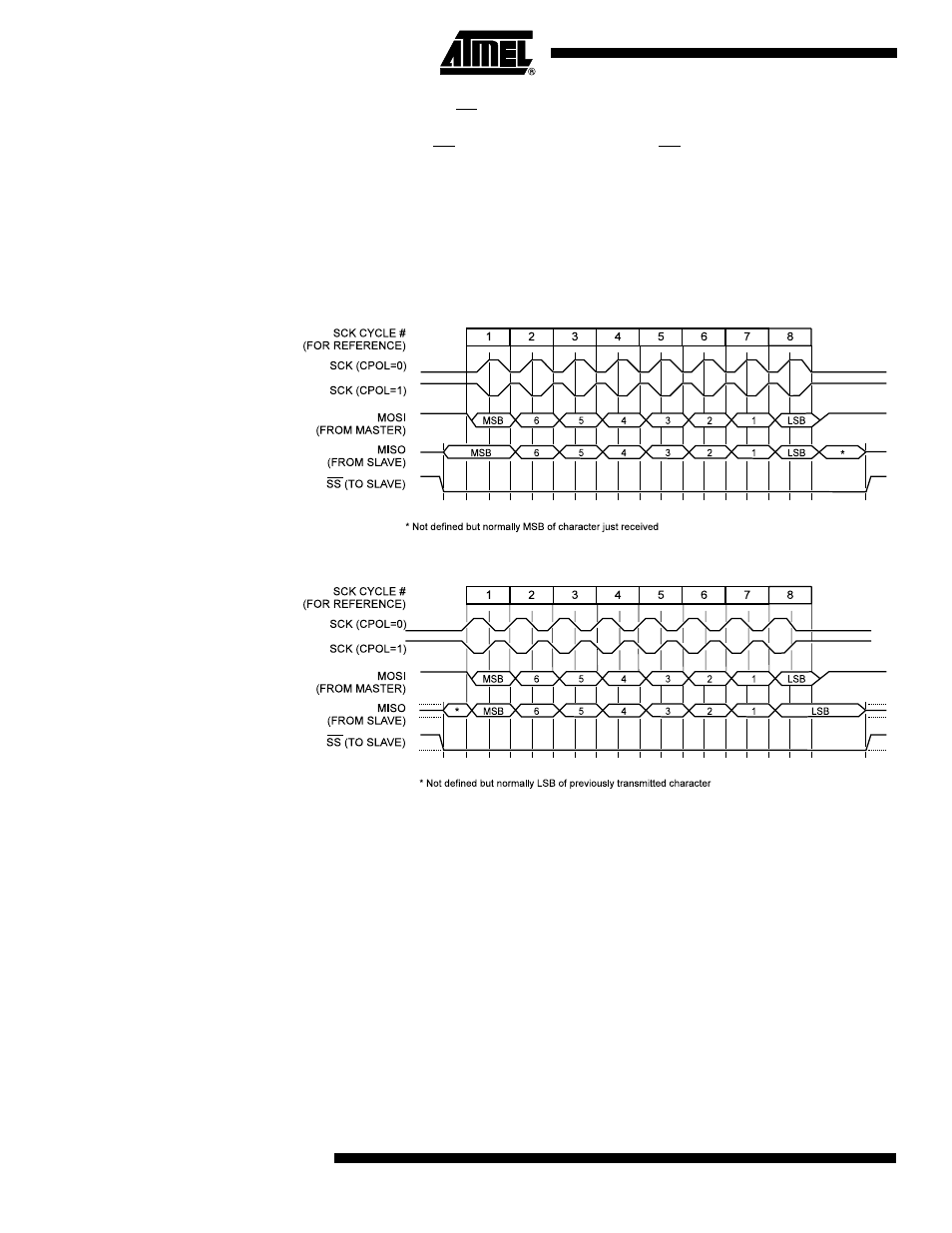

Figure 38. SPI Transfer Format with CPHA = 0 and DORD = 0
Figure 39. SPI Transfer Format with CPHA = 1 and DORD = 0
