Pin Configuration

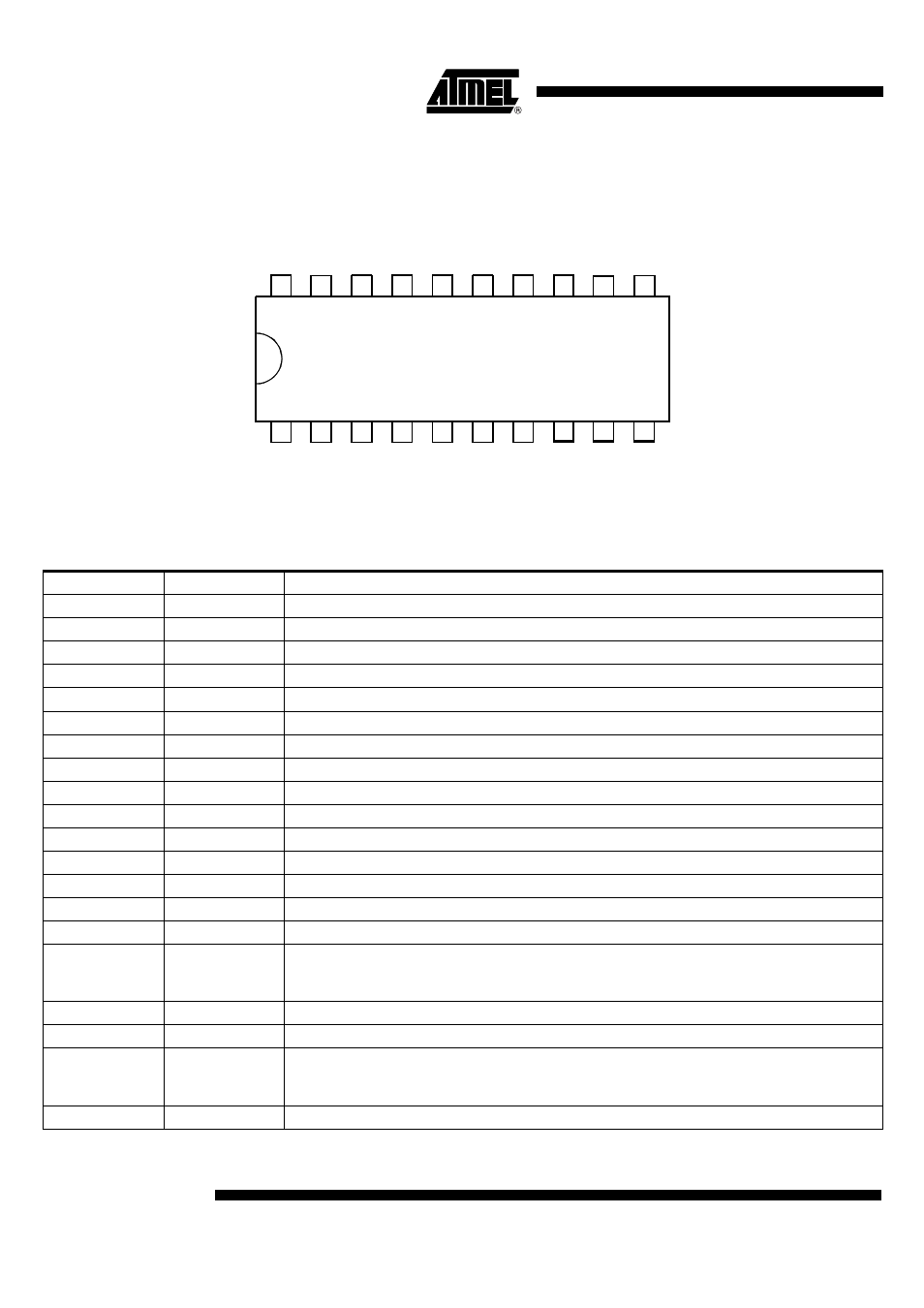

Figure 2. Pinning SO20 and SSO20
Pin Description
Pin Symbol Function
1 BR_0 Baud rate select LSB
2 BR_1 Baud rate select MSB
3 CDEM Lower cut-off frequency data filter
4 AVCC Analog power supply
5 AGND Analog ground
6 DGND Digital ground
7 MIXVCC Power supply mixer
8 LNAGND High-frequency ground LNA and mixer
9 LNA_IN RF input
10 n.c. Not connected
11 LFVCC Power supply VCO
12 LF Loop filter
13 LFGND Ground VCO
14 XTO Crystal oscillator
15 DVCC Digital power supply
16 MODE
Selecting 433.92 MHz /315 MHz
Low: 315 MHz (USA)
High: 433.92 MHz (Europe)
17 RSSI Output of the RSSI amplifier
18 TEST Test pin, during operation at GND
19 ENABLE
Selecting operation mode
Low: sleep mode
High: receiving mode
20 DATA Data output
