Page 18
MAX7057
300MHz to 450MHz Frequency-Programmable
ASK/FSK Transmitter
18
______________________________________________________________________________________
MAX7057
C12
C13
C11
16
DVDD
15
GPO
14
DGND
13
DIN
12
ENABLE
11
AGND
GPO
DIN
ENABLE
SCLK
SDI
CS
V
DD
C6
C7
C4
C5
C2
7
PAVDD
V
DD
C9
C8
C15
C14
XTAL1
Y1
10
C10
XTAL2
9
V
DD
AVDD
8
R1
L2
6
ROUT
L1
C1
5
PAOUT
C3
RF
OUT
4
PAGND
3
SCLK
CS
1
2
SDI

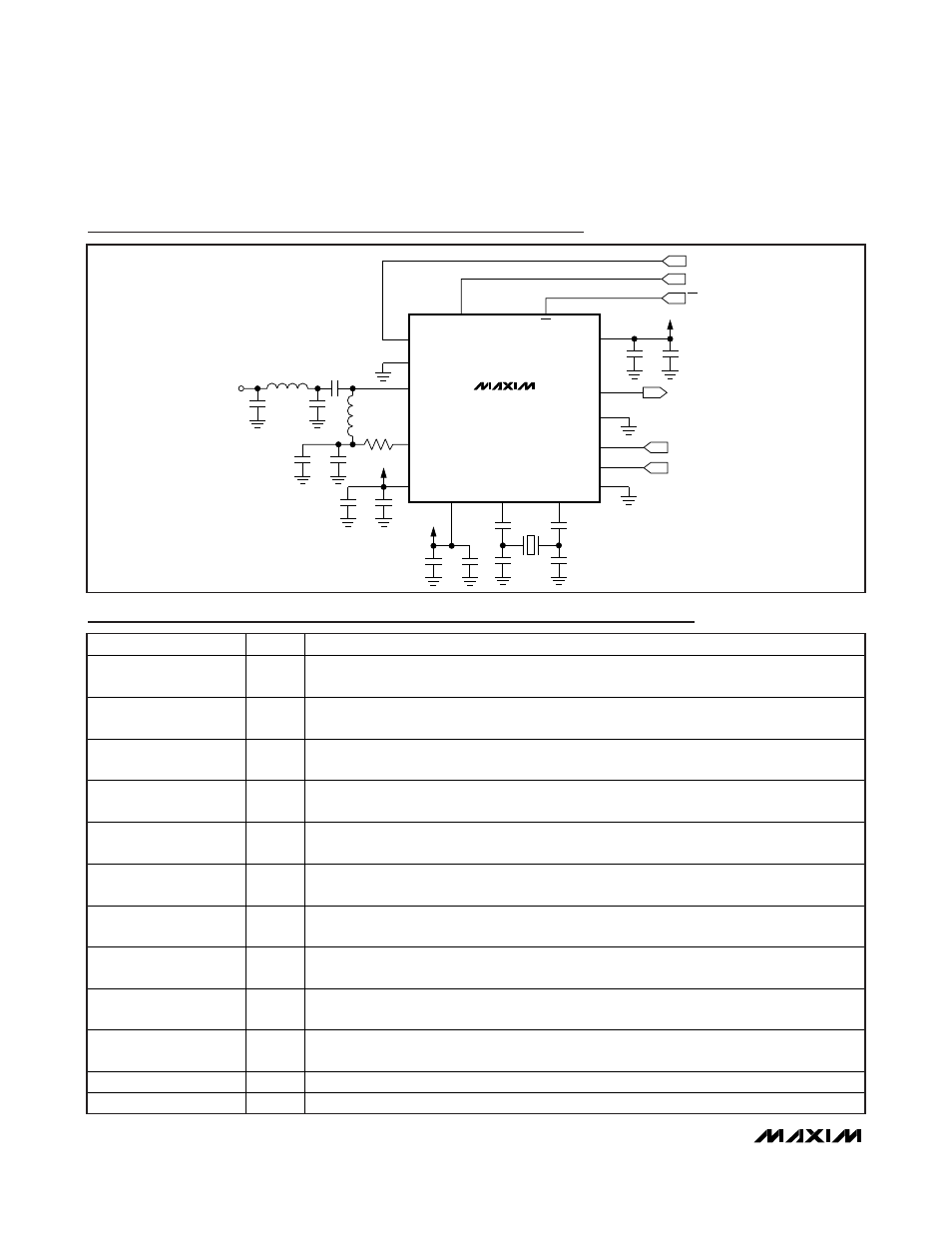

Typical Application Circuit
Component List
DESIGNATION
QTY
DESCRIPTION
C1, C2
1
10pF ±5%, 50V C0G ceramic capacitor (0603)
Murata GRM1885C1H100J
C3
1
6.8pF ±5%, 50V C0G ceramic capacitor (0603)
Murata GRM1885C1H6R8J
C4, C7
2
220pF ±5%, 50V C0G ceramic capacitors (0603)
Murata GRM1885C1H221J
C5
1
680pF ±5%, 50V C0G ceramic capacitor (0603)
Murata GRM1885C1H681J
C6, C9, C12
3
10nF ±10%, 50V X7R ceramic capacitors (0603)
Murata GRM188R71H103K
C8, C13
2
100nF ±10%, 50V X7R ceramic capacitors (0603)
Murata GRM188R71H104K
C10, C11
2
100pF ±5%, 50V C0G ceramic capacitors (0603)
Murata GRM1885C1H101J
C14, C15
2
4pF ±5%, 50V C0G ceramic capacitors (0603)
Murata GRM1885C1H4R0C
L1
1
22nH ±5% wire-wound inductor (0603)
Murata LQW18AN22NJ00
L2
1
13nH ±5% wire-wound inductor (0603)
Murata LQW18AN13NJ00
R1
1
0
Ω resistor (0603)
Y1
1
16MHz crystal, Crystek 17466, Suntsu SCX284
