General Description
The MAX7393/MAX7394 precision silicon oscillators
replace crystals, ceramic resonators, and crystal oscillator
modules in systems with a +2.4V to +3.6V operating sup-
ply voltage range.
The MAX7393/MAX7394 consist of a temperature-com-
pensated precision oscillator with enable (MAX7394) or
autoenable (MAX7393). The MAX7393/MAX7394 are sup-
plied at specific frequencies, just like crystals and res-
onators. Output frequency accuracy is guaranteed to be
within ±0.25% (TDFN) and ±1.3% (µDFN) (0°C to +85°C)
and ±1.0% (TDFN) and ±1.8% (µDFN) over the -40°C to
+125°C temperature range.
The small size and robust operation of the MAX7393/
MAX7394 make them ideal for space-constrained or envi-
ronmentally demanding applications where high accura-
cy is required. The high accuracy of the MAX7393/
MAX7394 is ideal for use in USB applications, computers,
and white goods.
The MAX7393/MAX7394 are available in 6-pin, 3mm x
3mm TDFN and 2mm x 2mm µDFN packages. They are
specified for the -40°C to +125°C temperature range.
Applications
Features
♦ ±0.25% (TDFN) and ±1.3% (µDFN) Total Accuracy
for 0°C to +85°C
♦ ±1.0% (TDFN) and ±1.8% (µDFN) Total Accuracy
for -40°C to +125°C
♦ Resistant to Humidity and Vibration
♦ 12mA Operating Current (48MHz Version)
♦ 5ns Output Rise/Fall Time
♦ 40% to 60% Maximum Duty Cycle
♦ No External Components Required
♦ +2.4V to +3.6V Operation
♦ Available Factory-Set Frequencies from 922kHz to
48MHz
♦ Space-Saving TDFN and µDFN Surface-Mount
Packages
MAX7393/MAX7394
Precision Silicon Oscillators with
Enable or Autoenable
________________________________________________________________ Maxim Integrated Products 1
Ordering Information
19-3876; Rev 0; 5/06
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
PA R T * T EM P RA N G E
PIN -
PA C K A G E
PK G
C O D E
M A X7 3 9 3 ALT_ _+ - 40°C to + 125°C 6 µD FN L622- 1
M AX 7393ATT_ _+ - 40°C to + 125°C 6 TD FN T633- 1
M A X7 3 9 4 ALT_ _+ - 40°C to + 125°C 6 µD FN L622- 1
M AX 7394ATT_ _+ - 40°C to + 125°C 6 TD FN T633- 1
*The two-letter frequency suffix following the part number is found
in the Selector Guide.
+Denotes lead-free package.
Note: The MAX7394 is available in factory-set frequencies from
922kHz to 48MHz. The MAX7393 is available in factory-set
frequencies from 922kHz to 20MHz. There are 10 standard
frequencies (see the Selector Guide) with a required 2.5k order
increment. Nonstandard frequencies are also available with a
required 10k order increment. For nonstandard versions,
contact factory for availability and ordering information.
USB
CAN Nodes
Automotive Systems Computers
Handheld Products
White Goods
Selector Guide and Pin Configurations appear at end of
data sheet.

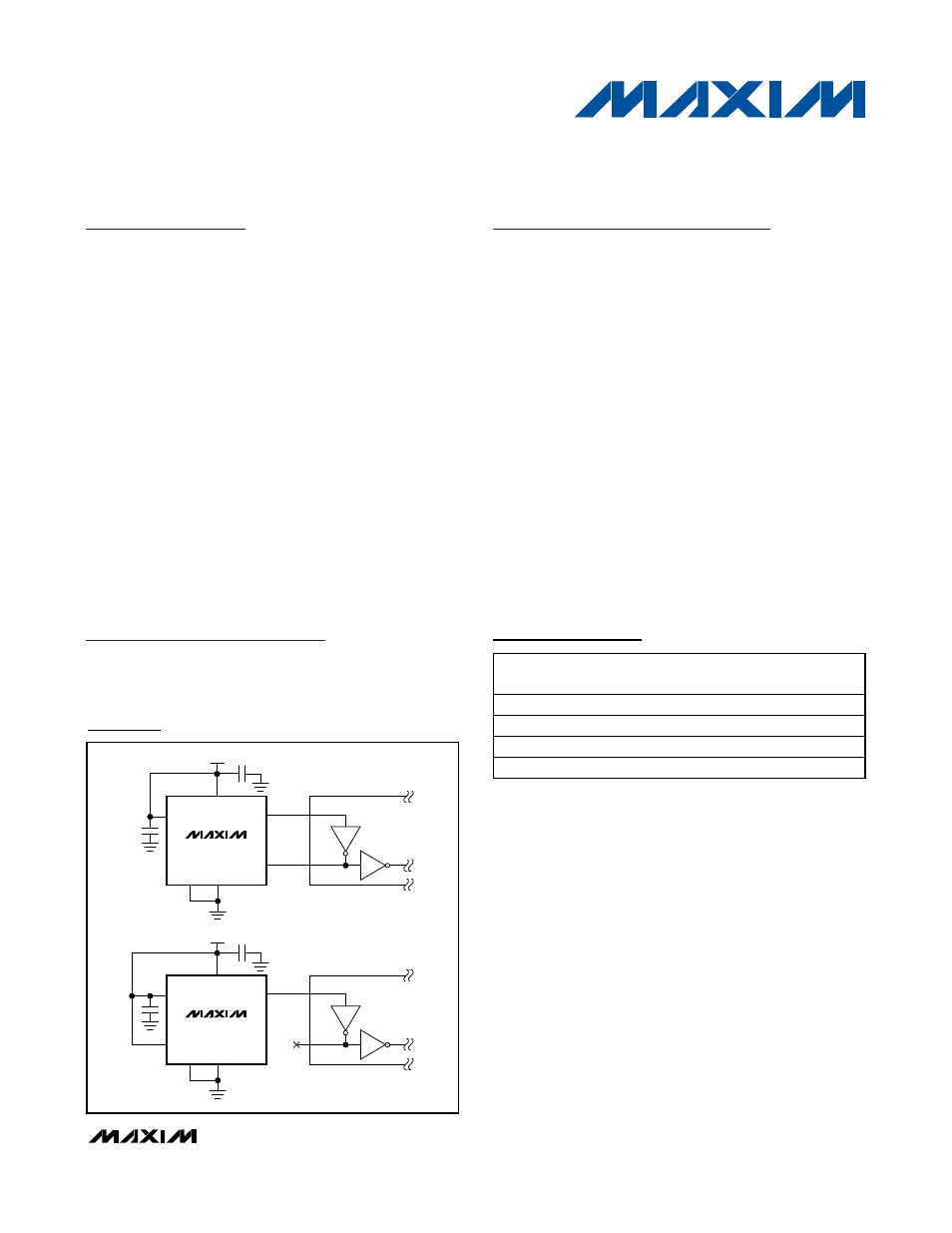

Typical Application Circuits
MAX7393
V CC2
2.4V TO 3.6V
6
2 3
GND I.C.
V CC
1
µC CLOCK
5 OSC1
CLKIN
4 OSC2
MAX7394
V CC2
2.4V TO 3.6V
6
2 3
ENABLE
GND I.C.
V CC
1
µC CLOCK
5 OSC1
OSC2 4
